Parking Assist Control Module: Service and Repair

66 20 508 - Removing and installing/replacing control unit (Park Distance Control)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove luggage compartment floor trim 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel
- Remove spare wheel.





Take off cover for control units (1).

Installation Note:
Make sure cover for control units (1) is correctly seated on locating pins (2).

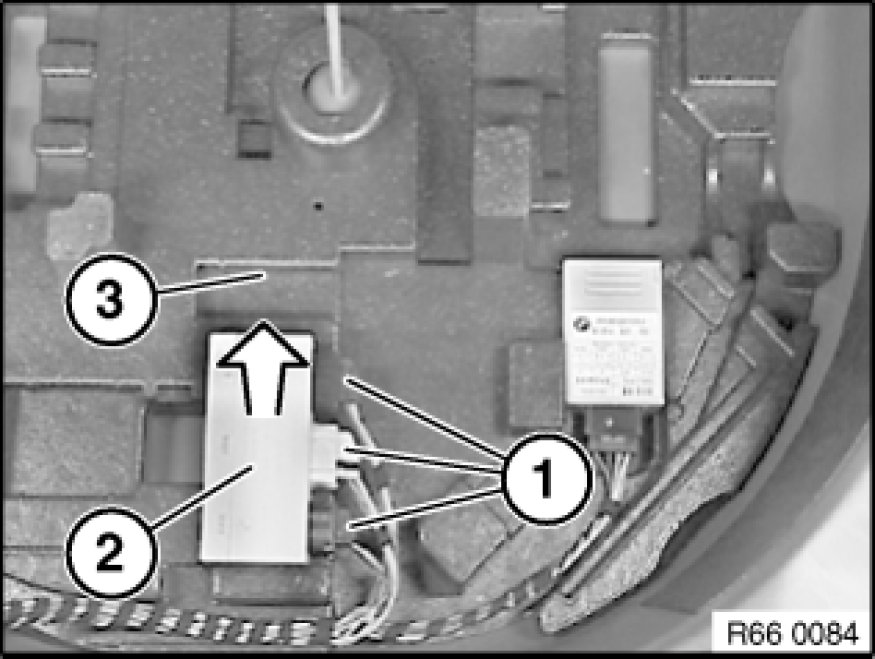

Unlock plug connections (1) and disconnect.
Lift control unit (2) out of mounting for control units (3).





Replacement:
Carry out programming/coding Programming and Relearning.
