Replacing Bulb For Front Left (or Right) Turning Light

63 99 160 - Replacing bulb for front left (or right) turning light





Warning!
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).





Turn cover (1) in counterclockwise direction and remove from headlight (2).

Installation Note:
Make sure cover (1) is correctly seated on headlight (2).

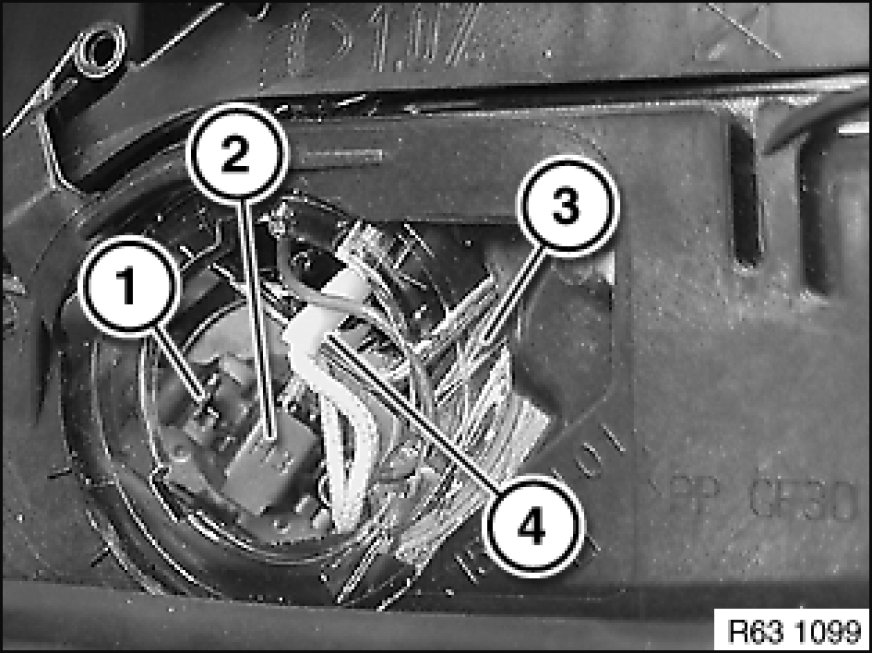

Release retaining clip (1) and feed bulb (2) out of headlight (3).
Disconnect plug connection (4).

Installation Note:
Make sure bulb (2) is correctly seated in headlight (3).
Note type of bulb.
