63 17 060 Removing and installing/replacing left or right front fog lamp (M aerodynamic kit)

63 17 060 - Removing and installing/replacing left or right front fog lamp (M aerodynamic kit)





Necessary preliminary tasks:
- Remove front underbody protection Removing and Installing / Replacing Front Underbody Protection





Release screws (1).
Remove fog lamp wheel arch cover (2).

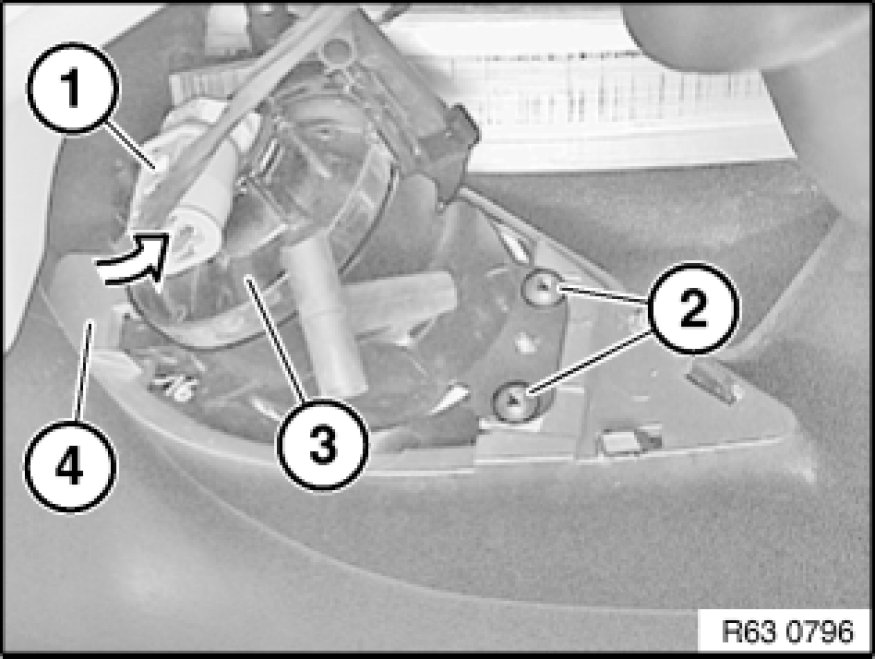

Disconnect plug connection (1).
Release screws (2). Tightening torque 63 17 1AZ [1][2]Fog/Driving Lamp.
Feed fog lamp (3) in direction of arrow out of mounting (4) and remove.





Replacement:
If necessary, remove bulb Service and Repair.
Adjust front fog lamps Adjustments.
