Replacing Left Engine Mount (N52/N52K/N53)




22 11 001 - Replacing left engine mount (N52/N52K/N53)





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine In Installation Position (N52, N53).
- Remove underbody protection.
- Remove left engine support arm Replacing Left Engine Support Arm (N52/N52K/N53).
- Observe safety instructions on raising the vehicle 00 .. ... Lifting Vehicle With A Lifting Platform.
- If necessary, remove steering gear cover at side





Pull vacuum hose (1) with angle out of engine mount.

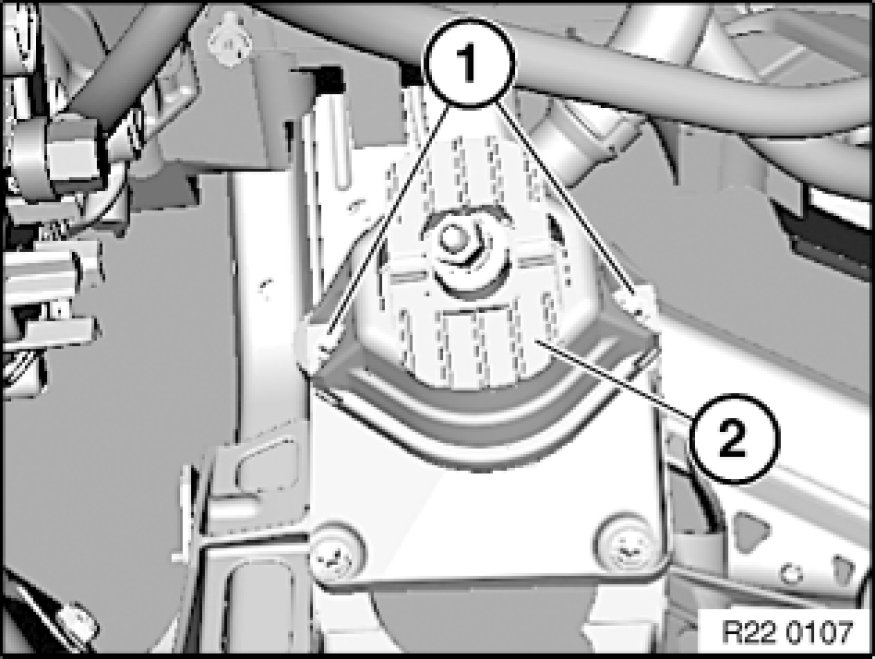

Release screws (1) and remove engine mount (2).
Tightening torque 22 11 4AZ Specifications.





Installation:
Lug (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount
- Even component number
Left engine mount
- Odd component number
