Home >> BMW >> 2008 >> 528xi AWD (E60) L6-3.0L (N52K) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Signal and Warning Functions >> Parking Aid >> Park Distance Control (PDC)

Park Distance Control (PDC)

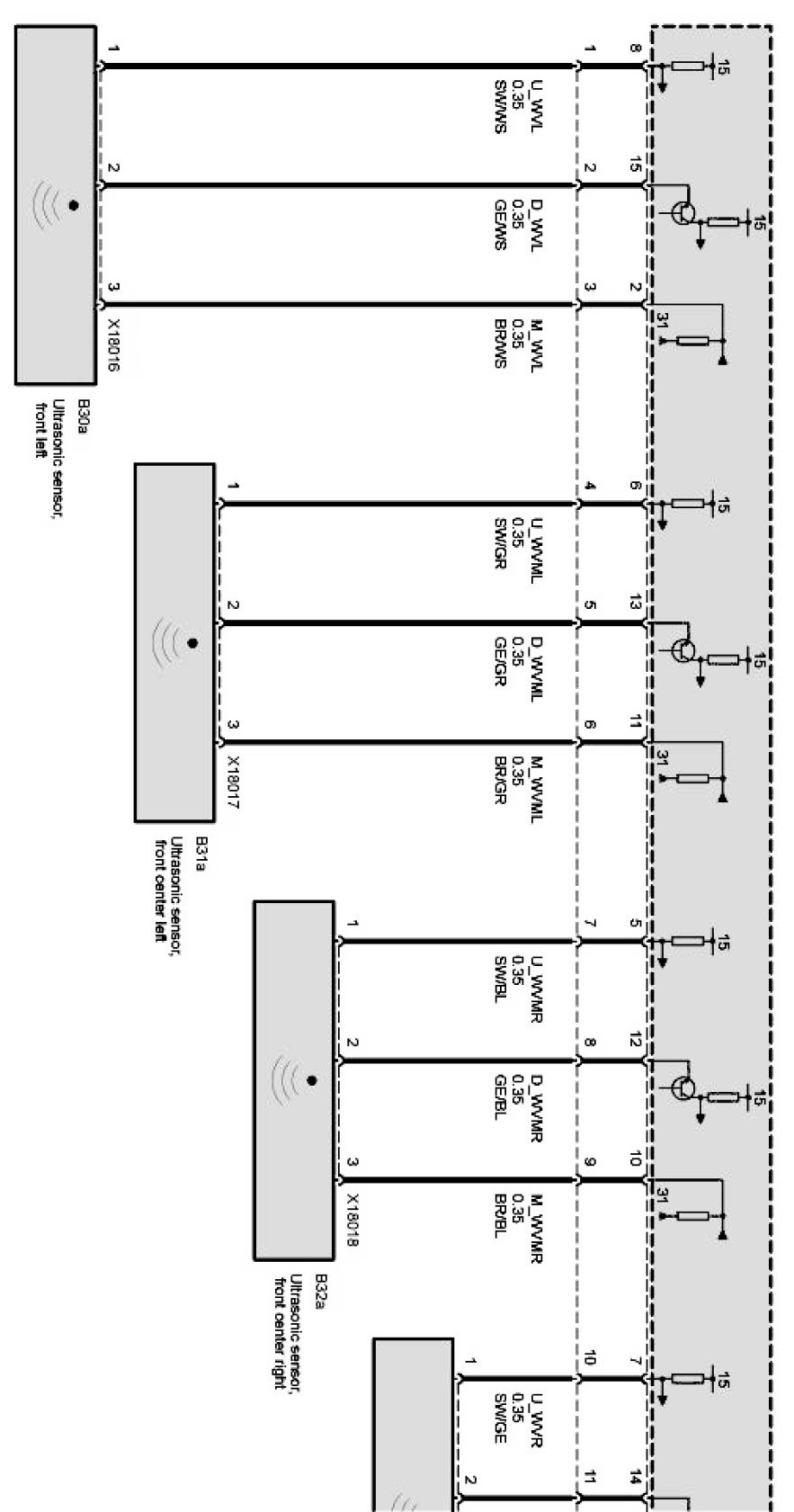

Park distance control (PDC) Part 1:



Park distance control (PDC) Part 2:



Park distance control (PDC) Part 3:
