Active Backrest Width, Driver's Side (ALBFA)
>>
Backrest Width Adjustment, Driver's Side (As of 09/05)
Backrest Width Adjustment, Driver's Side (As of 09/05)

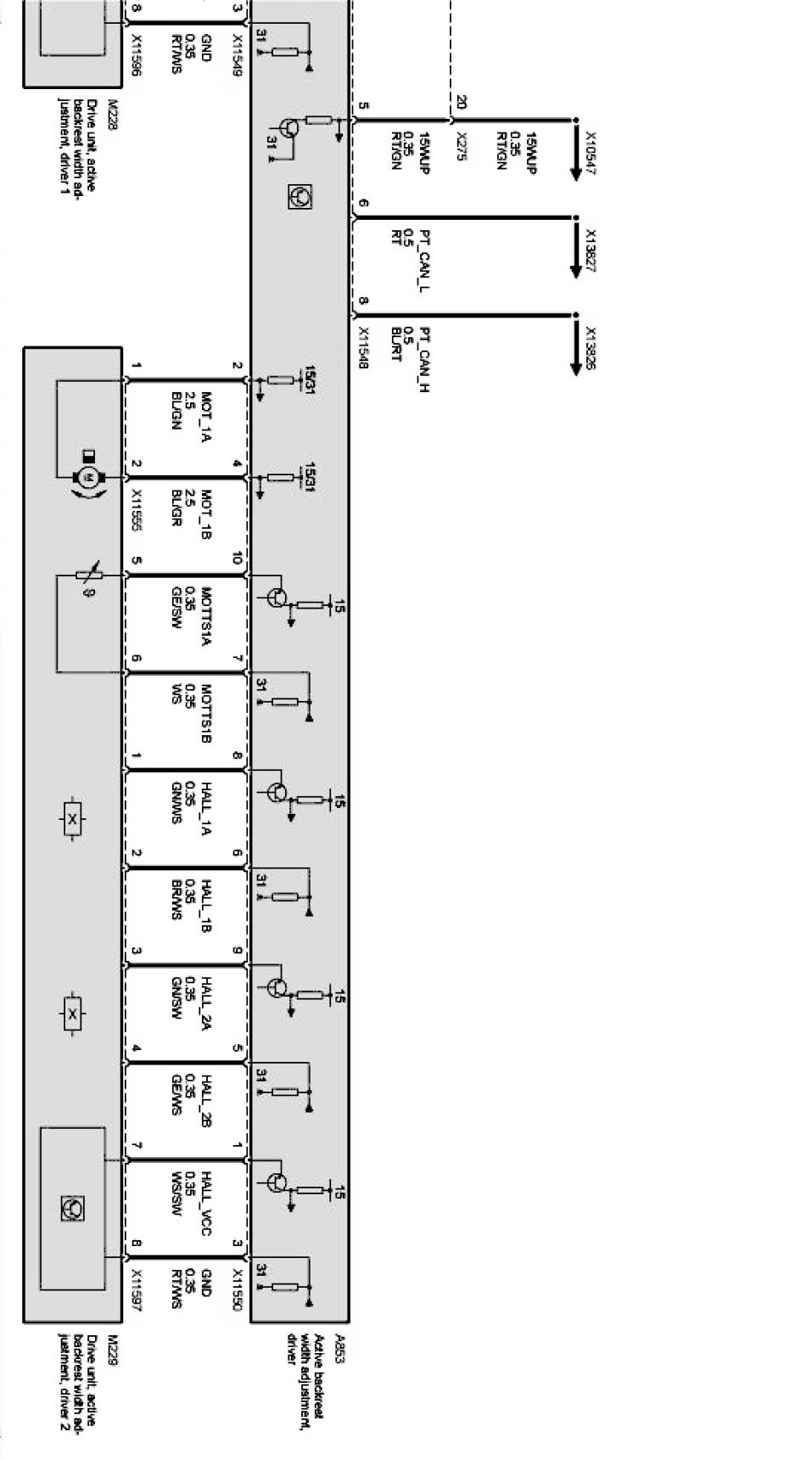

Backrest width adjustment, driver's side Part 1:

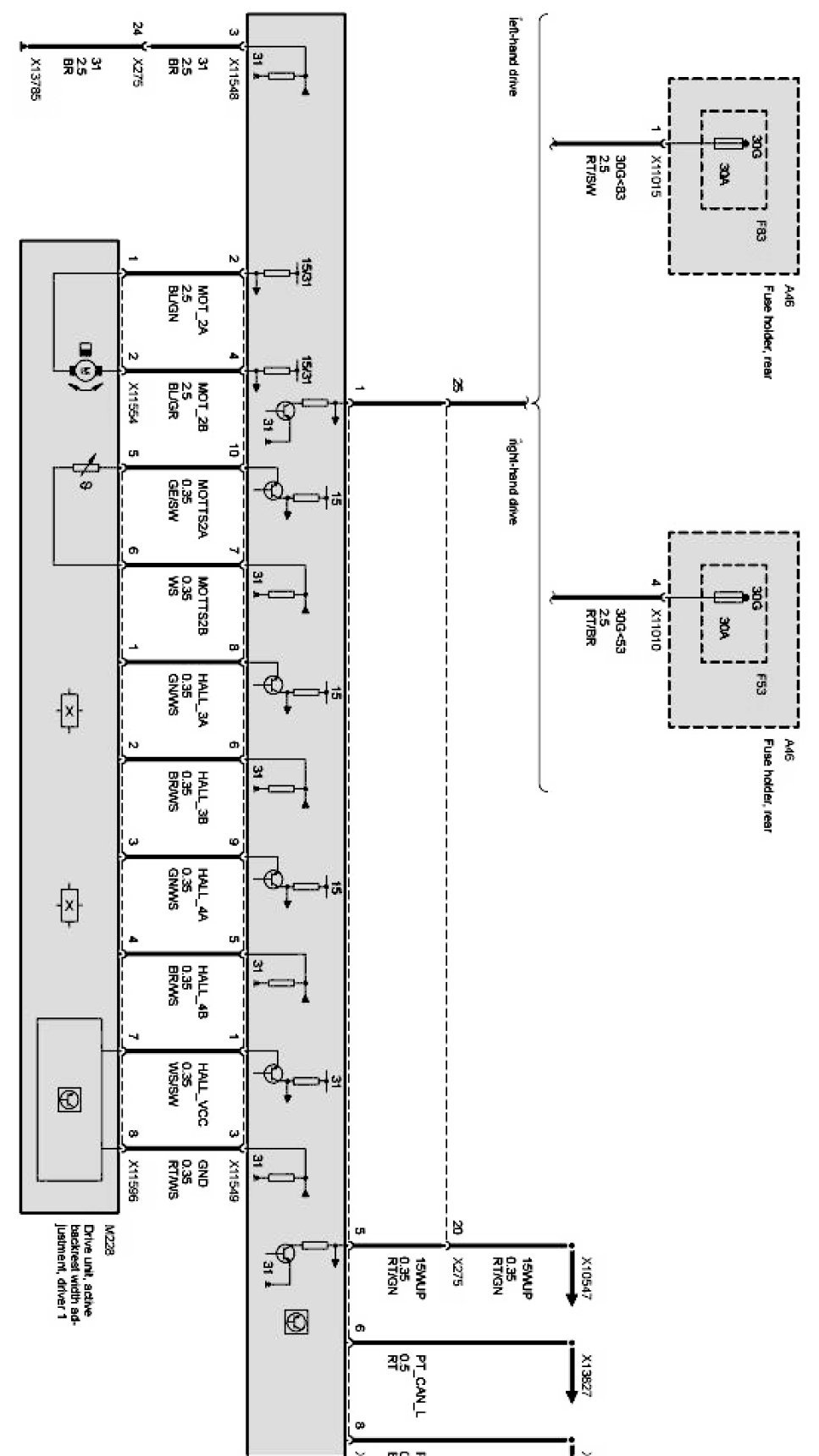

Backrest width adjustment, driver's side Part 2:
