Turning Light (LM2 AHL2 Light Module 2 With Adaptive Headlight 2 With Ahl Adaptive Directional Headlights,5 Series As of 03/07)

Low beam/high beam Part 1:

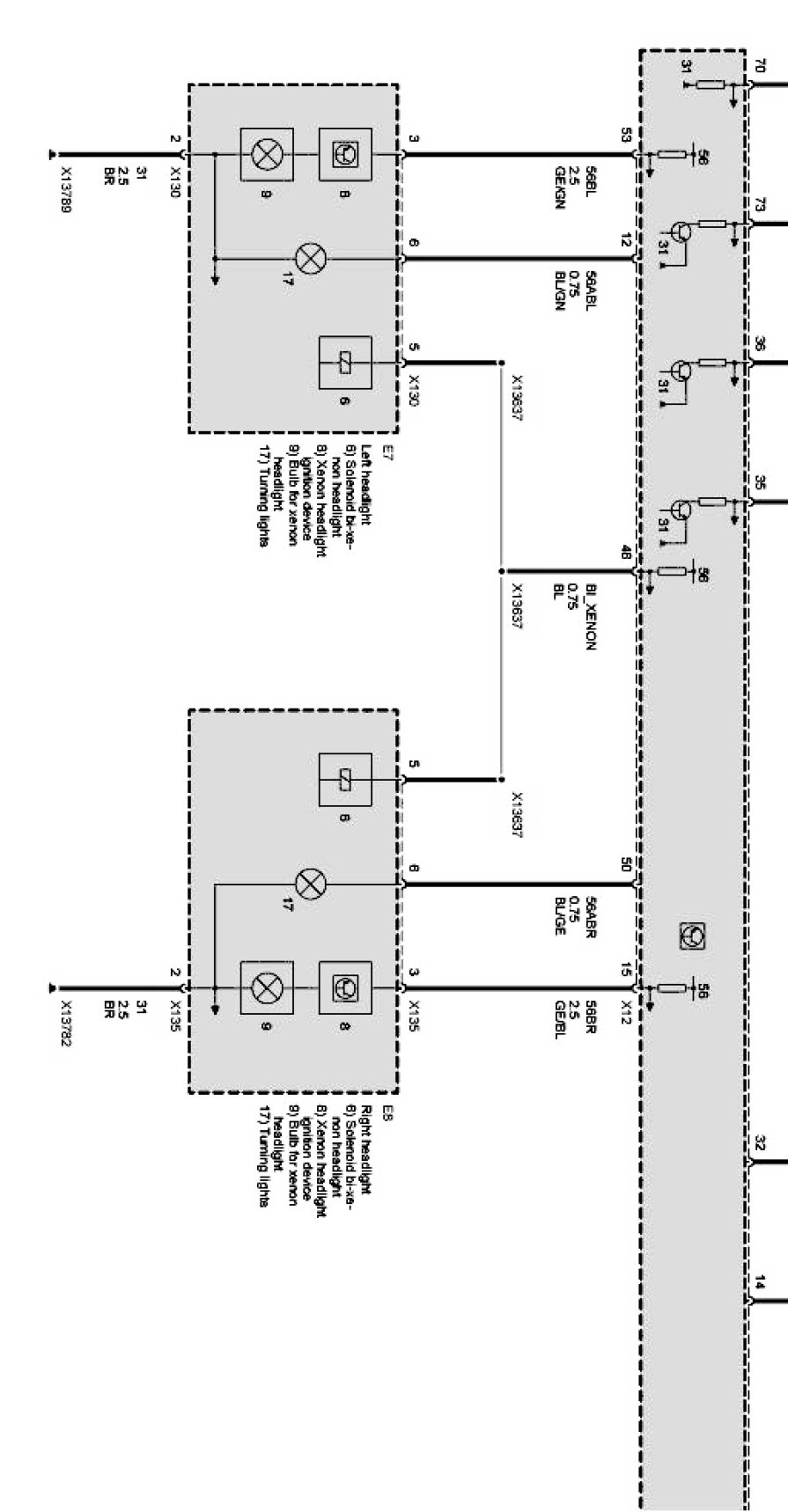

Low beam/high beam Part 2:

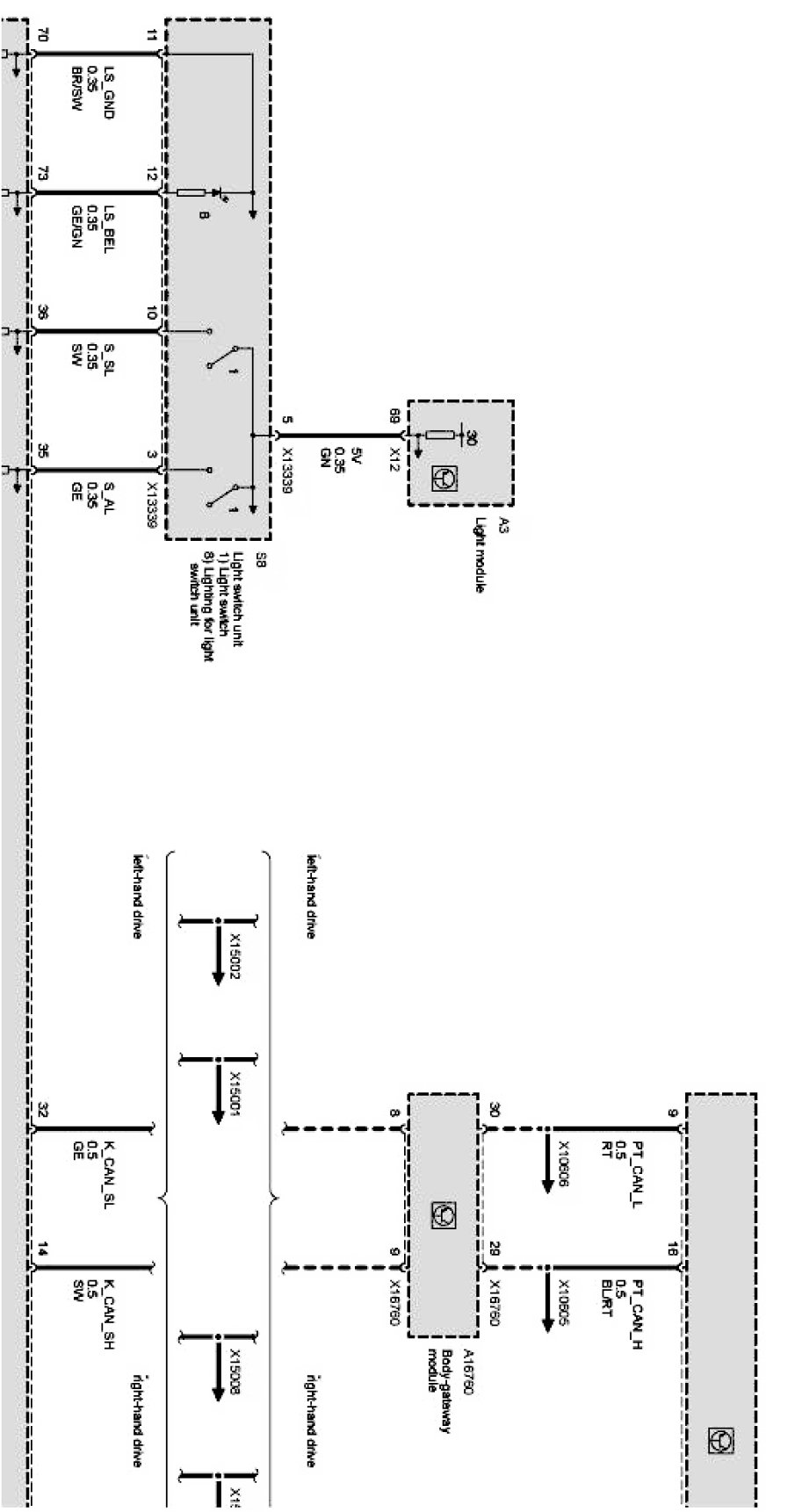

Low beam/high beam Part 3:

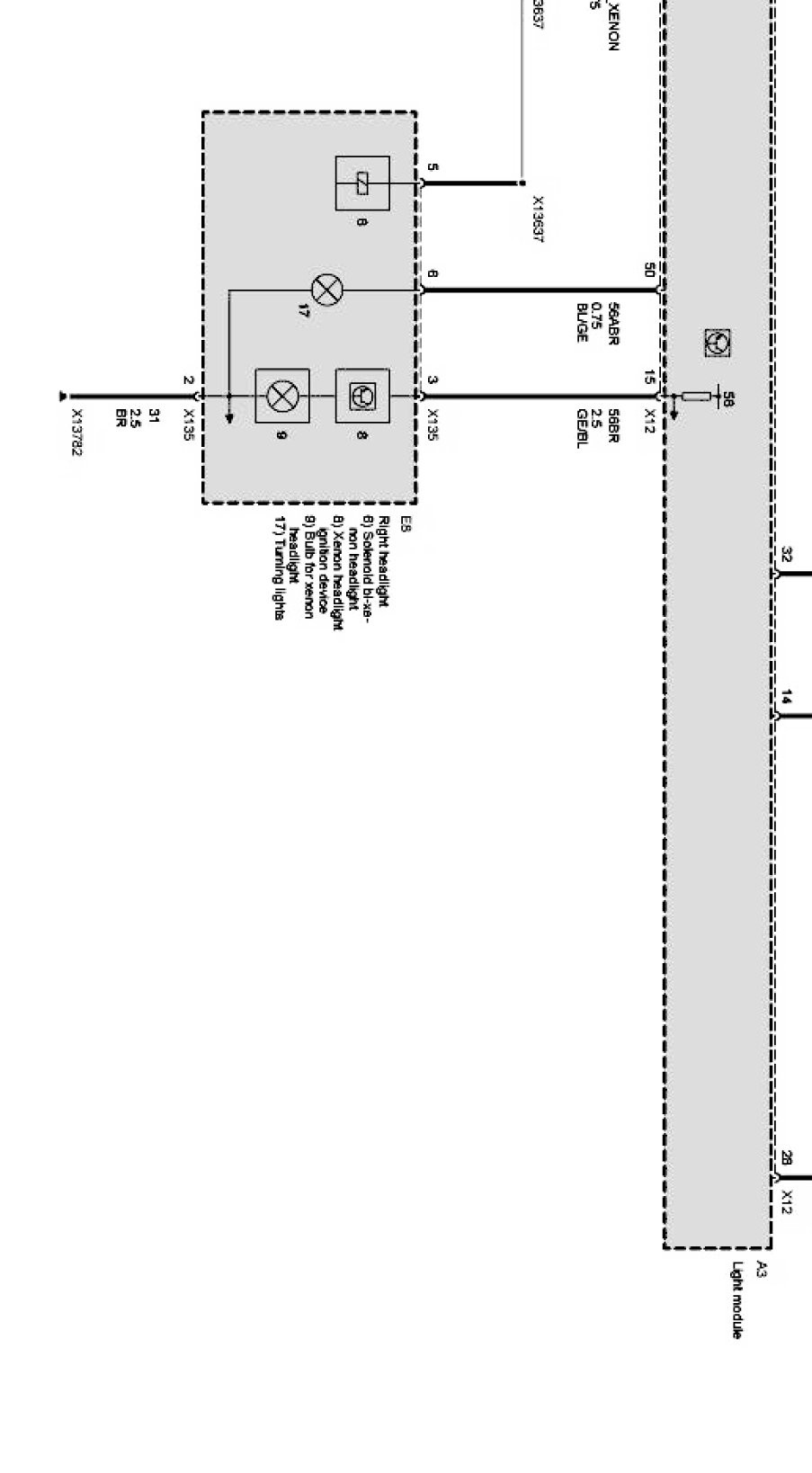

Low beam/high beam Part 4:
