X60007 Adapter 612420, Storage Location F102 (N52 or S85 Engine)
>>
A6000 DME Control Module (N52 Engine As of 03/07)
A6000 DME Control Module (N52 Engine As of 03/07)
X60007:

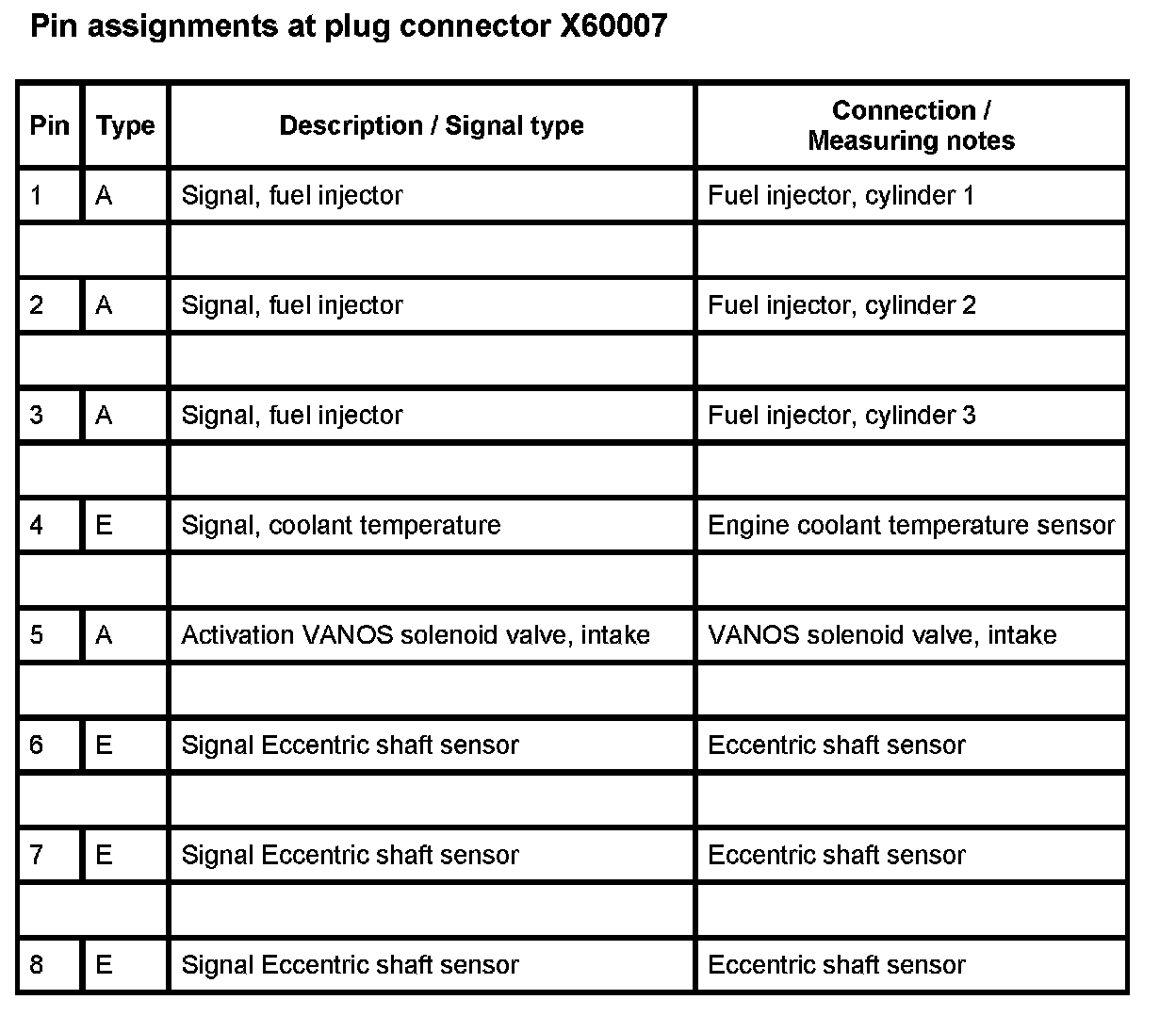

X60007 - Part 1:

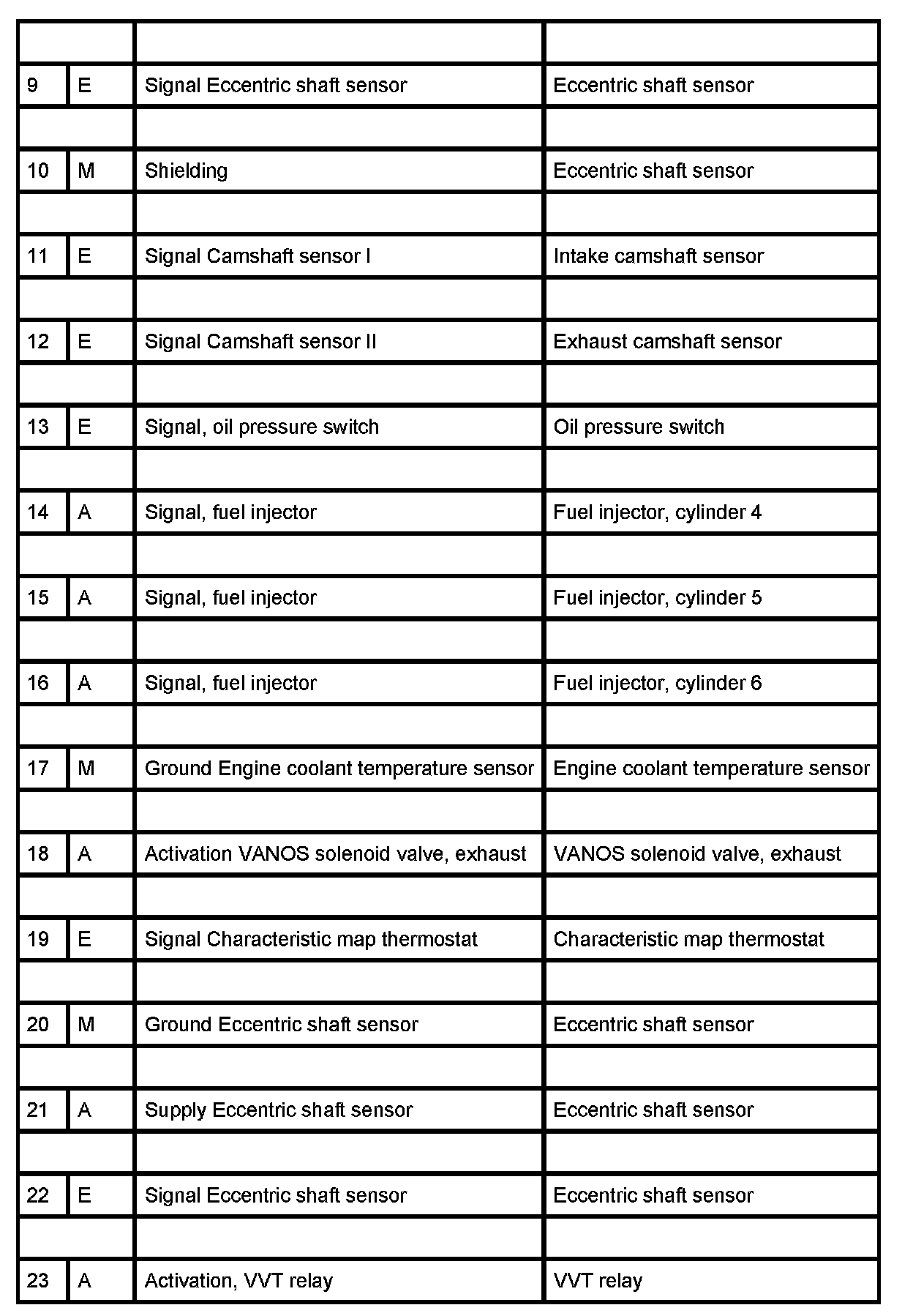

X60007 - Part 2:
X60007 - Part 3:
