X60006 Adapter 612420, Storage Location F102 (N52 or S85 Engine)
>>
A6000 DME Control Module (N52 Engine As of 03/07)
A6000 DME Control Module (N52 Engine As of 03/07)

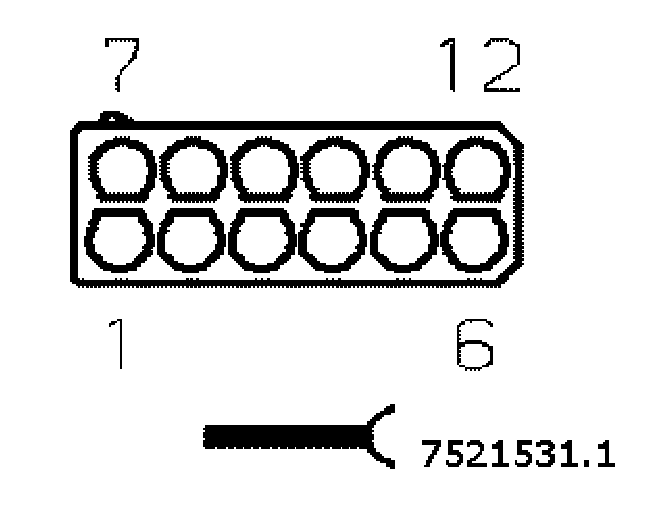

X60006:

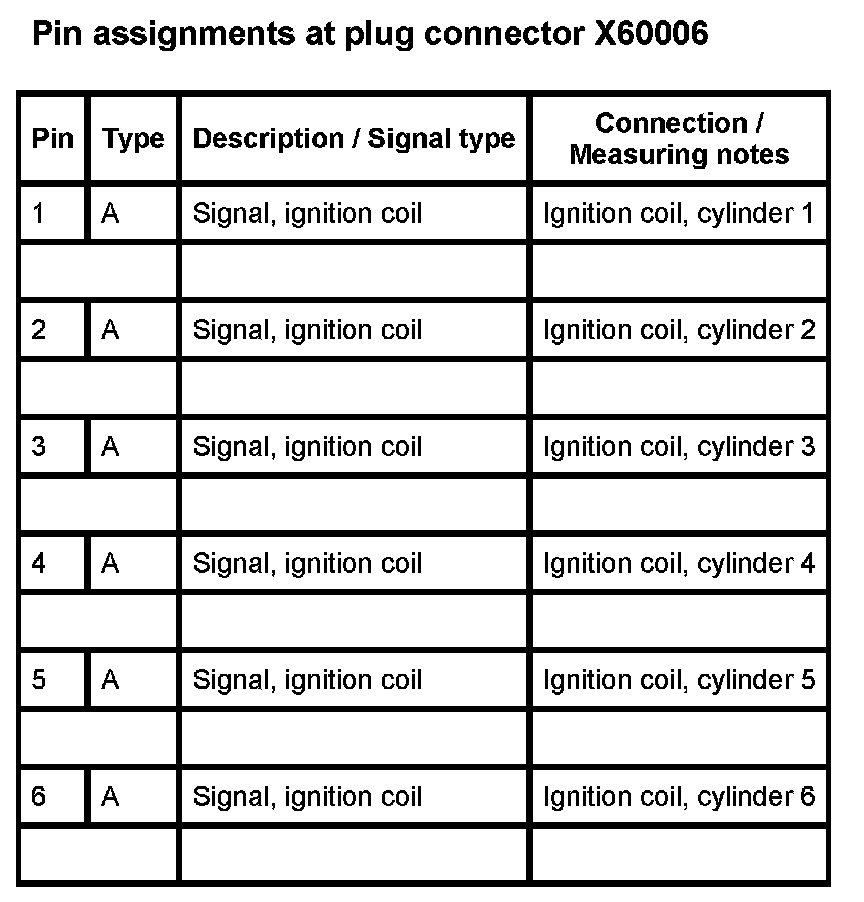

X60006 - Part 1:

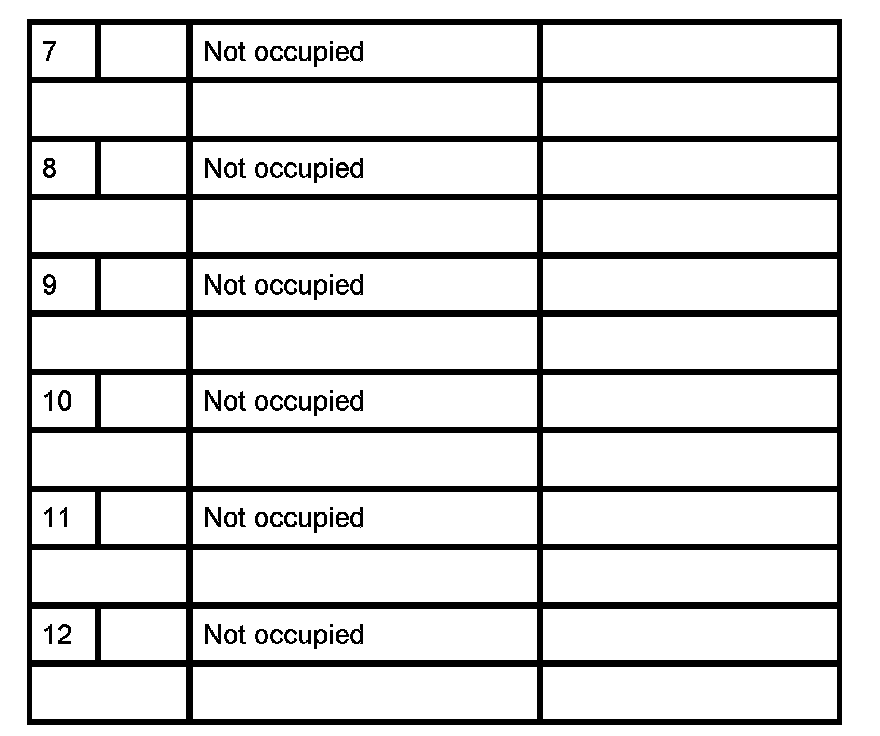

X60006 - Part 2:
