X60005 Adapter 612420, Storage Location F102 (N52 or S85 Engine)
>>
A6000 DME Control Module (N52 Engine As of 03/07)
A6000 DME Control Module (N52 Engine As of 03/07)

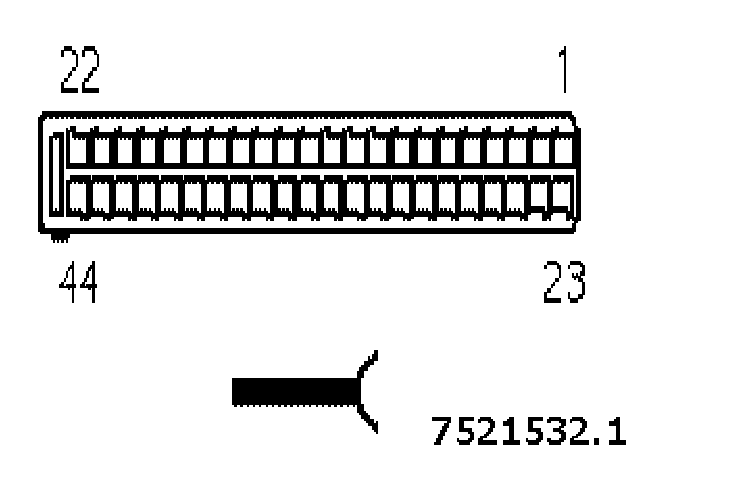

X60005:

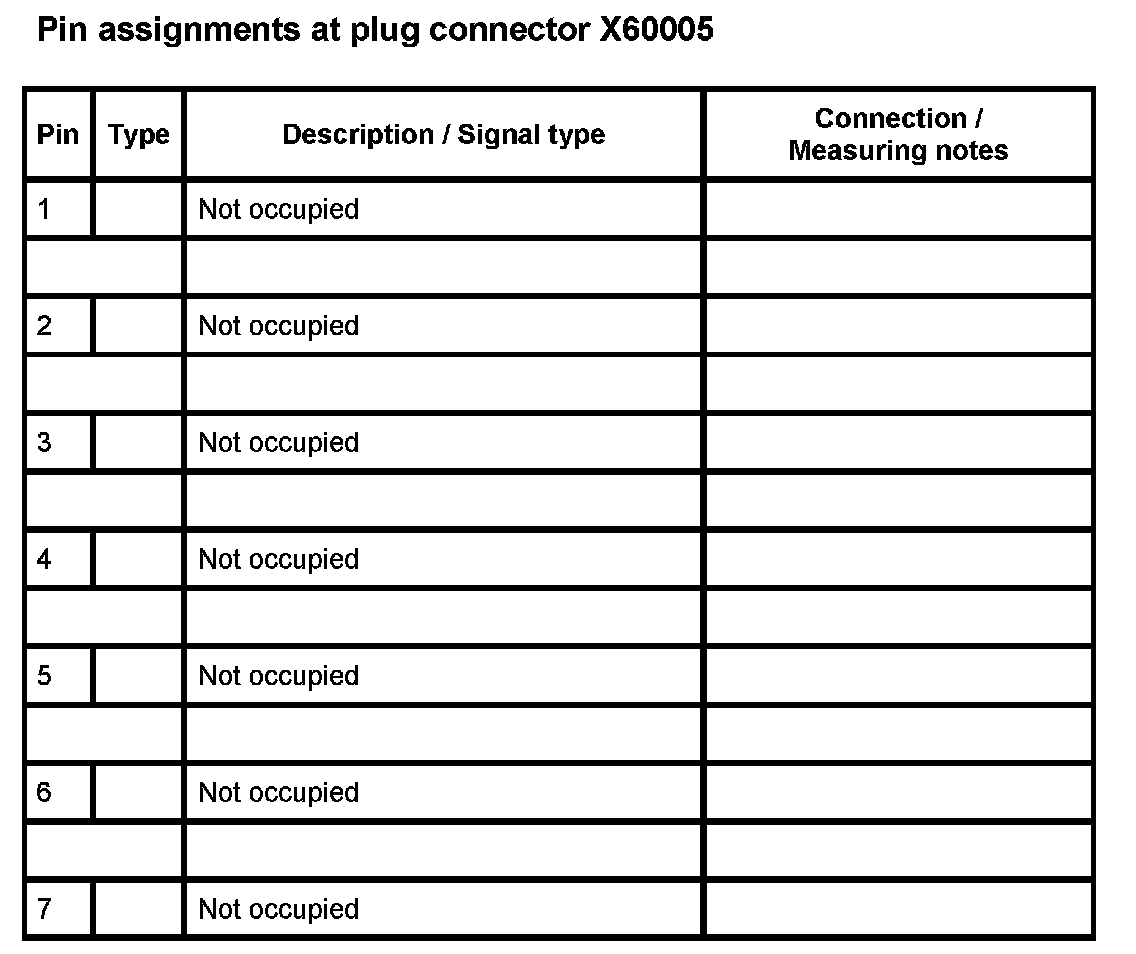

X60005 - Part 1:

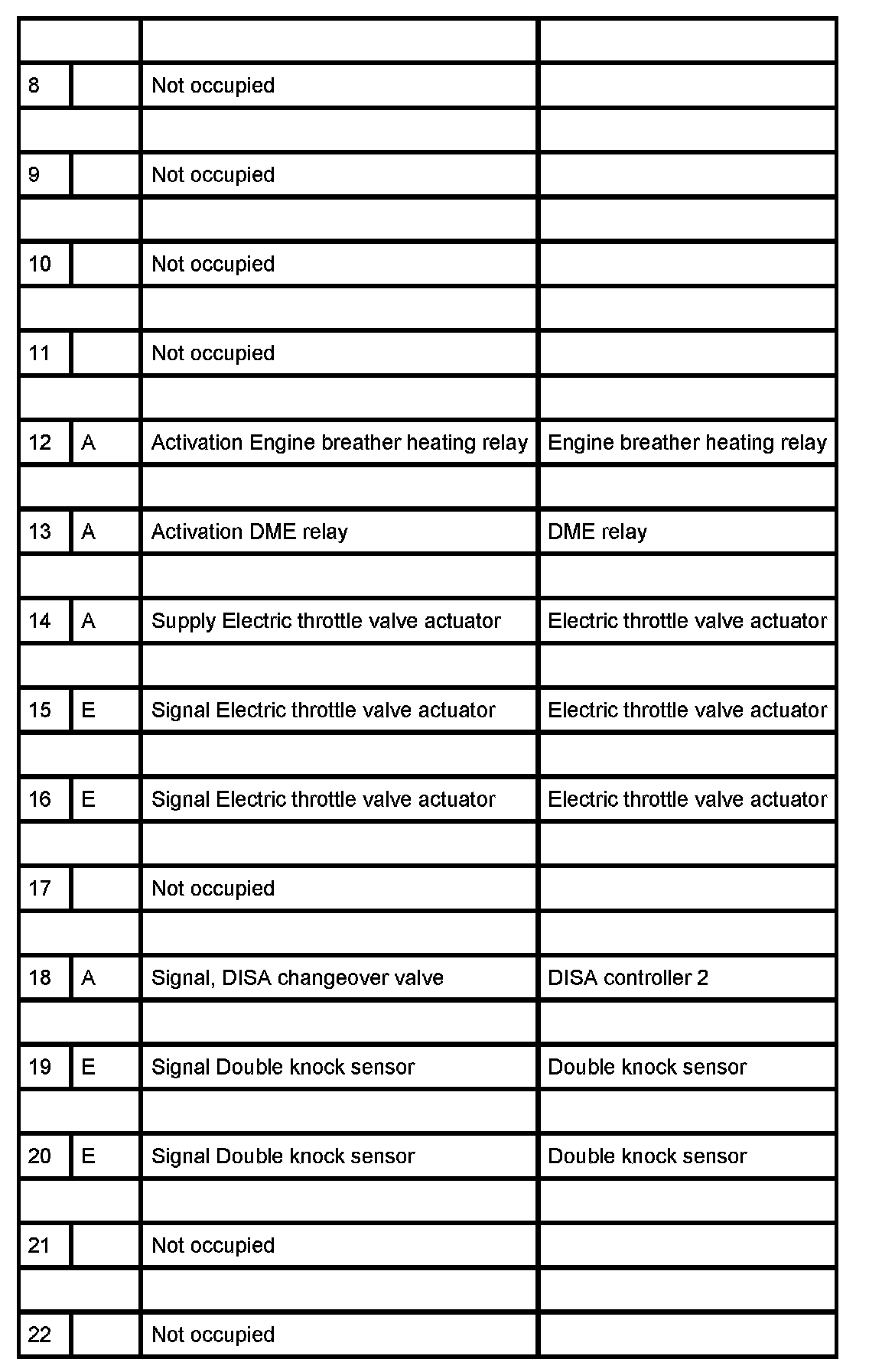

X60005 - Part 2:

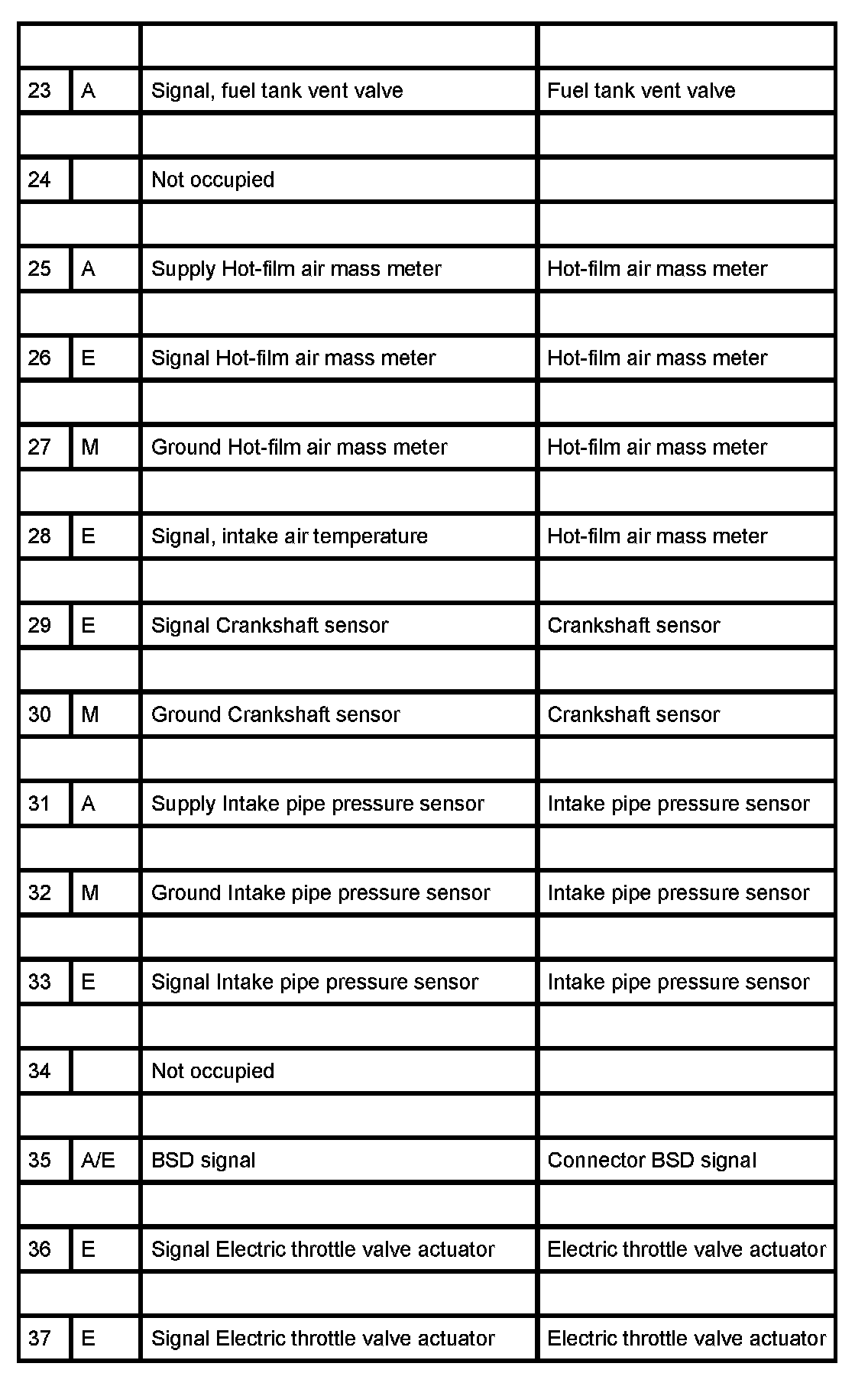

X60005 - Part 3:

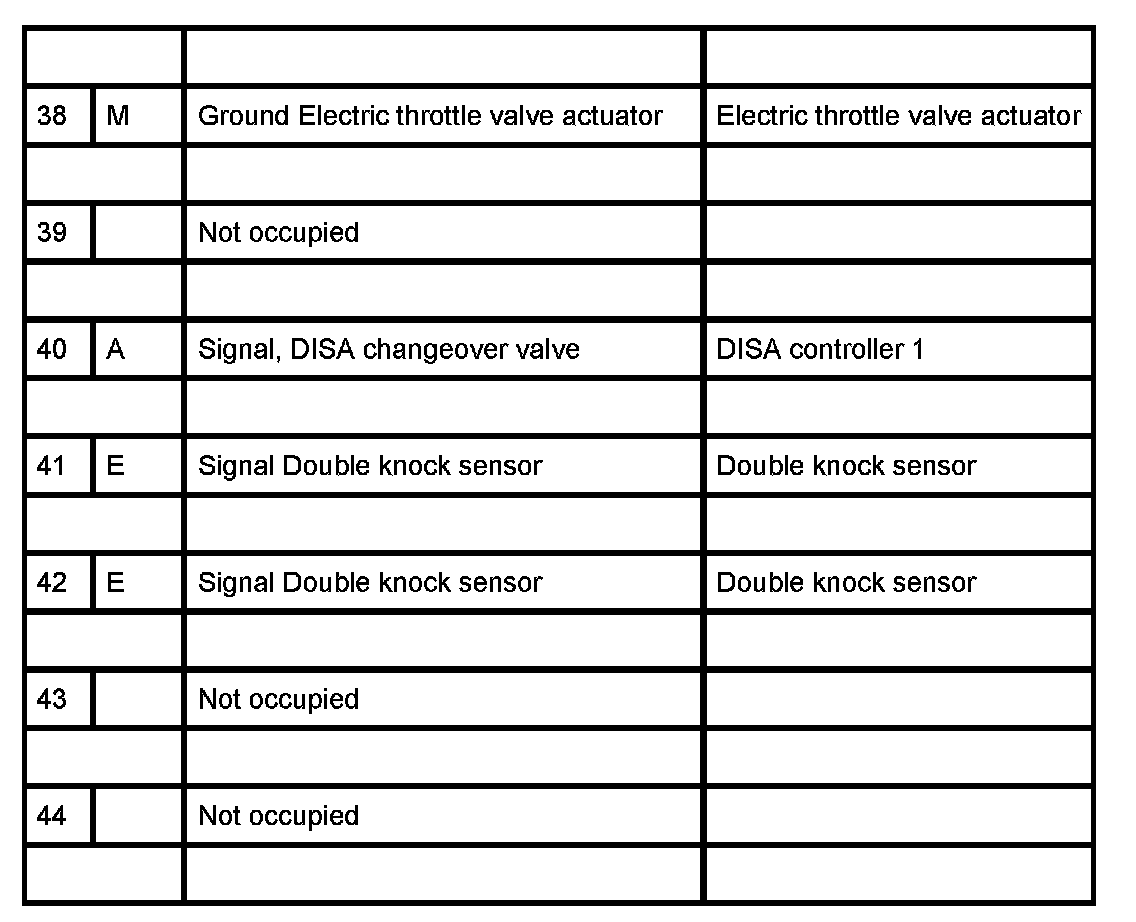

X60005 - Part 4:
