Replacing Seal for Door Seam/Roof Frame on Left or Right Rear Door




51 22 360 - Replacing seal for door seam/roof frame on left or right rear door





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge





Lever out seal (1) at rear with special tool 00 9 317 00 9 317 Trim Panel Wedge in direction of arrow.

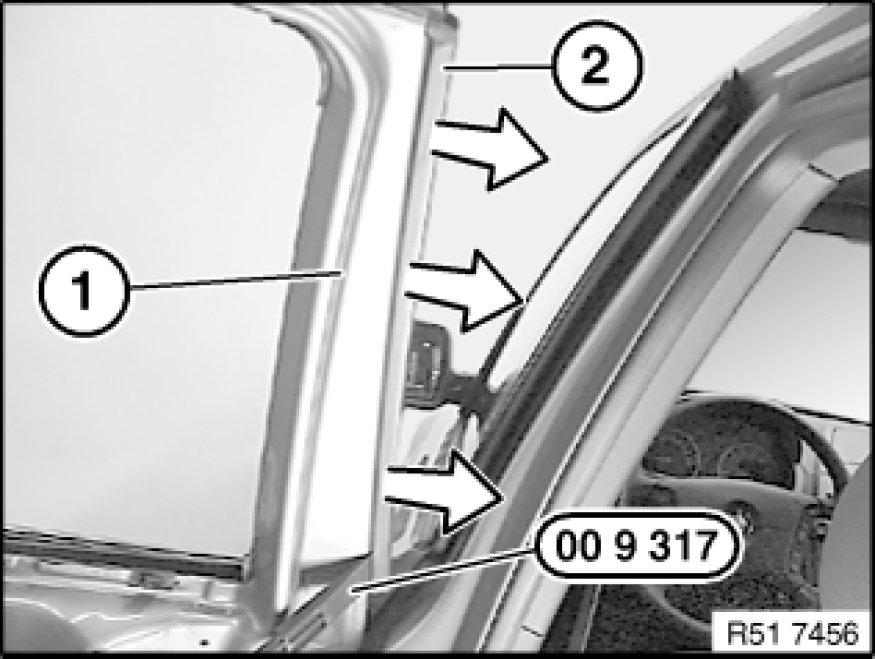

Lever out seal (1) on door window frame at front (2) with special tool 00 9 317 00 9 317 Trim Panel Wedge.

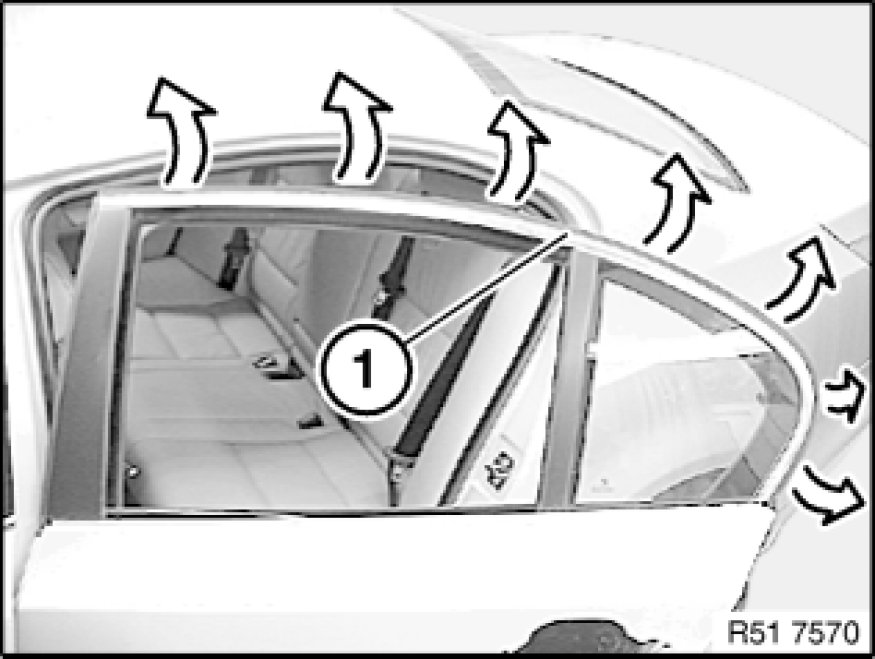

Starting at rear, pull off seal (1) towards front.
