Removing and Installing/Replacing Lock for Left or Right Rear Seat Backrest (Through-Loading System)

52 26 311 - Removing and installing/replacing lock for left or right rear seat backrest (through-loading system)





Unlock and fold back rear seat backrest.

Note:
If the rear seat backrest cannot be unlocked, carry out emergency opening Emergency Actuator for Rear Seat Backrest.

Unclip Bowden cable from holders (1).
Release screws (2).
Tightening torque: 52 26 10AZ Rear Seats (Through-Loading System).

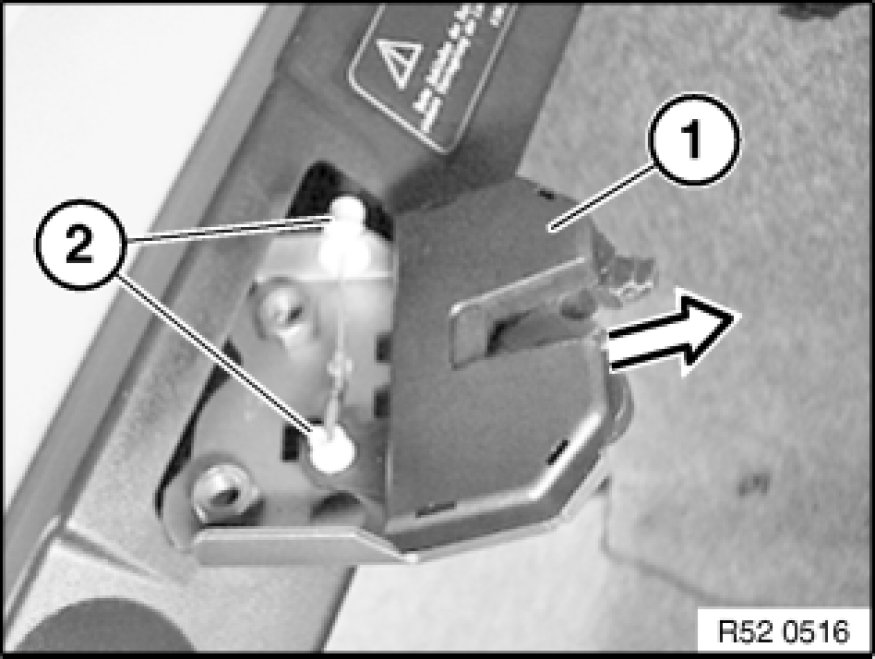

Feed lock (1) out of installation opening slightly and unclip Bowden cable (2).
Remove lock completely from installation opening.

Installation:
Catches (2) on lock must not be damaged.
Bowden cable must be correctly anchored in catches (2).

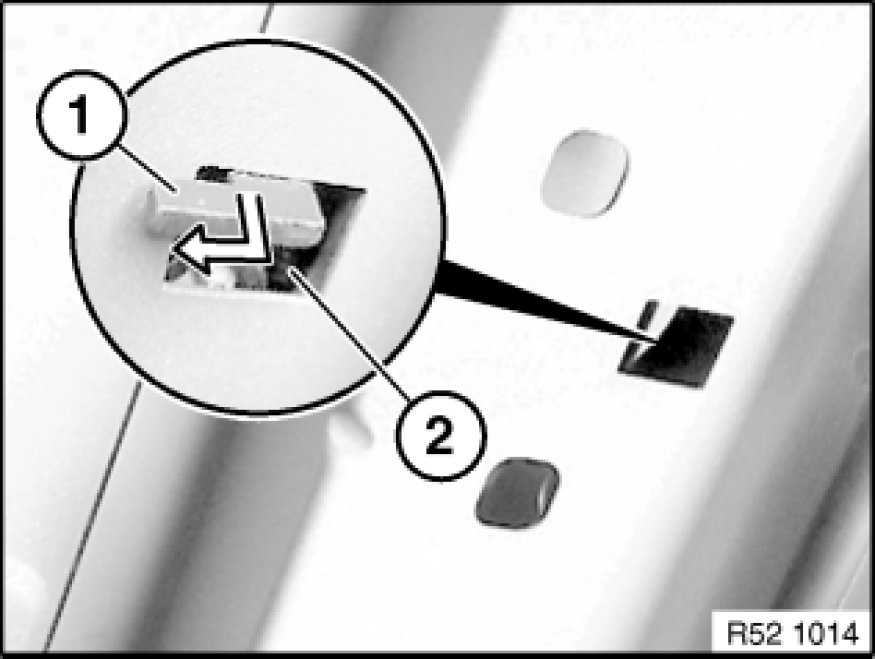

Installation:
Slide guide lug (1) of lock into opening (2).





Note:
Adjustment of lock:
- Slacken screws
- Firmly push engaged backrest back
- Tighten down screws
Tightening torque: 52 26 10AZ Rear Seats (Through-Loading System).
