Removing and Installing/Replacing Backrest Frame for Right Rear Seat (Through-Loading System)

52 26 085 - Removing and installing/replacing backrest frame for right rear seat (through-loading system)





Necessary preliminary tasks:
- Remove backrest cover with padding Replacing Backrest Cover For Right Rear Seat (Through-Loading System)





Replacement only:

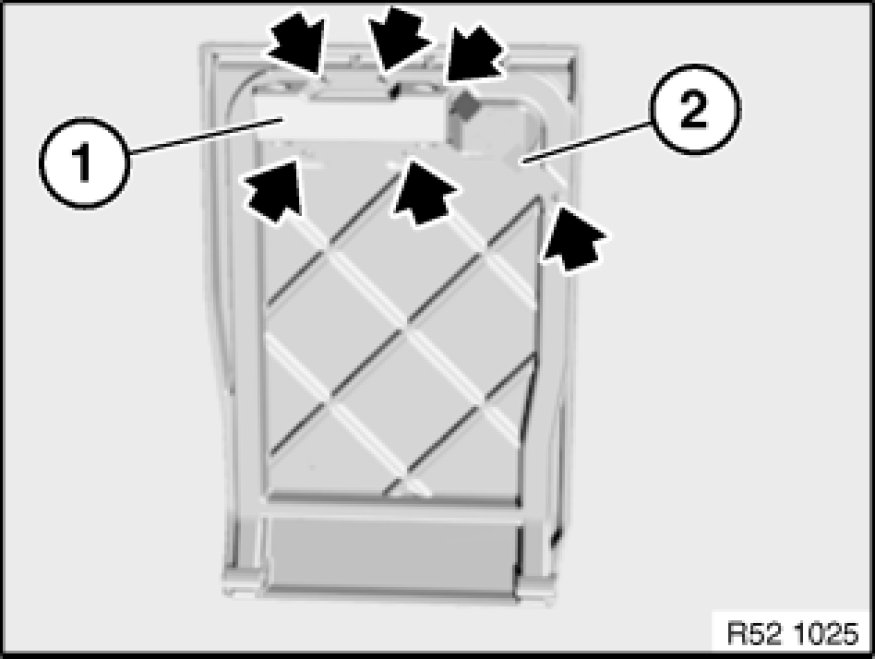

Release all screws and remove parts:
1. Head restraint mount
2. Backrest lock
