Removing and Installing/Replacing Outer Cover on Left or Right Front Seat (Normal/Semi-Electric)

52 13 040 - Removing and installing/replacing outer cover on left or right front seat (normal/semi-electric)

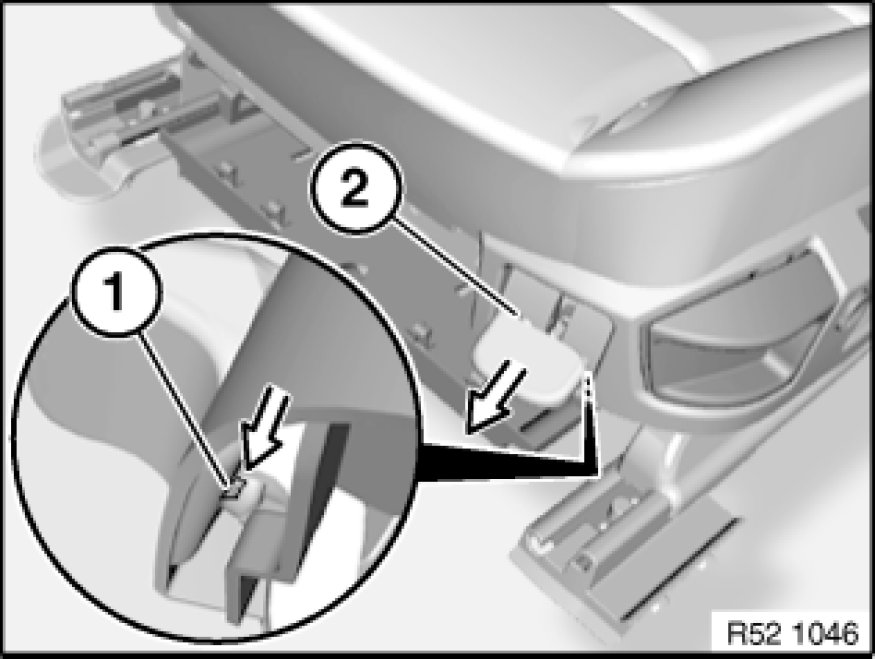

Pull lever forward to remove:
- If necessary, lever out lower locking point (1) from rear with a screwdriver.
Unscrew bolt (2).
If necessary, move seat fully forwards and upwards.

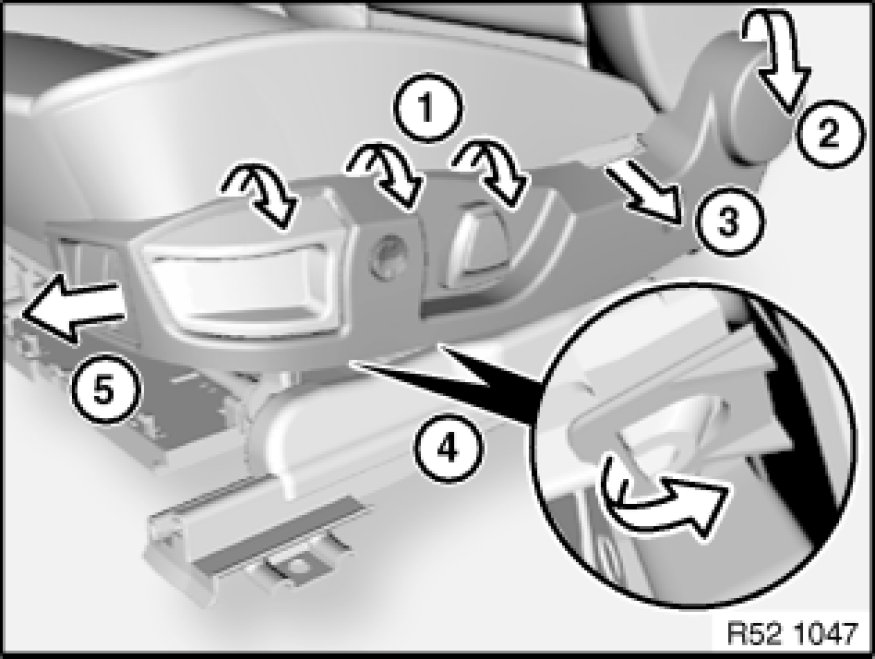

Remove trim:
1. Unclip at top edge
2. Unclip at rear towards top side
3. Pull on belt opening
4. Unlock lugs
5. Carefully remove trim towards front
Unfasten plug connection.
Replacement only:
Remove switch.





Installation:

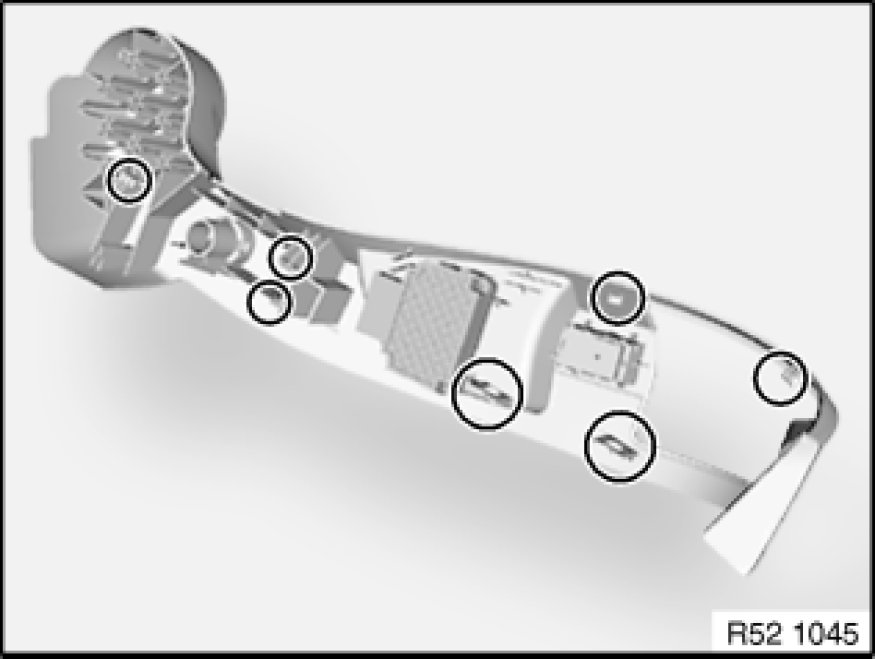

Retaining clips and tabs must not be damaged.
