Removing and Installing/Replacing Guide for Front Left or Right Head Restraint




52 13 ... - Removing and installing/replacing guide for front left or right head restraint





Necessary preliminary tasks:
- Remove head restraint
- Remove rear panel on front seat

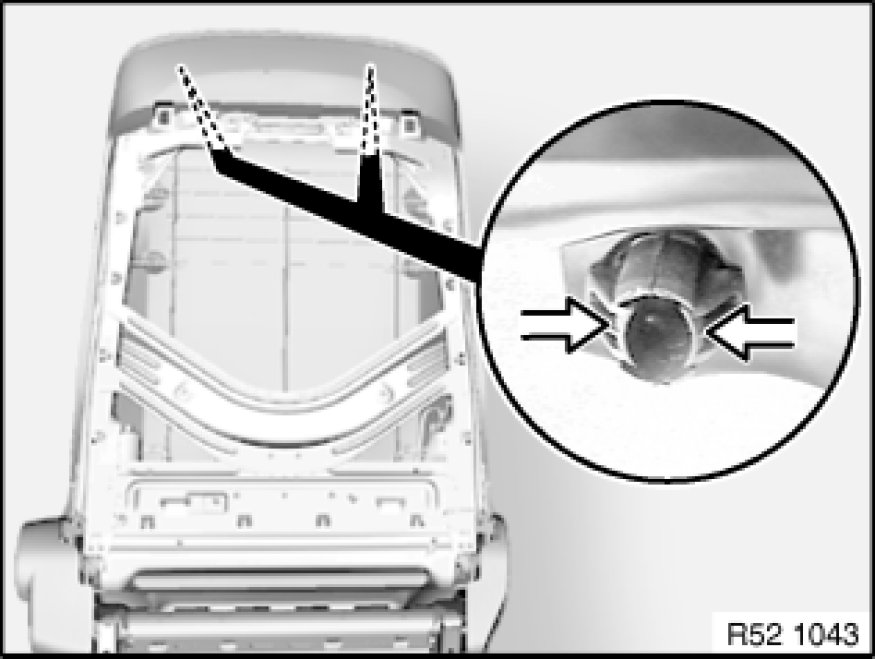

Press catches together and feed guide upwards out of cover and padding.
