Removing and Installing/Replacing Monitor Panel Holder on Left or Right Front Seat Backrest (Long Version)

52 17 ... - Removing and installing/replacing monitor panel holder on left or right front seat backrest (long version)





Necessary preliminary tasks:
- Remove upper rear panel Removing and Installing/Replacing Both Rear Panels on Left or Right Front Seat Backrest (Long Version)

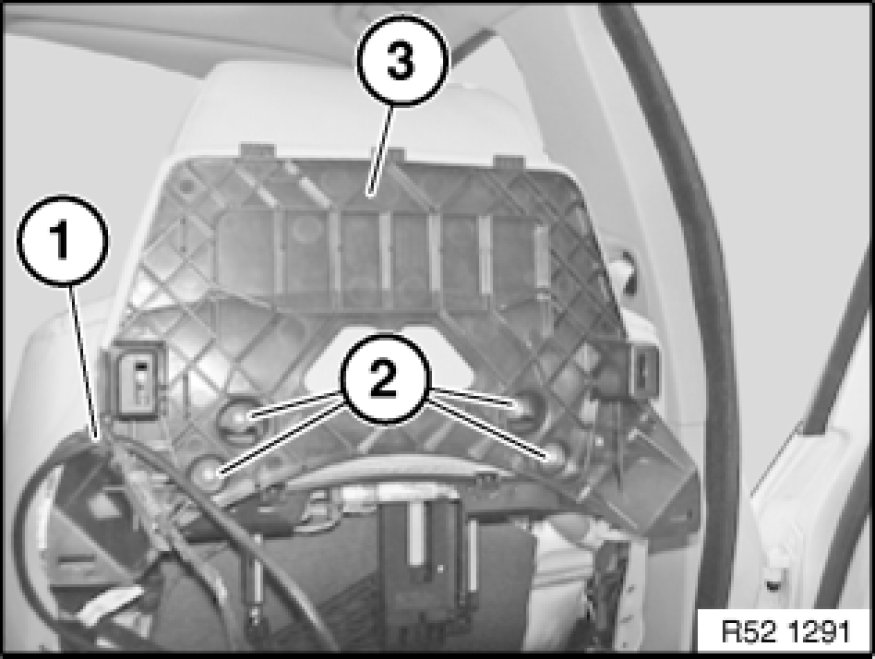

Cut open cable tie (1).

Installation:
Replace faulty cable tie.

Unfasten screws (2).

Remove monitor panel holder (3).
