Removing and Installing/Replacing Trim For Left or Right Door Pillar (Bottom)

51 43 150 - Removing and installing or replacing trim for left or right door pillar (bottom)





Special tools required:
- 00 9 341





Necessary preliminary tasks:
- Remove front entrance cover strip 51 47 000 Removing and Installing/Replacing Front (Inside) Left or Right Entrance Cover Strip.

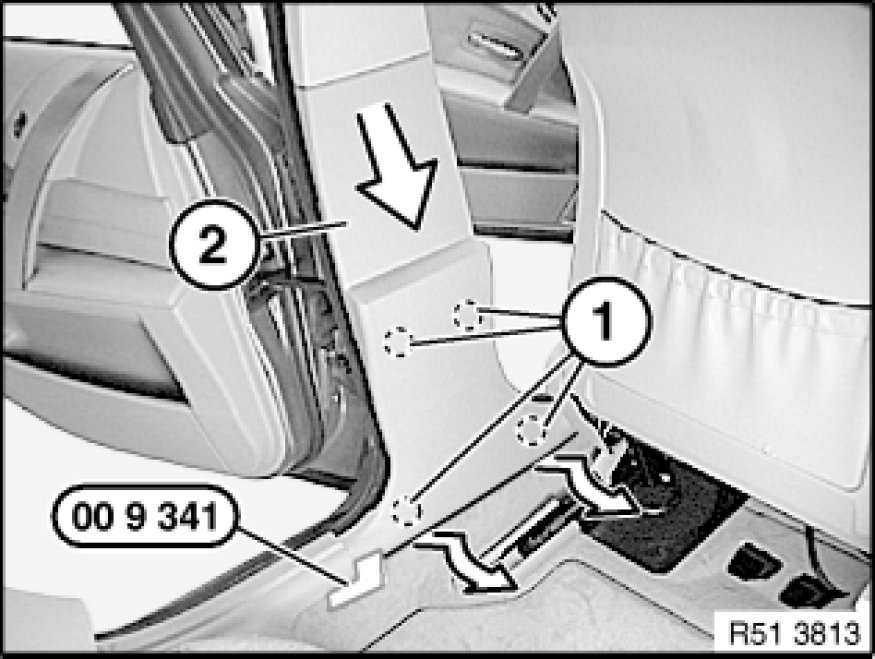

Partially detach mucket in area of B-pillar trim.
Insert special tool 00 9 341 under rear entrance cover strip (inside).
Unclip trim for door pillar (2) by pulling inwards (1), then pull downwards to remove.





Installation:
Following parts of trim for door pillar (1) must not be damaged or missing:
2 - Clips
3 - Hooks
4 - Guides
