51 45 115 Removing and Installing Speaker Frame on Panel For Instrument Panel At Top

51 45 115 - Removing and installing speaker frame on panel for instrument panel at top





Special tools required:
- 00 9 341

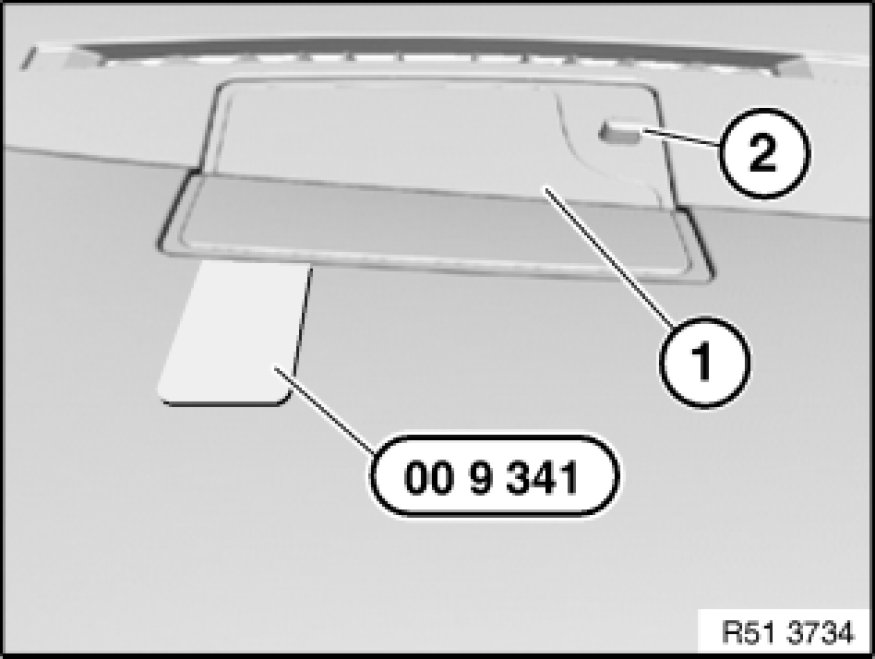

Carefully unclip speaker frame (1) with special tool 00 9 341.

Unlock and disconnect plug connection on solar sensor (2).

Remove speaker frame (1).





Installation:

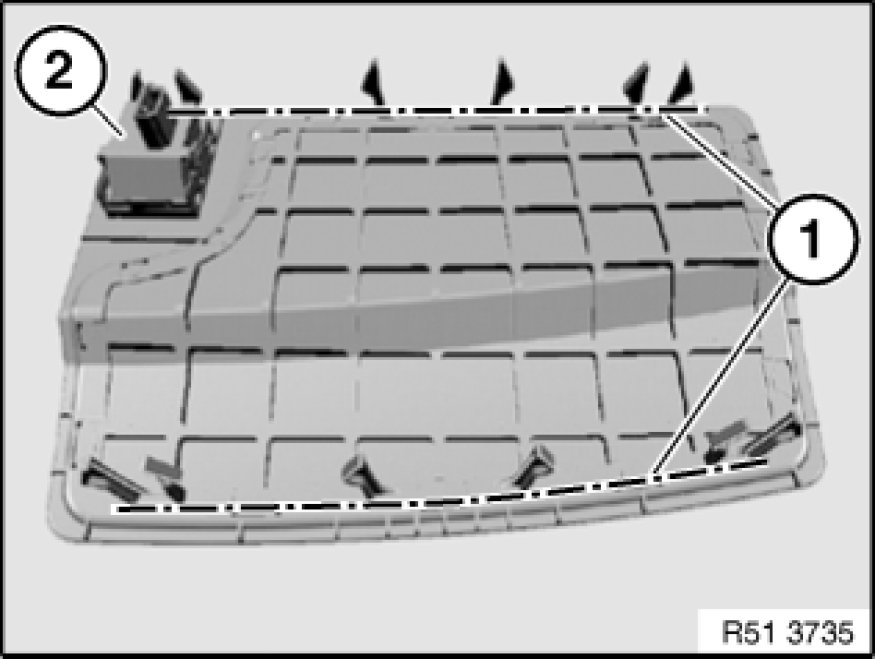

Locks (1) along lines must not be damaged.

Replacement:

Remove solar sensor (2) Service and Repair.
