Trunk / Liftgate Lock Cylinder: Service and Repair

51 24 050 - Removing and installing/replacing lock element (lock cylinder) for rear lid





Necessary preliminary tasks:
- Remove panel for rear lid .

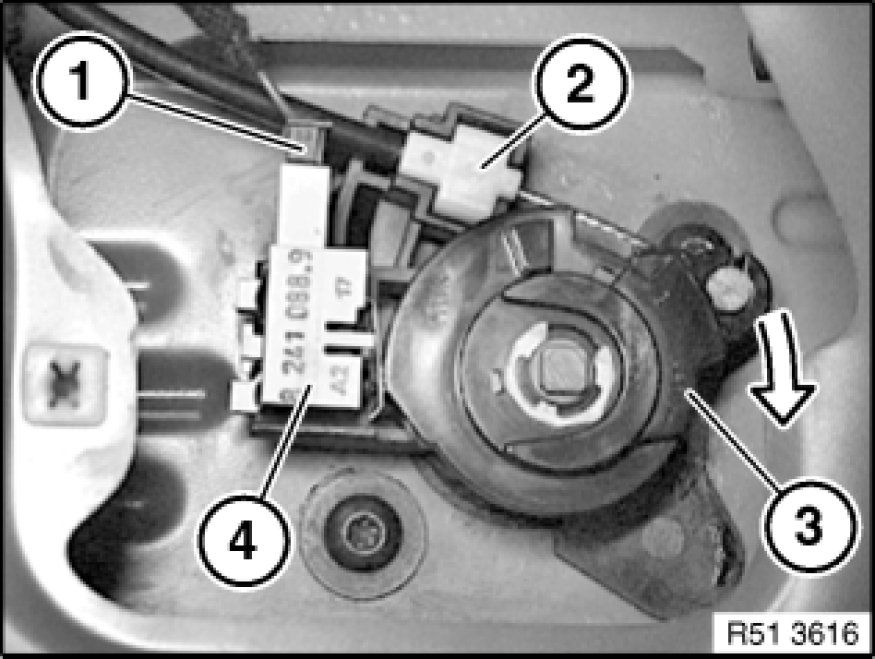

Disconnect plug connection (1) on microswitch.
Detach Bowden cable (2) from holders.
Move lock actuator (3) in direction of arrow up to end stop.

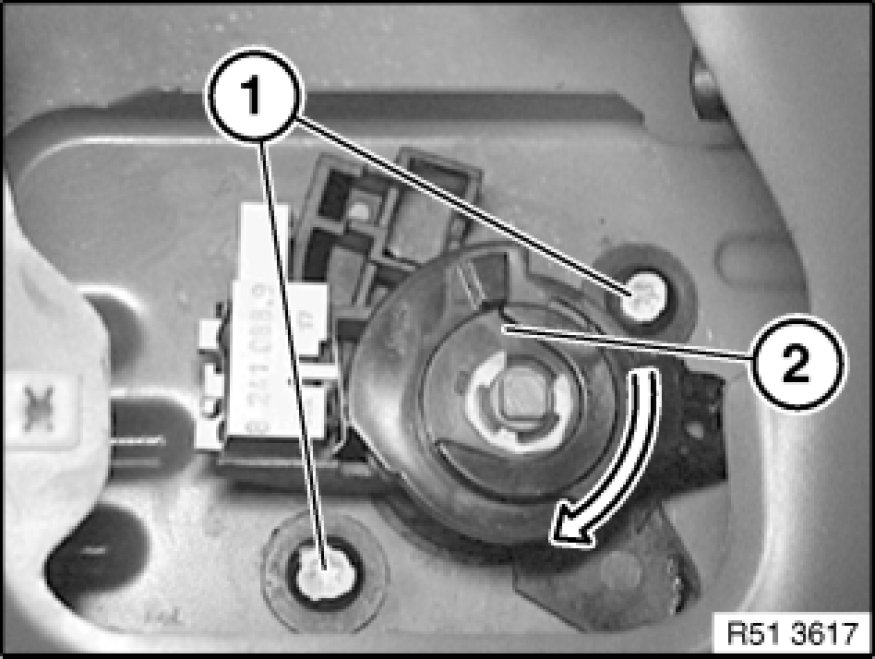

Release screws (1) and turn complete lock (2) in direction of arrow.





Turn lock (1) to right until guide (2) is located in metal cutout (3).
Remove lock in direction of arrow.





Installation:
Perform function check with trunk lid open.





Only replace:

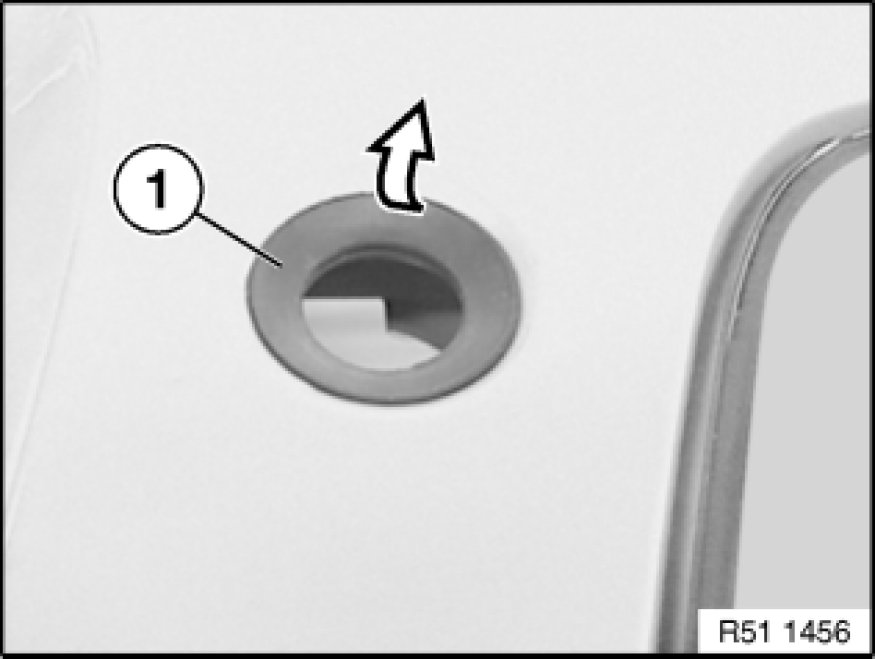

Pull off rubber grommet (1).
