Removing and Installing/Replacing Speaker (Mid-Range Speaker in Front Door)

65 13 070 - Removing and installing/replacing speaker (mid-range speaker, door at front)





Necessary preliminary tasks:
- Remove front door trim panel .

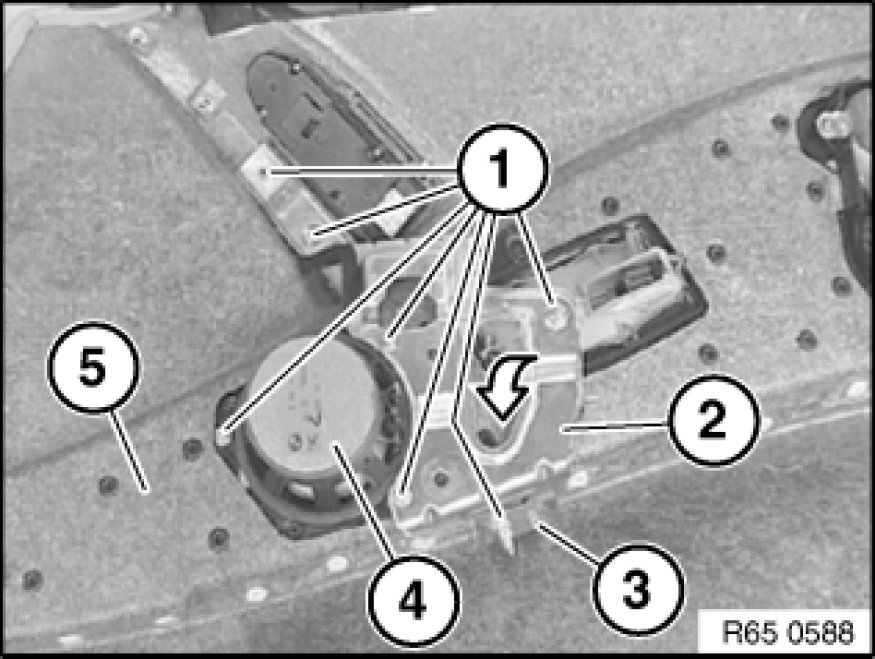

Unscrew nuts (1).
Remove retaining plate (2) in direction of arrow.

Installation:
Retaining plate (2) must be positioned over pin (3).

Remove speaker (4) upwards out of front door trim panel (5).
