Removing and Installing Left or Right Rear Cabin Monitor (Long Version)




65 50 125 - Removing and installing left or right rear cabin monitor (long version)





Necessary preliminary tasks:
- Remove upper rear panel from front seat backrest

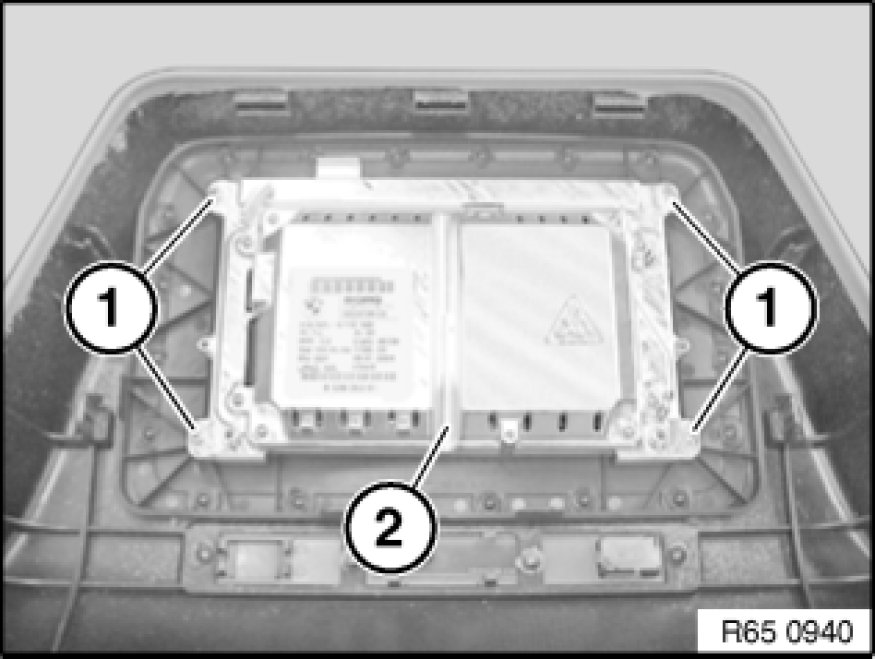

Release screws (1) on both side and lift out monitor (2).
