Removing and Installing/Replacing DVD Player In Rear Console (Long Version)

65 12 260 - Removing and installing/replacing DVD player in rear console (long version)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove upper rear console trim 51 16 263 - Removing and installing upper rear console trim (long version)
- Cover, rear console, front

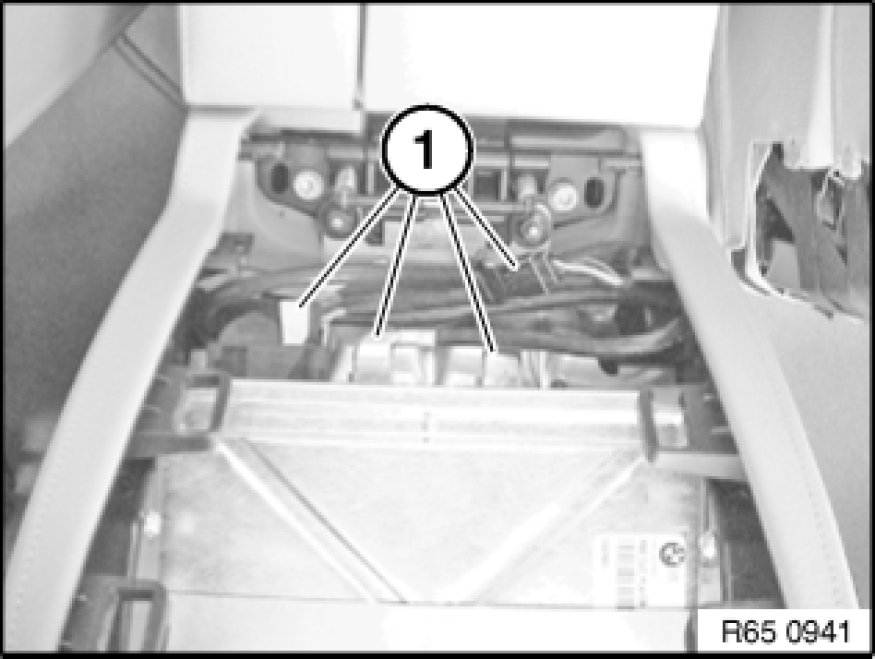

Disconnect plug connection (1).

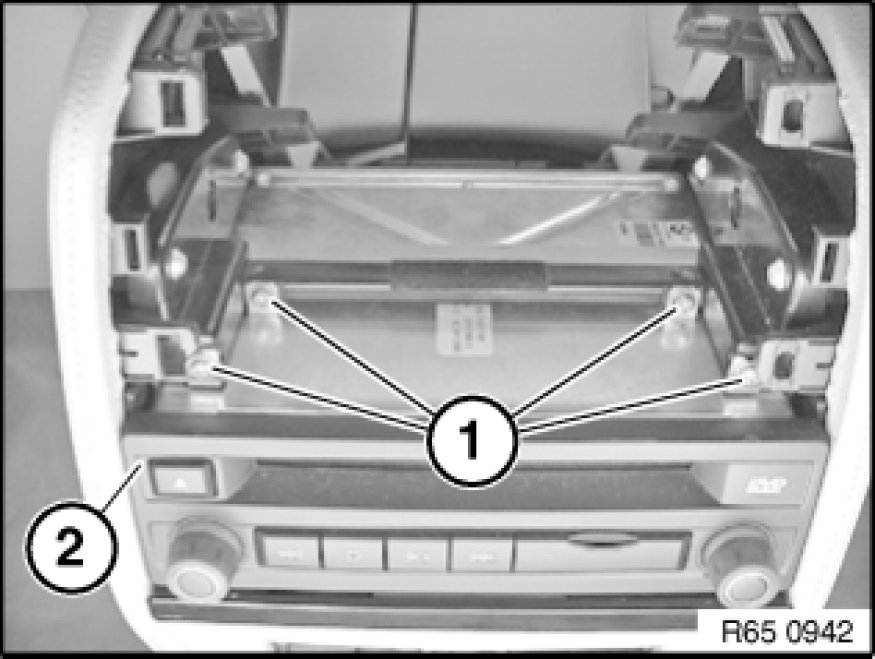

Release screws (1) and remove DVD player (2).
