51 71 482 - Removing and installing/replacing left or right tension strut (on rear axle) (up to 03/2007)

51 71 482 - Removing and installing/replacing left or right tension strut (on rear axle) (up to 03/2007)





Important!
Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform for raising the vehicle
Driving without the tension strut is not permitted!

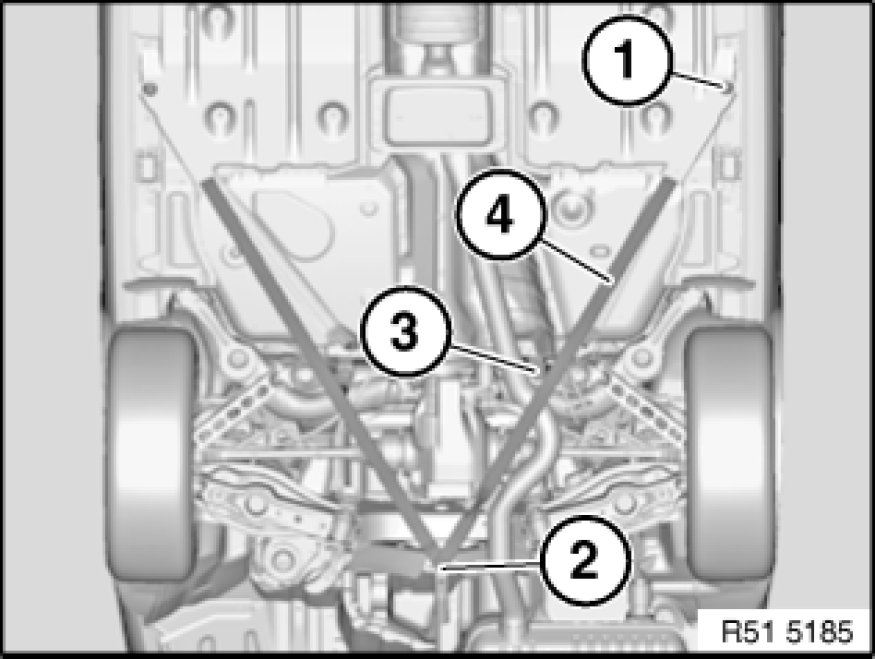

Release screws (1, 2, 3).
Remove tension strut (4).

Installation Note:
Replace screw (2).
Make sure screws are installed in correct positions.
- Screw (1) M12x35
Tightening torque 51 71 25AZ Specifications.
- Screw (2) M12x50
Tightening torque 51 71 26AZ Specifications.
- Screw (3) M10x25
Tightening torque 51 71 20AZ Specifications.





Important!

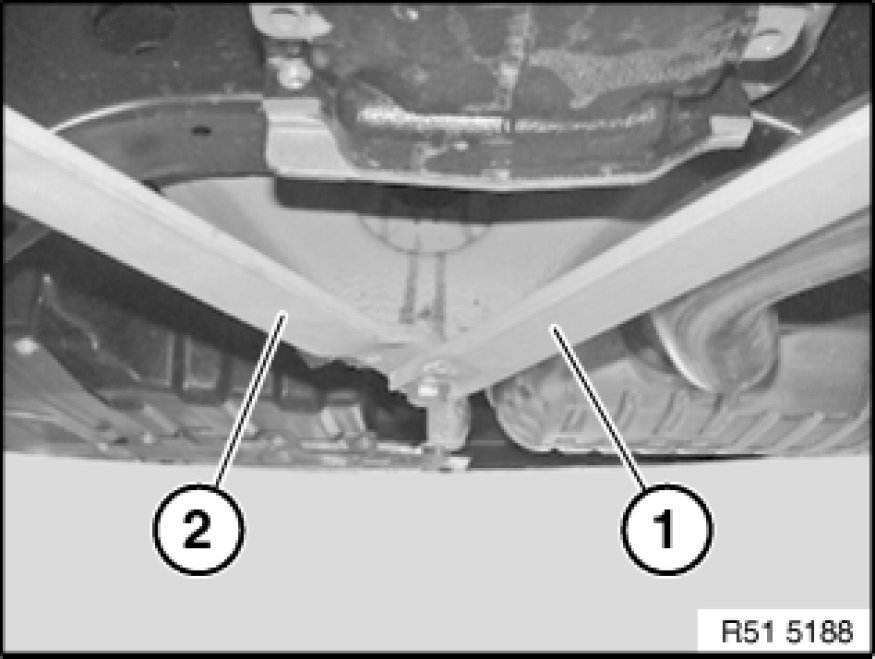

Left tensions strut (1) must be installed under right tension strut (2).
