51 71 ... - Removing and installing/replacing rear middle tension strut (up to 03/2007)

51 71 ... - Removing and installing/replacing rear middle tension strut (up to 03/2007)





Important!
Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform for raising the vehicle
Driving without the tension strut is not permitted!

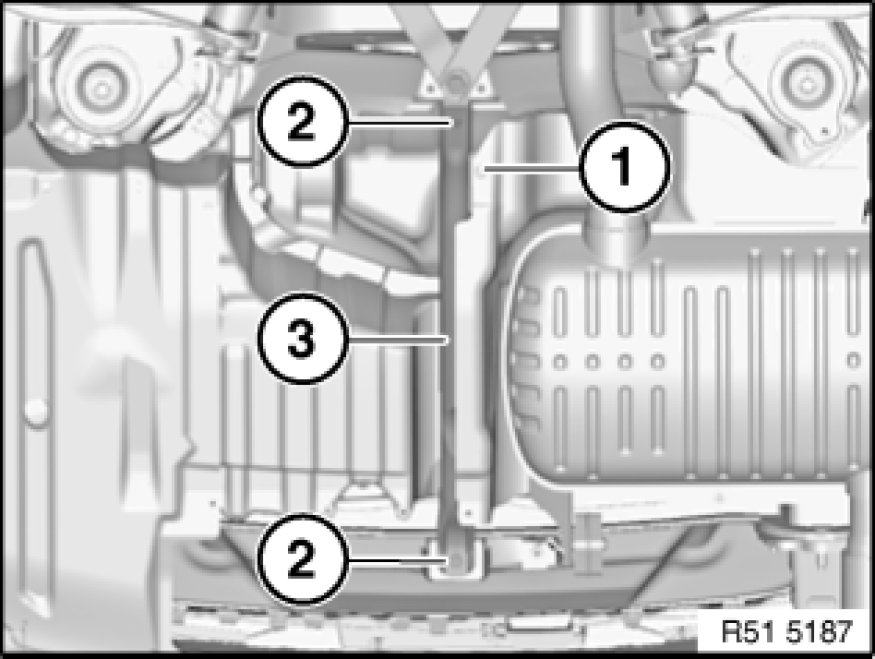

Release screws (1, 2).
Remove tension strut (3).

Installation Note:
Tightening torque 51 71 24AZ Specifications.
