Fuse F12 (1 Series_E81/E82/E87/E88 (Up to 03/07))



Fuse F12 (1 Series_E81/E82/E87/E88 or (3 Series_E90/E91/E92/E93 With (Saloon or Coupe) With (Up to 03/07)))

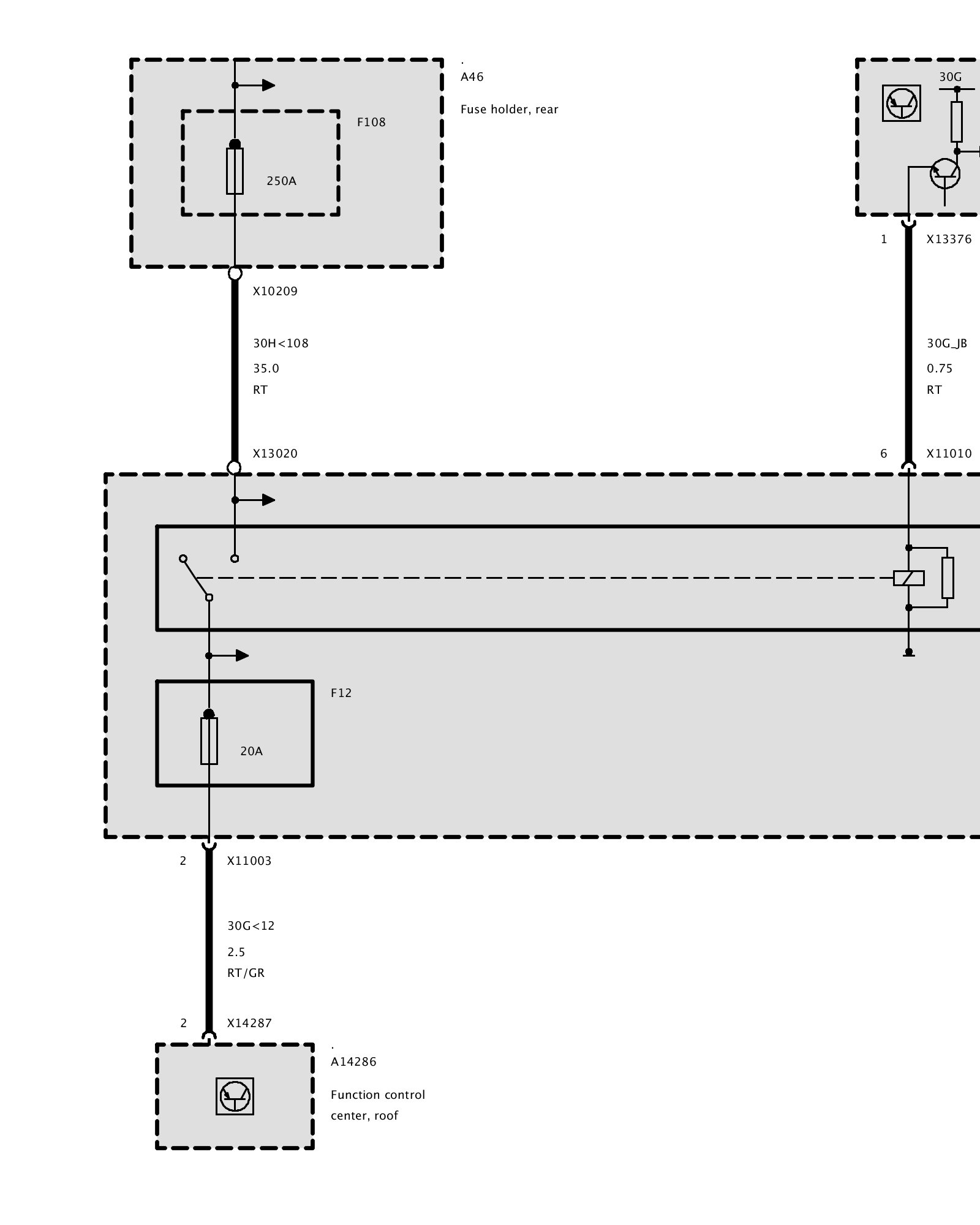

Part 1:

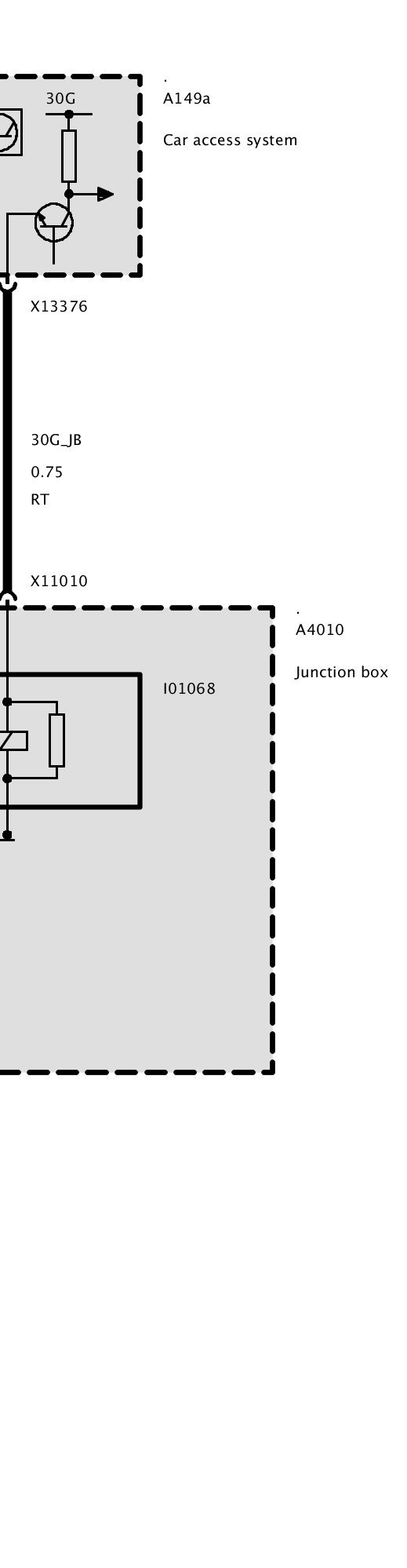

Part 2:
