Home >> BMW >> 2008 >> 135i Coupe (E82) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Locations

Seat Belt Systems: Locations

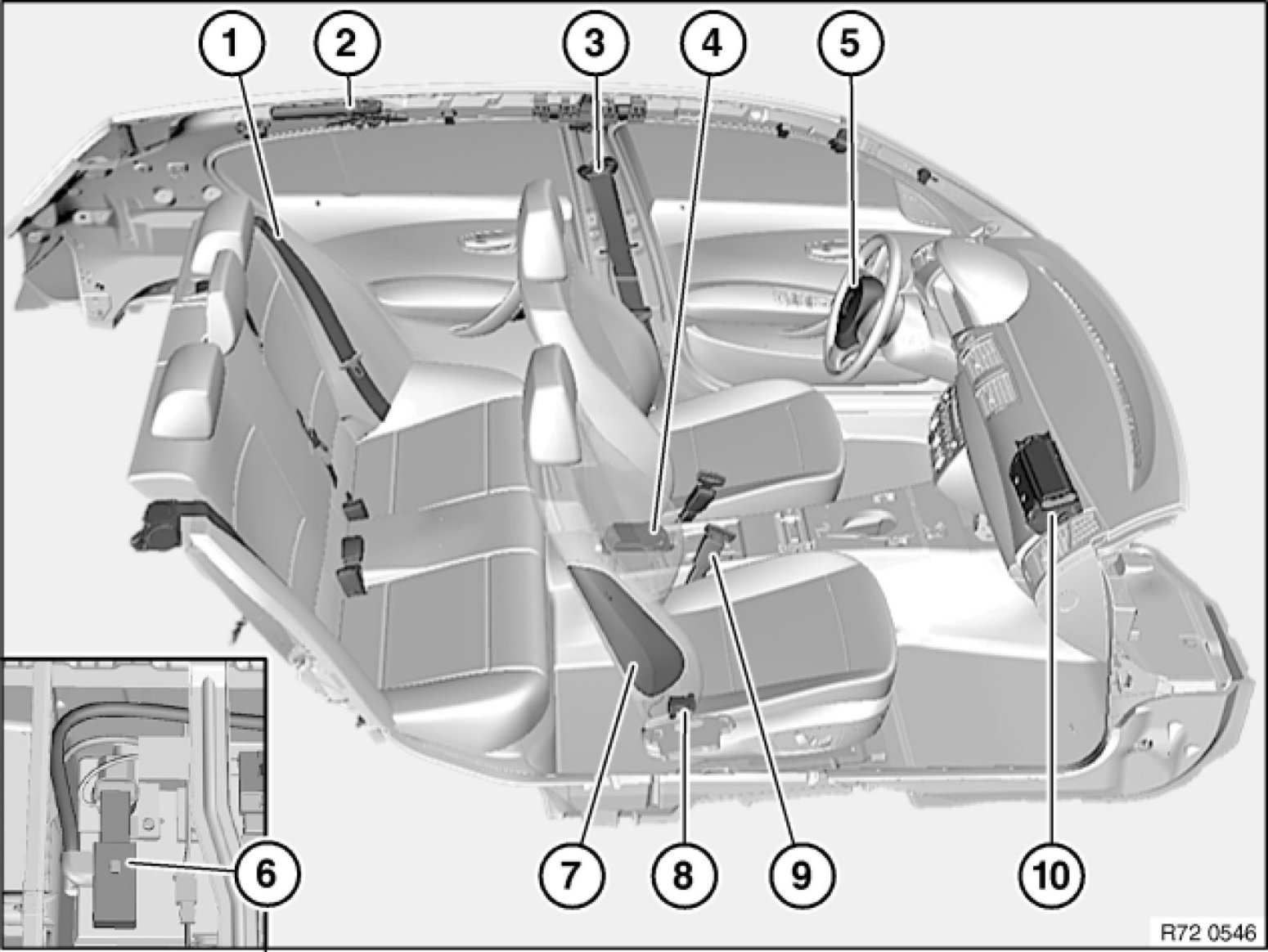

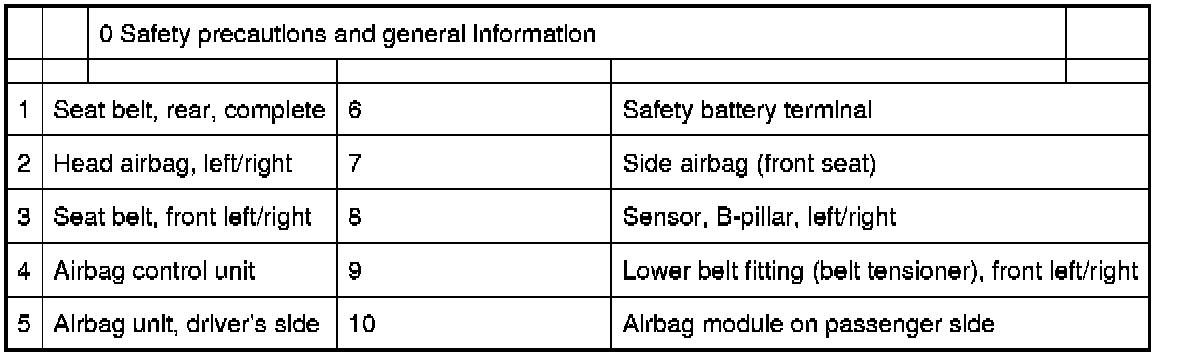

72 12 ... - Overview of airbag modules, seat belts, airbag sensors and airbag control unit
