Replacing Halogen Bulb For Left (or Right) High-Beam Headlight

63 99 002 - Replacing halogen bulb for left (or right) high-beam headlight





Warning!
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).





Note:
Headlight (2) removed for purposes of clarity.

Unlock spring wire clips (1) in direction of arrow.
Remove cover from headlight (2).

Installation Note:
Make sure cover is correctly seated on headlight (2).
Guides (3) must be exactly seated in associated locators (4).

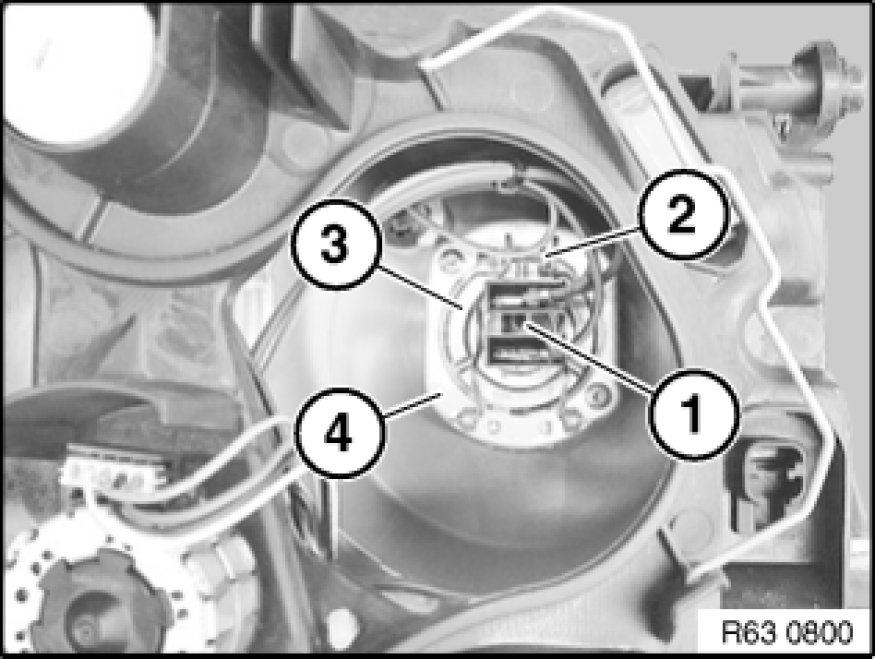

Disconnect plug connection (1).
Disengage spring wire clip (2).
Remove bulb (3) towards rear from headlight (4).

Installation Note:
Make sure bulb (3) is exactly seated in headlight (4).
Note bulb type Specifications.
