61 61 ... Adjusting Left or Right Windscreen Wiper

61 61 ... Adjusting Left Or Right Windscreen Wiper

Special tools required:

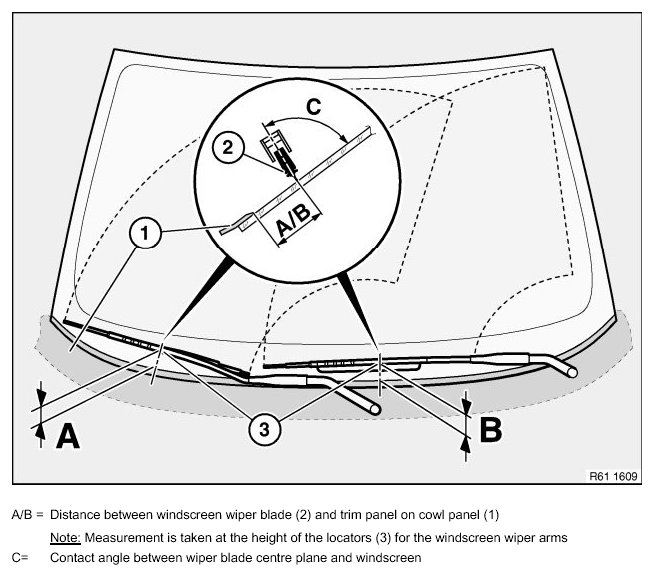

Correctly adjusting the contact angle of the wiper arms on the windscreen increases wiping quality. For adjustment, refer to the vehicle-specific repair instruction.

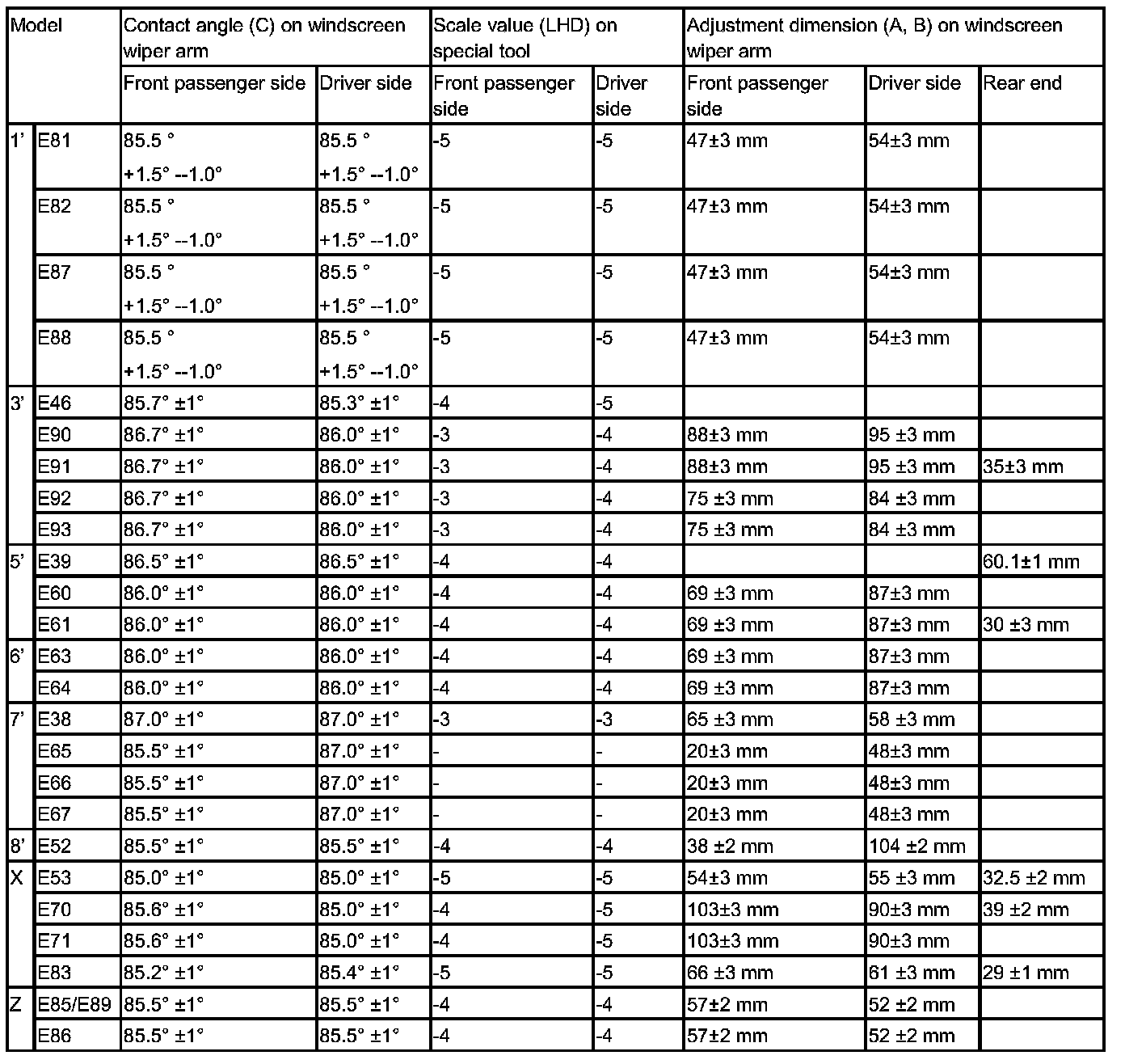

When adjusting with special tool 61 6 100, set the scale value in accordance with the following table.

For RHD vehicles, change the preceding sign of the scale values.
- LHD cars, scale range 0 to -10
- RHD cars, scale range 0 to +10
