Removing and Installing/Replacing Front Cover for Headlight Washer System on Left or Right (M Technic Aerodynamic Kit)

51 11 ... - Removing and installing/replacing front cover for headlight washer system on left or right (M Technic aerodynamic kit)

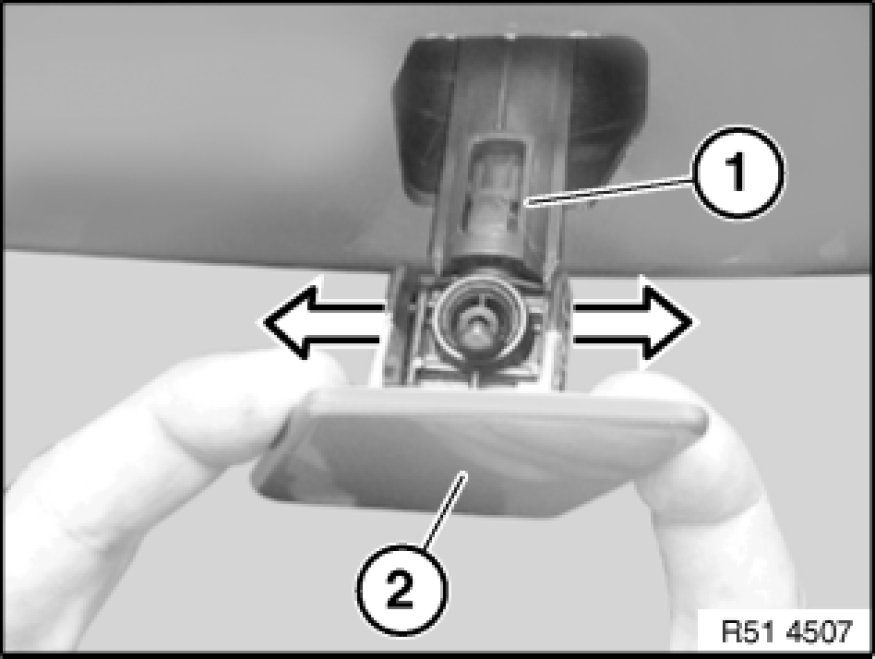

Slowly pull out spray nozzle (1) by cover (2).

Important!
Risk of damage!
When releasing cover (2), grip spray nozzle (1) firmly and then allow to slide back slowly

Release cover (2) sideways from spray nozzle (1).





Installation Note:

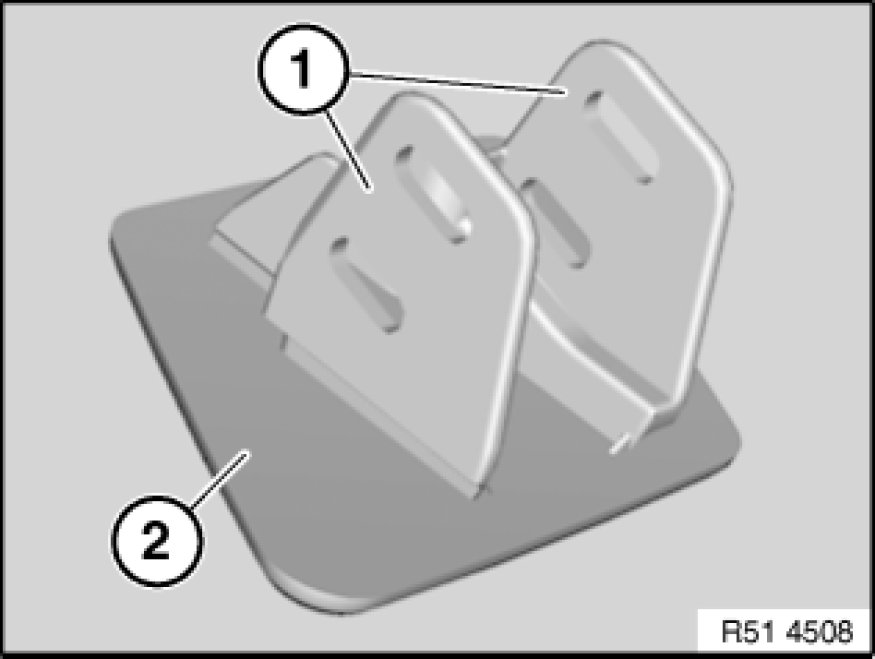

Guides (1) on cover (2) must not be damaged.
