51 37 265 Removing and Installing/Replacing Window Cavity Cover Strip For Door Window, Rear Left or Right

51 37 265 - Removing and installing/replacing window cavity cover strip for door window, rear left or right





Important!
The "Instructions on fitting window guides" serve as the basis for this repair instruction and must be observed without fail.





Necessary preliminary tasks:
- Release rear side trim panel upper section Removing and Installing/Replacing Rear Left or Right Upper Side Trim Section and place to one side





Note:
Before removing window cavity cover strip, make not of exact installation position with respect to adjoining components.





Important!
Risk of damage!
If reusing the existing window cavity cover strip (3), make sure it is not bent.

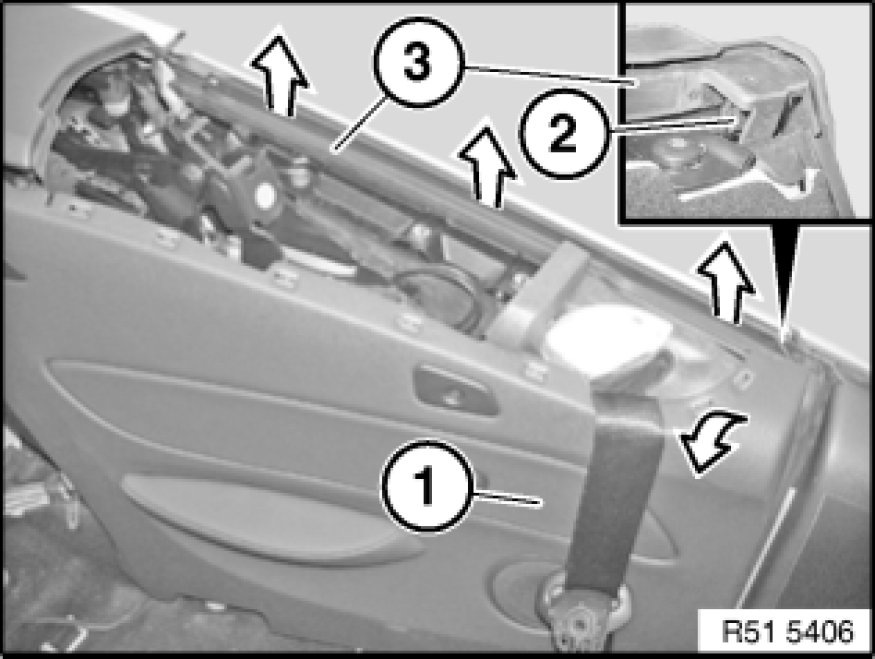

Release side trim panel lower section (1) at top in area of B-pillar and pull inwards.

Release catch (2) and, starting at front, pull off window cavity cover strip (3) towards top.

Installation Note:
Moisten window cavity cover strip (3) prior to fitting with approved anti-friction agent.
Make sure window cavity cover strip (3) is correctly seated.

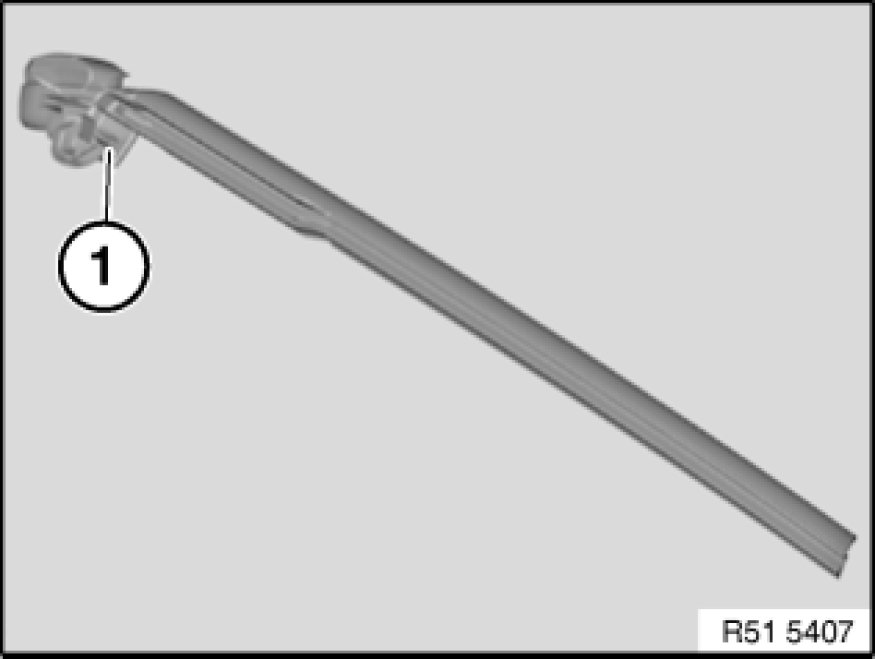

Installation Note:
Catch (1) must not be damaged.
