23 12 089 Replacing Radial Shaft Seal For Selector Shaft (GS6-53BZ/DZ)

23 12 089 - Replacing radial shaft seal for selector shaft (GS6-53BZ/DZ)





Special tools required:
- 23 0 210 23 0 210 Extractor
- 23 0 220 23 0 220 Impact Bush





Important!
After completion of work, check transmission oil level Service and Repair.

Use only approved transmission oil.

Failure to comply with this instruction will result in serious damage to the transmission.





Necessary preliminary tasks:
- Shift transmission into 2nd gear
- Unflange propeller shaft from transmission.
Tasks are described in Removing propeller shaft 26 11 000 Removing and Installing Propeller Shaft (Inserted) Completely.





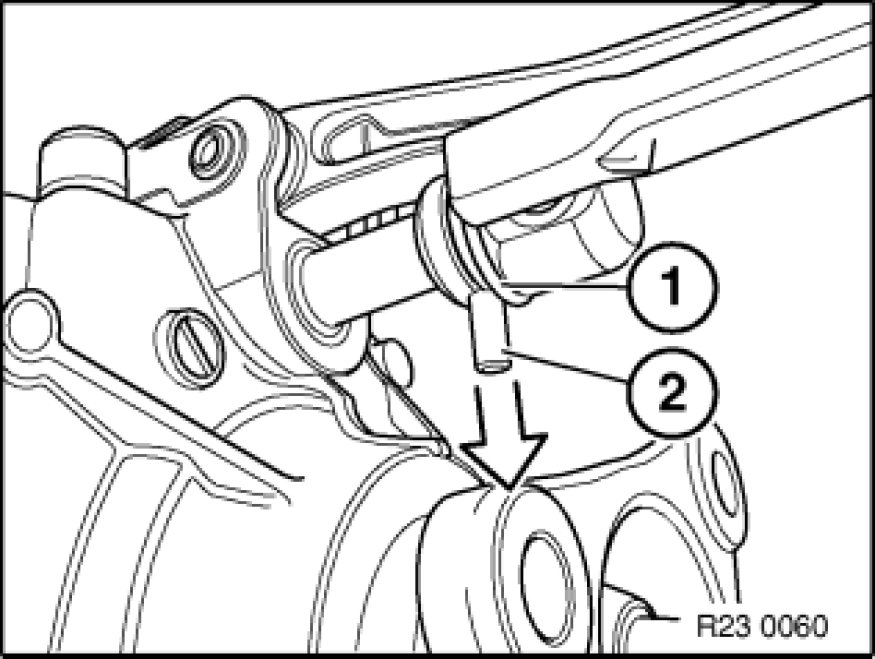

Lever retaining ring (1) out of groove with a small screwdriver.

Slide locking ring (1) towards rear.

Drive out cylinder pin (2).

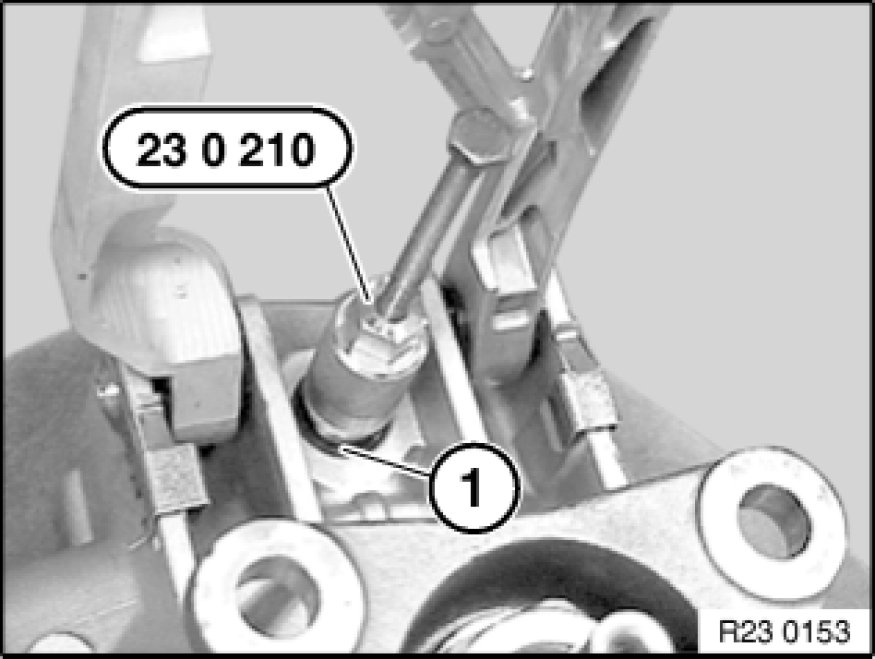

Screw in special tool 23 0 210 23 0 210 Extractor until it is firmly connected with radial seal (1).

Pull out radial seal with special tool 23 0 210 23 0 210 Extractor.





Coat sealing lips of radial seal and selector shaft with transmission oil.

Drive in radial seal with special tool 23 0 220 23 0 220 Impact Bush.
