31 35 005 Removing and Installing/Replacing Push Rod (Stabilizer Link) For Left/Right Stabilizer

31 35 005 Removing and installing/replacing push rod (stabilizer link) for left/right stabilizer





Note (M3 only):
Make sure stabilizer link is installed in correct position.

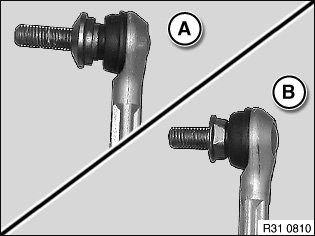

A. Connection, stabilizer link to spring strut
B. Connection, stabilizer link to stabilizer

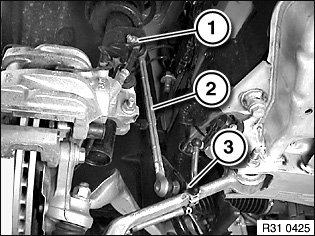

Release nut (1) and remove bracket for brake hose.

Release nut (3) and remove stabilizer link (2).

Installation:
Replace self-locking nuts.

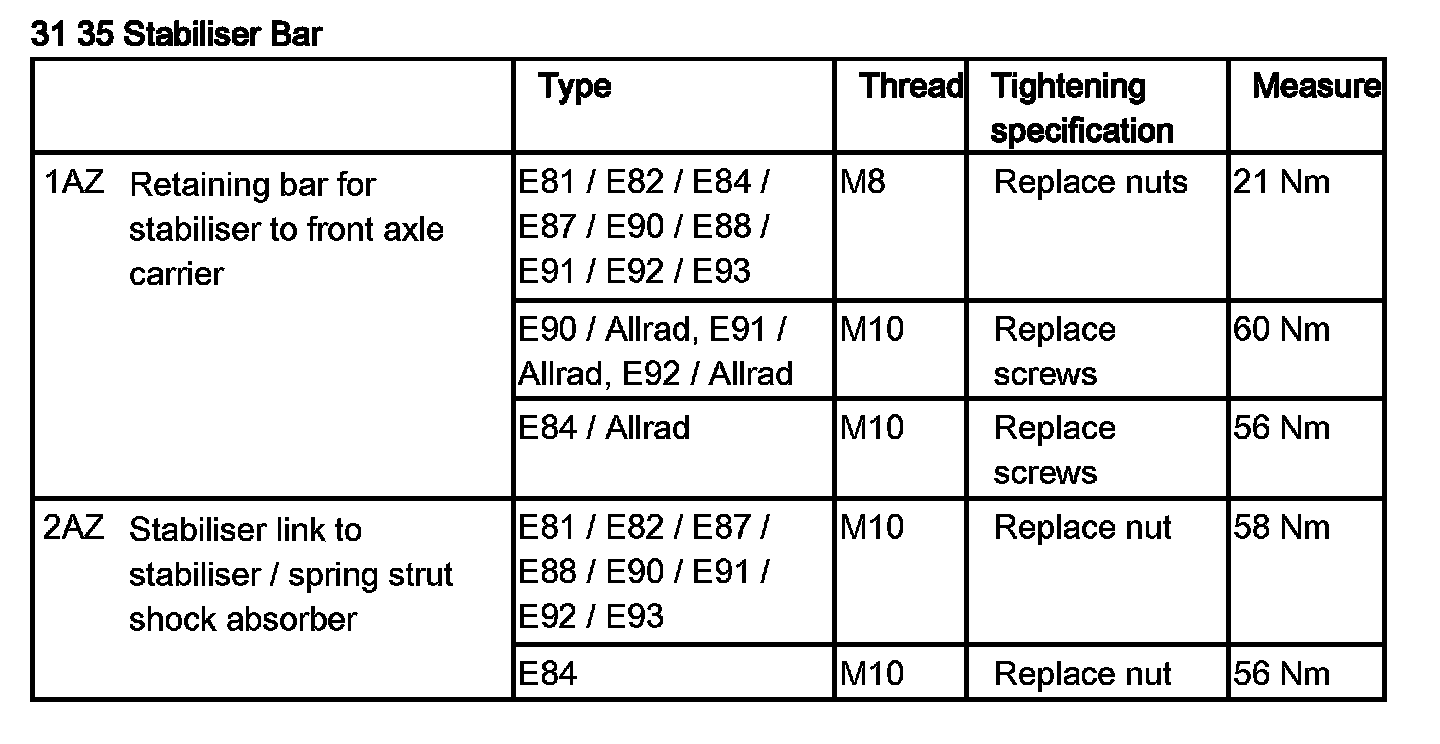

Tightening torque 31 35 2AZ.
