FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2008
>>
135i Convertible (E88) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
F23
>>

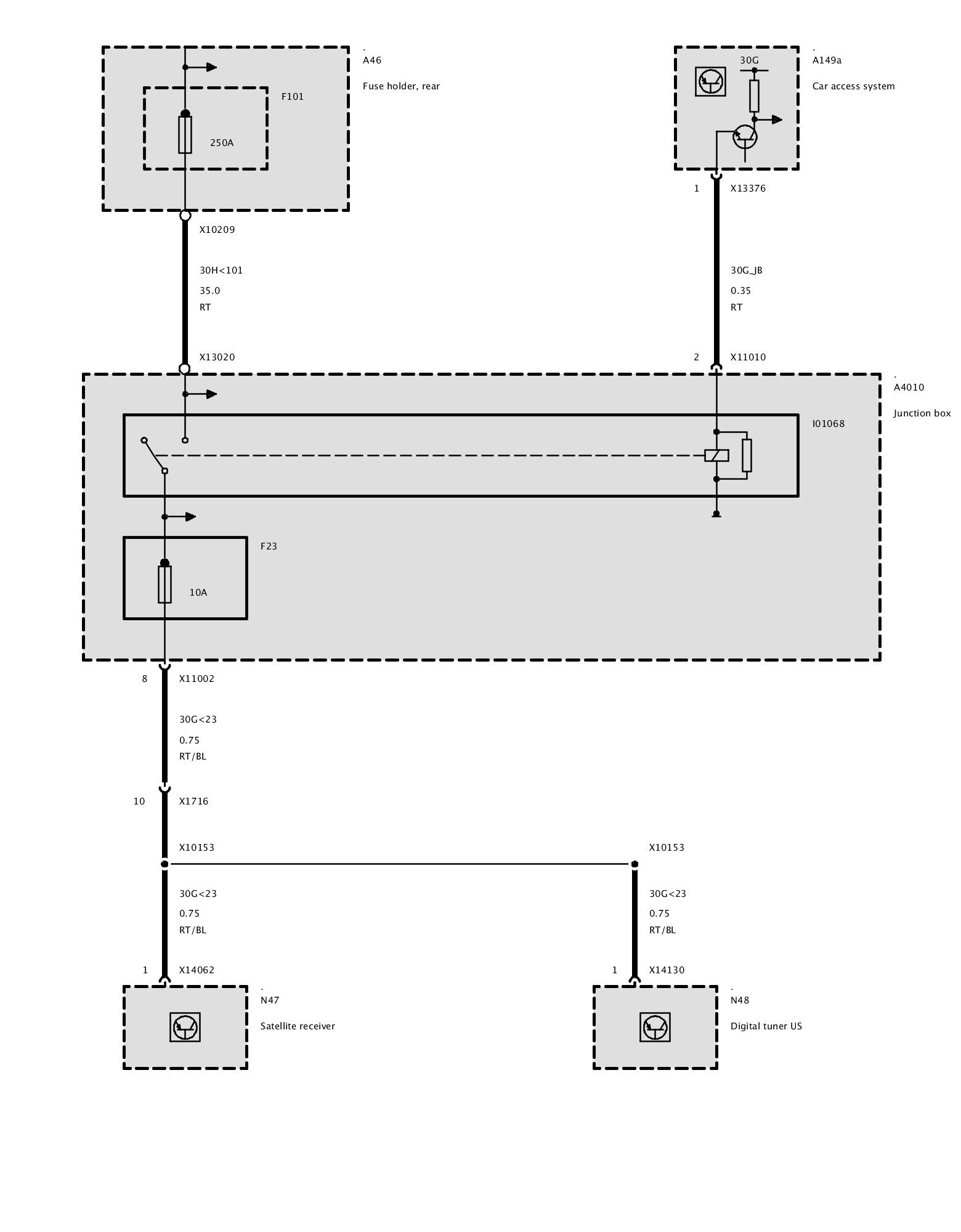

Fuse F23 (USA_LHD As of 03/07 Up to 09/07)
Fuse F23 (USA_LHD As of 03/07 Up to 09/07)
Fuse F23 (USA_LHD As of 03/07 Up to 09/07)
