FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2008
>>
135i Convertible (E88) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
F20
>>
Fuse F20 (1 Series_E81/E82/E87/E88 Up to 03/07)
Fuse F20 (1 Series_E81/E82/E87/E88 Up to 03/07)

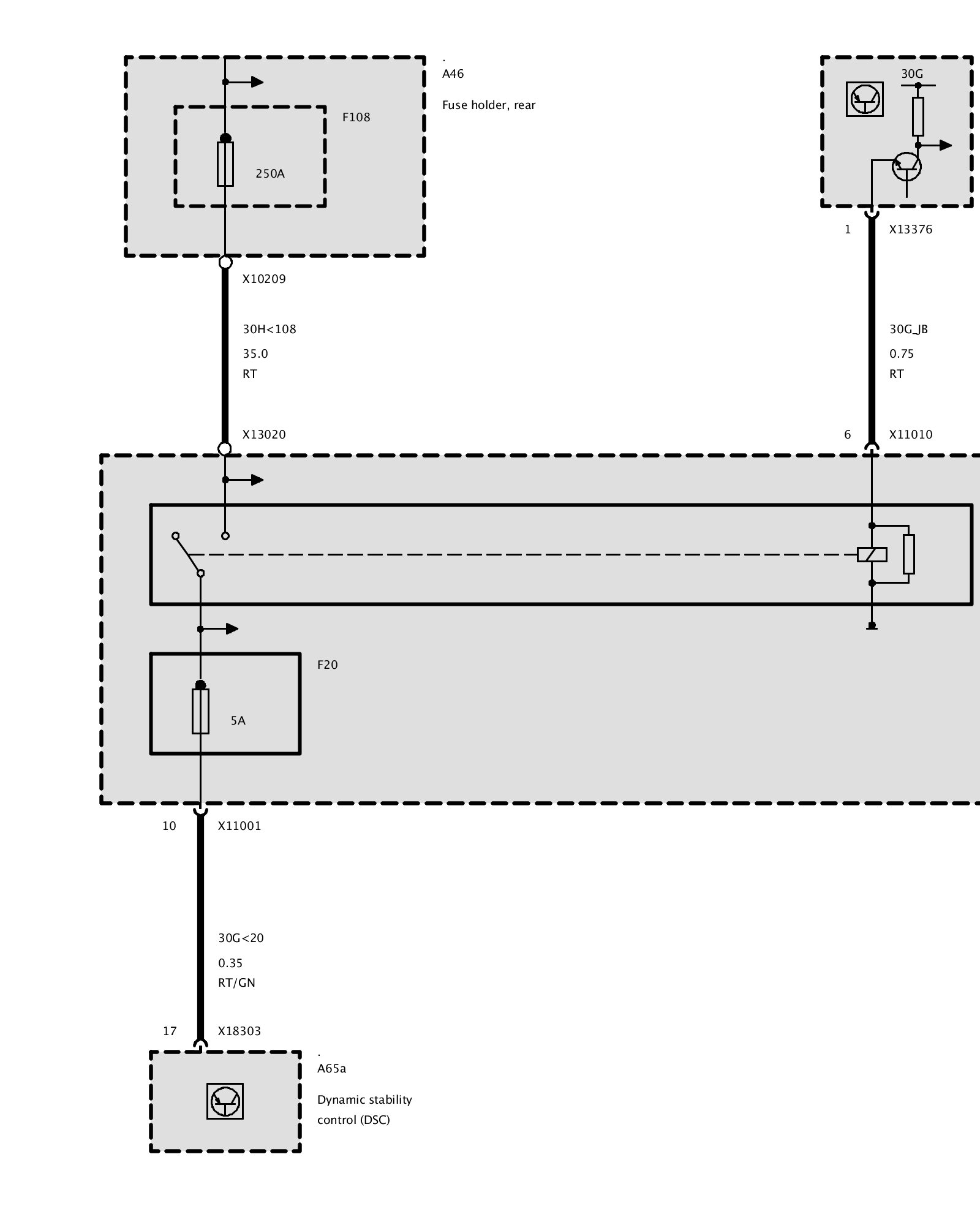

Fuse F20 (1 Series_E81/E82/E87/E88 or (3 Series_E90/E91/E92/E93 Up to 09/05))

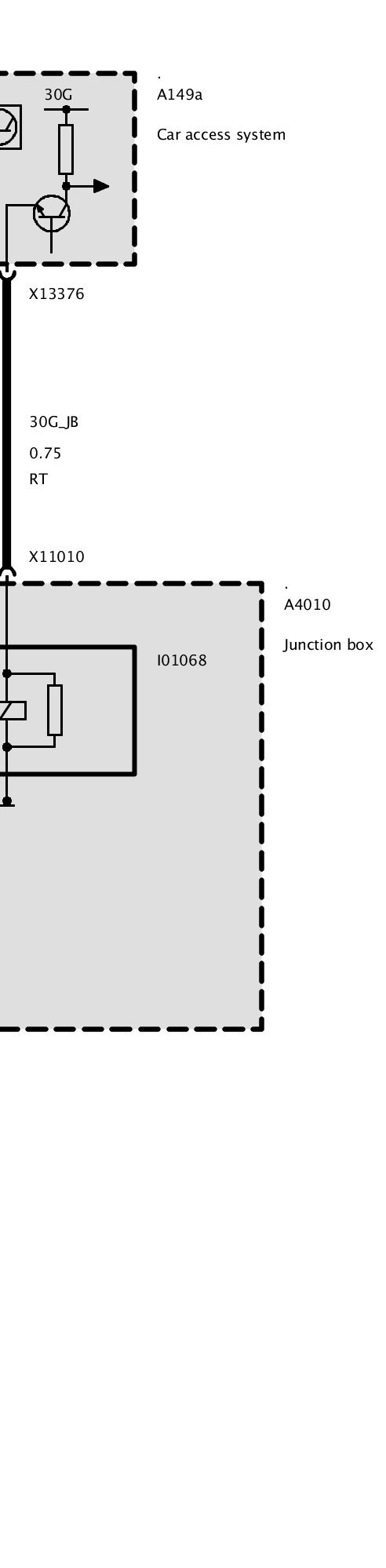

Part 1:
Part 2:
