Solar Sensor: Service and Repair

64 11 992 - Removing and installing or replacing solar sensor





Special tools required:

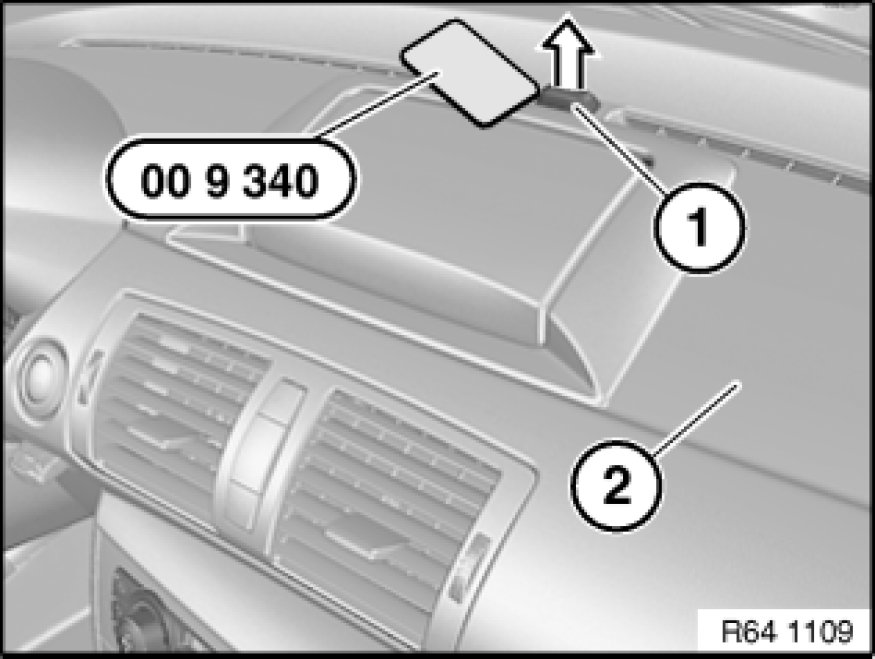

Lever out solar sensor (1) with special tool 00 9 340 in direction of arrow.

Note:
Secure disconnected wiring harness of solar sensor (1) against falling out below instrument panel trim (2).

Disconnect associated plug connection and remove solar sensor (1) from instrument panel trim (2).
