16 11 350 Replacing Clamping Bands For Fuel Tank

16 11 350 - Replacing clamping bands for fuel tank





Necessary preliminary tasks:
- Partially detach rear underbody panelling Removing and Installing/Replacing Rear Left or Right Underbody Panelling





Important!
Secure fuel tank against slipping and falling out.

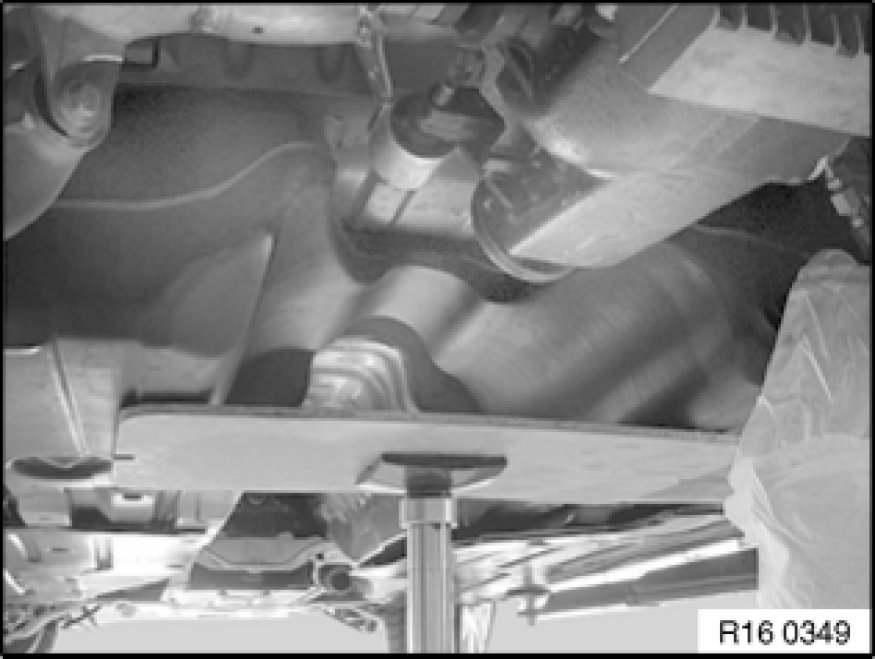

Heavily support the fuel tank.

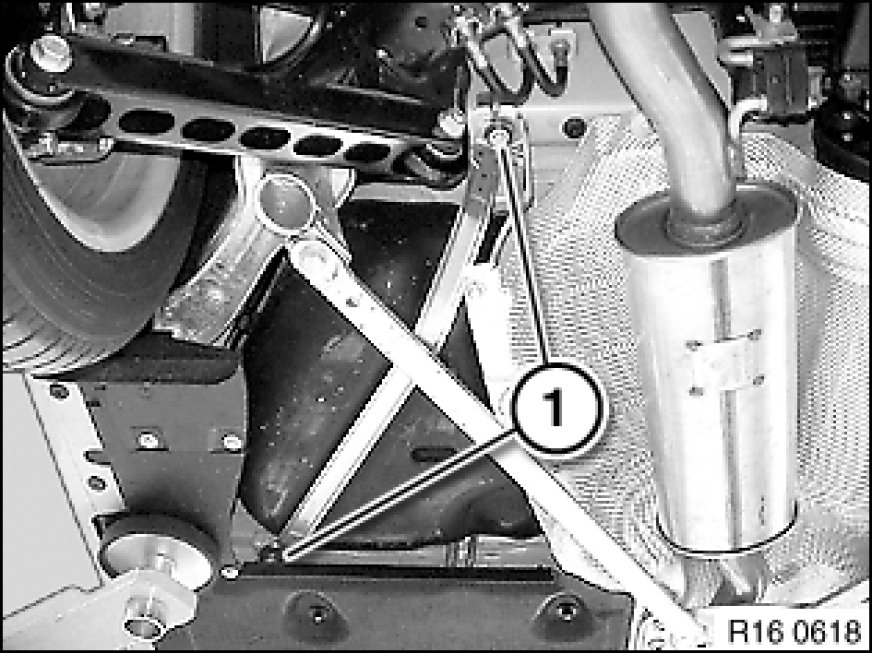

Release screws (1) and remove clamping band.

Installation:
Tightening torque 16 11 2AZ 16 11 Fuel Tank and Mounting Parts.
