18 32 082 Removing and Installing/Replacing Exhaust Pipe with Catalytic Converter for Cylinders 4-6

18 32 082 - Removing and installing/replacing exhaust pipe with catalytic converter for cyl. 4-6 (N54)





Warning!
Scalding hazard!
Only perform these tasks after exhaust system has cooled down.





Necessary preliminary tasks:
- Remove exhaust system Service and Repair.





Note:

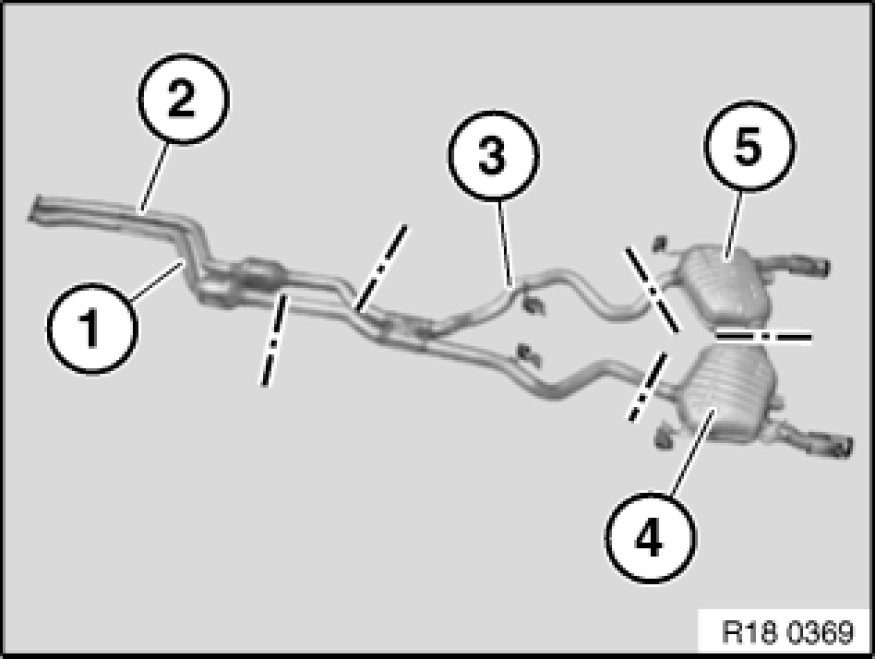

Cutting line for exhaust pipe (2) is designated by a notch in the pipe.
Cut exhaust pipe (2) at marked point and deburr.





Installation Note:

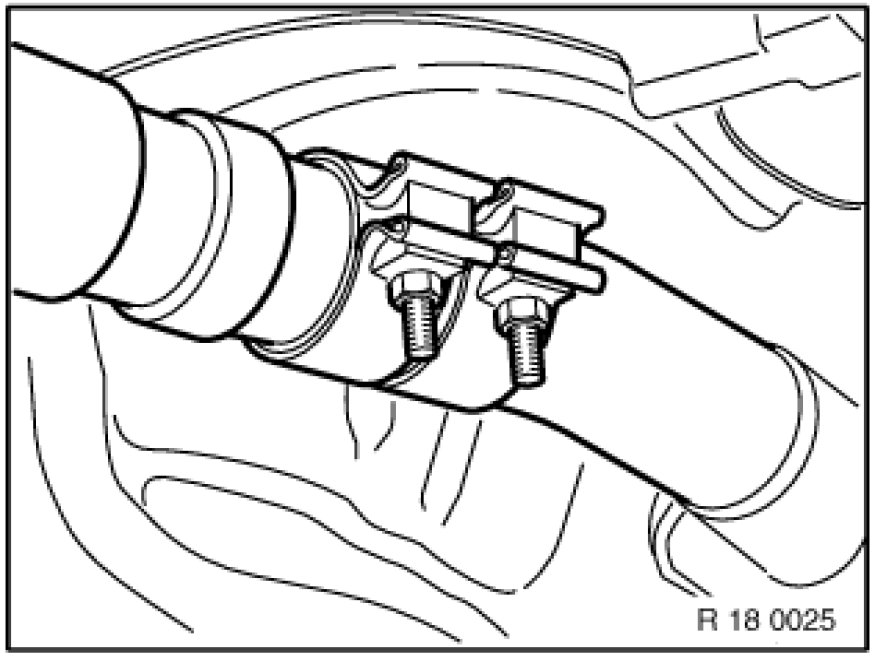

Connect exhaust pipe to centre muffler by means of clamp and align.
Align clamp and tighten down.
Tightening torque 18 00 5AZ [1][2]18 30 Exhaust Pipe with Catalytic Converter / Complete System.





Note:
Check exhaust system for leaks.
