Replacing Bulb for Turn Indicator, Front Left

63 99 273 - Replacing bulb for turn indicator, front left





Warning!
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights)

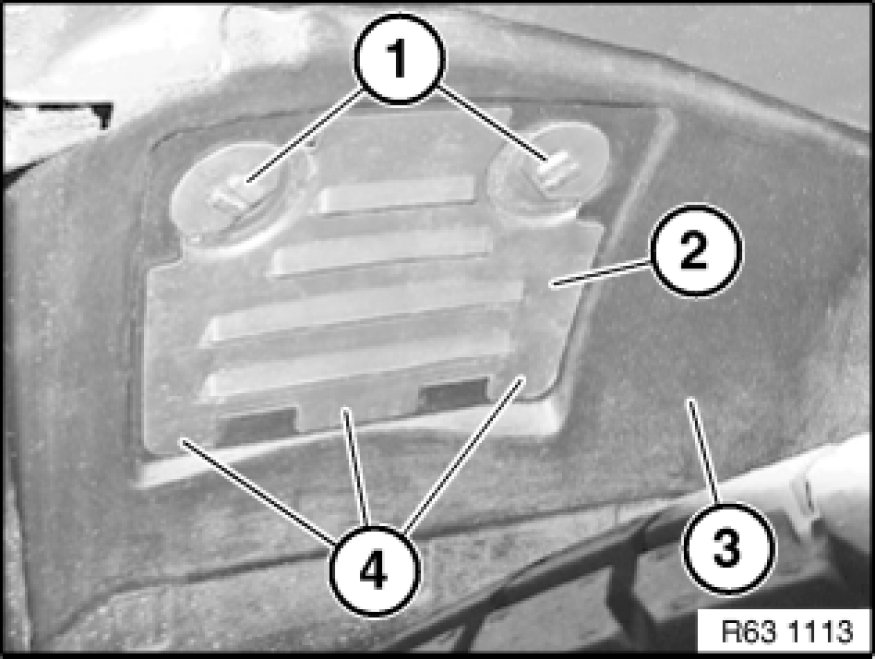

Turn locks (1) counterclockwise through 180°.
Remove repair cover (2) from wheel arch cover (3).

Installation Note:
Make sure guides (4) of repair cover (2) are correctly seated in wheel arch cover (3).





Note:
Headlight removed for purposes of clarity.

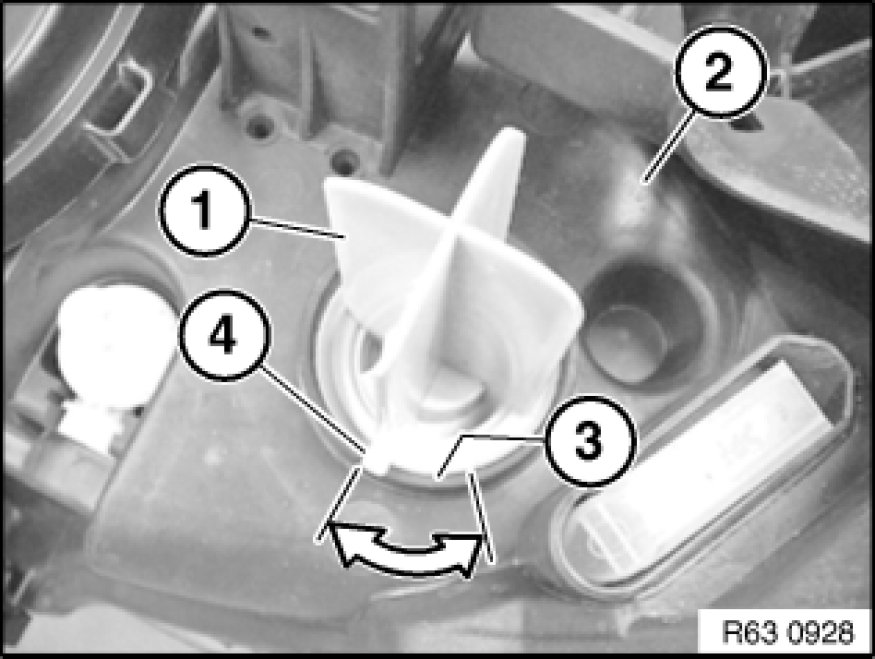

Turn bulb holder (1) counterclockwise and pull towards rear out of headlight (2).

Installation Note:
Lug (4) on bulb holder (1) must be correctly seated in guide (3).

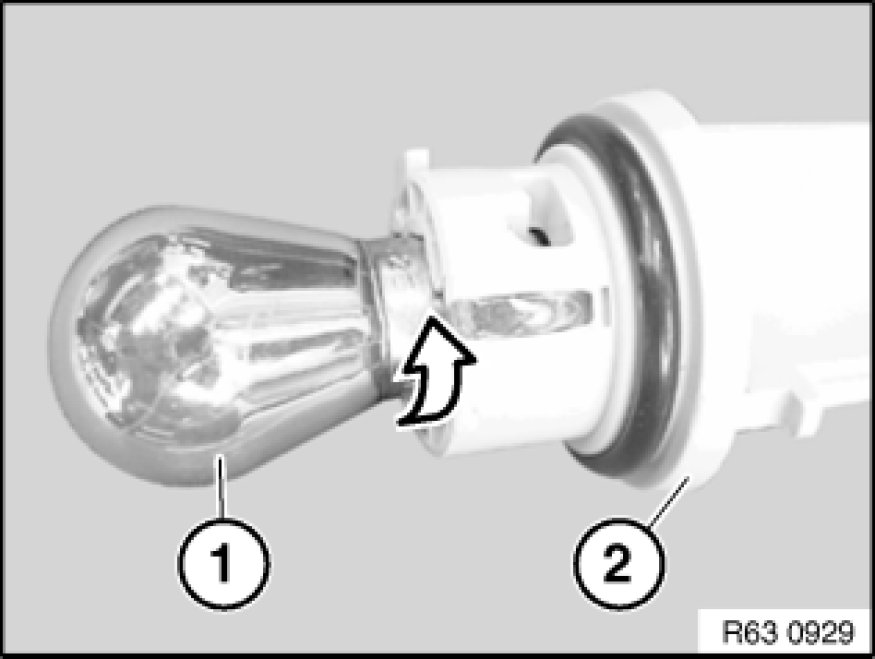

Turn bulb (1) in direction of arrow and remove from bulb holder (2).

Installation Note:
Note type of bulb Specifications.
