With iDrive

65 50 055 Removing And Installing/replacing Central Information Display







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary tasks:
- Remove centre fresh-air grille
- Remove Car Communication Computer

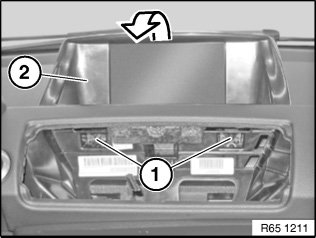

Release screws (1).

Lever out central information display (2) in direction of arrow.

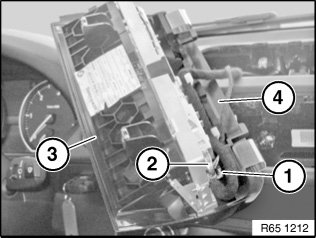

Unfasten plug connection (1) and disconnect.

Disconnect plug connection (2) and release associated wiring harness.

Installation:
Make sure wiring harness is correctly laid and secured.

Remove central information display (3).

Installation:
Trim (4) must be correctly engaged.
