64 11 909 Removing and Installing/Replacing Footwell Temperature Sensor

64 11 909 - Removing and installing/replacing footwell temperature sensor





Necessary preliminary tasks:
- Remove lower left trim from instrument panel 51 45 180 Removing and Installing Trim For Instrument Panel, Bottom Left

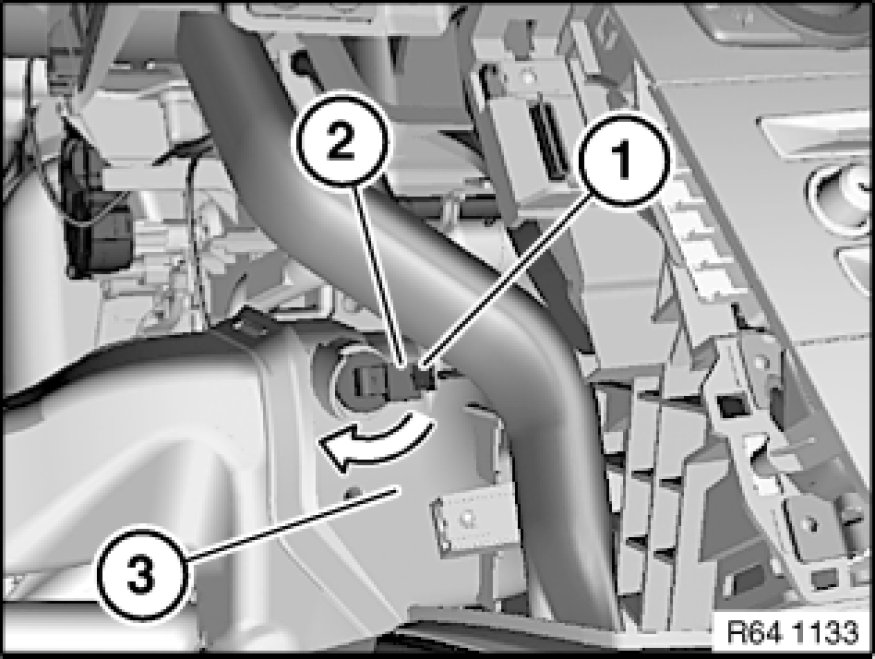

Disconnect plug connection (1).
Turn footwell temperature sensor (2) in direction of arrow and pull out of heater/air conditioner.

Installation:
Make sure footwell temperature sensor (2) is correctly seated in heater/air conditioner (3).
