Fan Motor: Evaluate the Water Damage to the Fan Motor

Fan Motor: Evaluate The Water Damage To The Fan Motor

Evaluate the fan motor

- Fan motor not OK

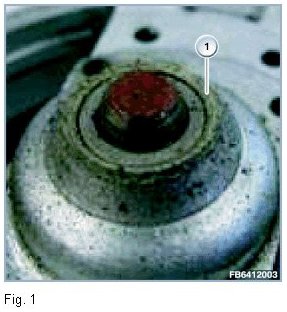

Fan motor with grease starting to emerge from bearings: yellowish coating in the area of the ball bearing (see Point 1).
With comparable or greater damage, the fan motor must be replaced.







- Example of an OK fan motor
Example of a fan motor after approx. 150,000 km.
No replacement of the fan motor required.
