Blower Motor Resistor: Service and Repair

64 11 225 - Replacing controller for heater/air conditioner fan





Necessary preliminary tasks:
- Remove heater/air conditioner fan Service and Repair

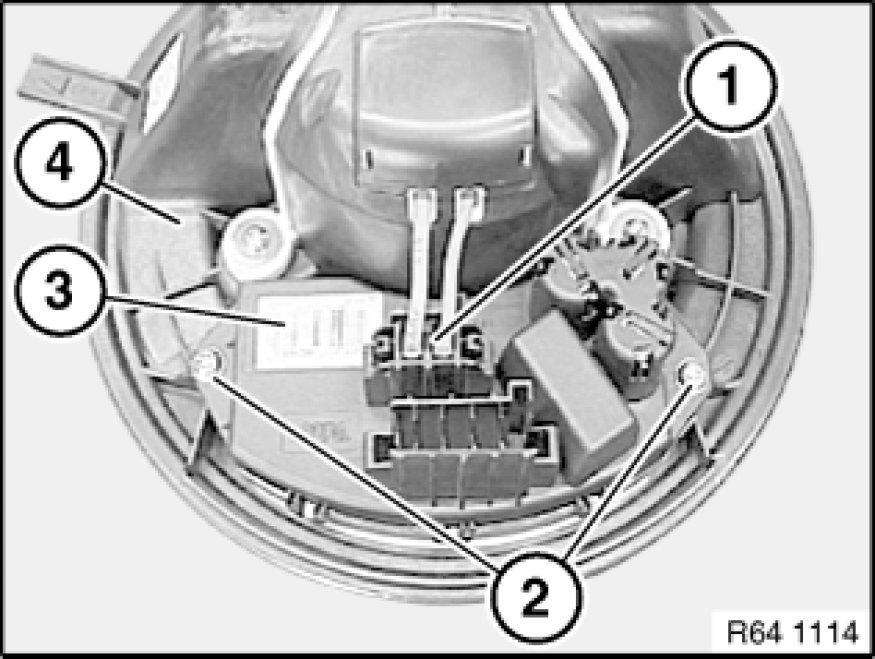

Unfasten plug connection (1) and disconnect.
Release screws (2).
Remove controller for heater/air conditioner fan (3) in upwards direction from fan (4).
