Removing and Installing/Replacing Rear Muffler

18 12 030 - Removing and installing/replacing rear muffler (N54)





Special tools required:
- 31 2 220





Warning!
Scalding hazard!

Only perform these tasks after exhaust system has cooled down.

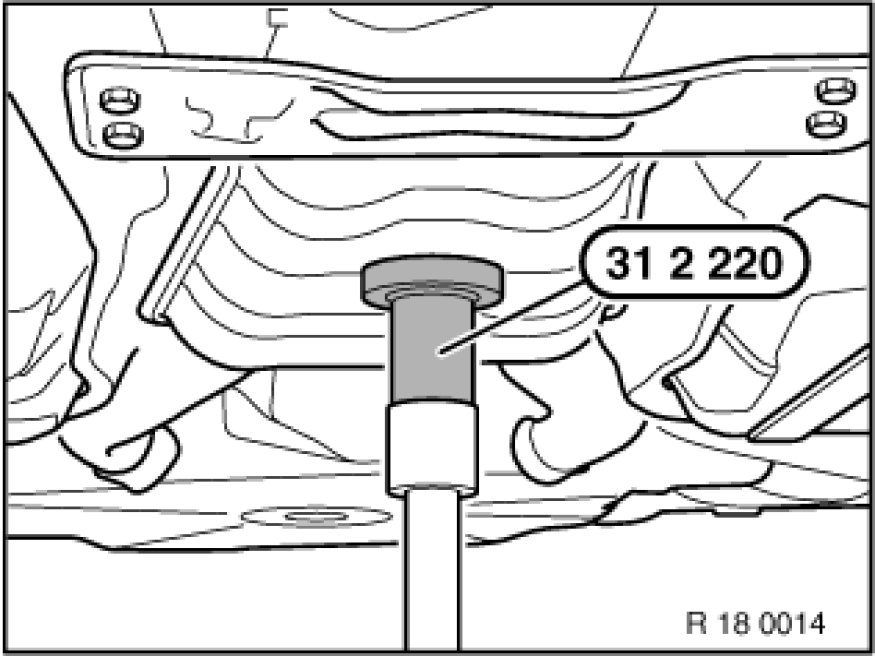

Support rear silencer with special tool 31 2 220.





Release screws.





Unfasten nut.

Tightening torque 18 20 4AZ 18 20 Exhaust System Suspension.





Detach hose from vacuum unit.

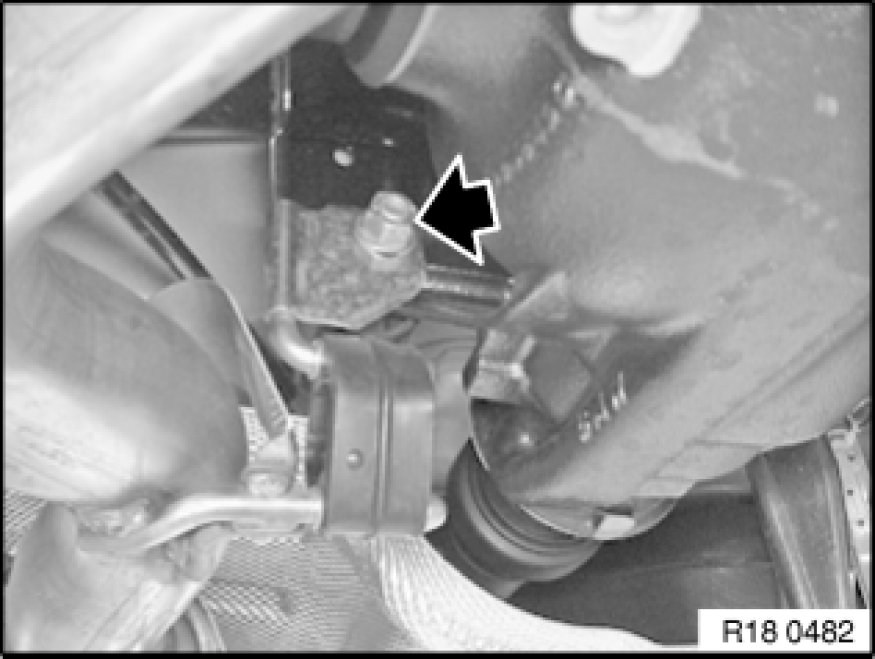

Unfasten nut.

Picture shows right bracket, procedure for left side is identical.

Tightening torque 18 20 4AZ 18 20 Exhaust System Suspension.

Remove exhaust system.





Note:
Add final details to vehicle.

Check exhaust system for leaks.
