Replacing Left Engine Support Arm

22 11 110 - Replacing left engine support arm (N54)





Necessary preliminary tasks:

- Secure engine in installation position

- Remove air intake filter housing Service and Repair.

- Remove charge air duct. 11 61 368 Removing and Installing/Replacing Rear Left Charge-Air Duct

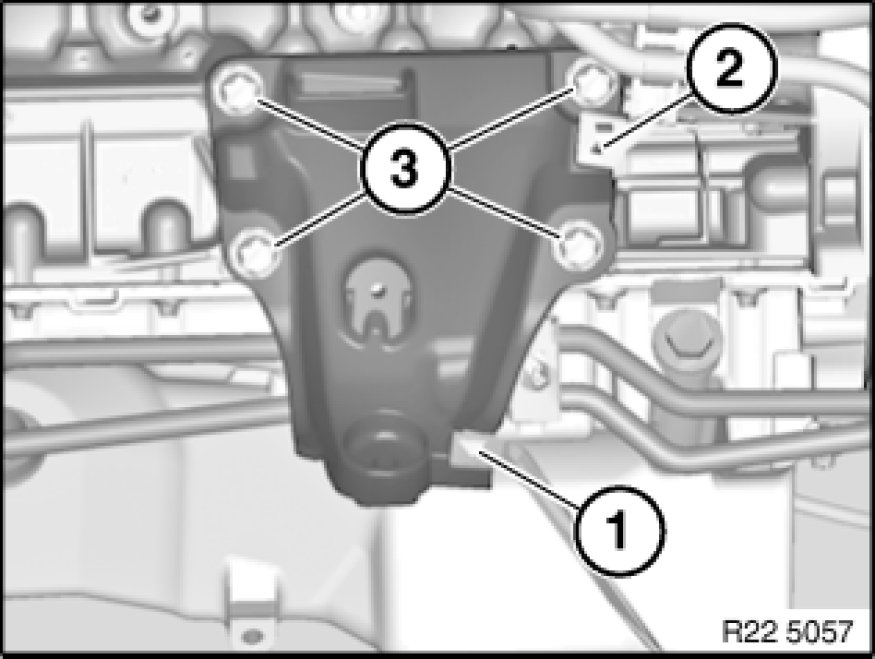

Release grounding strap (1) from engine support arm.
Release screw (2) and remove bracket.
Release screws (3).
Remove engine support arm.
Tightening torque 22 11 3AZ Specifications
