64 11 208 Replacing Heater Core

64 11 208 Replacing Heat Exchanger

Special tools required:







IMPORTANT:

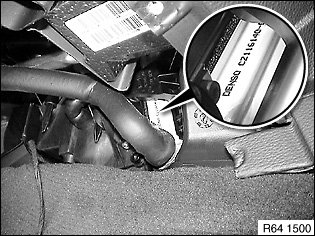

Determine manufacturer of installed heat exchanger (Denso or Behr) before ordering spare parts.

Remove trim panel for pedal assembly.

Installation:
Up to 12/2009 pipes must be replaced as well.

From 01/2010 pipes are automatically integral parts of the repair kit.

Refer to Electronic Parts Catalogue.







Necessary preliminary tasks:
- Remove heater







Release screws (1).

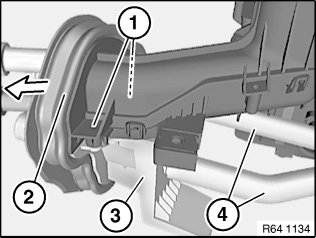

Slide rubber grommet (1) with foam seal forward slightly.

Carefully feed pipe holder (3) with pipes (4) past rubber grommet (2).

Installation:
If necessary, replace rubber grommet (1) and/or foam seal.

Make sure rubber grommet (1) is correctly seated on pipe holder (3).

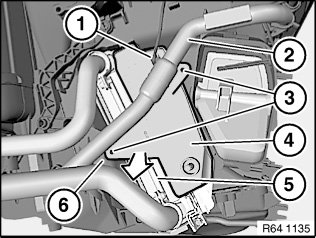

If necessary, remove coolant hose (2).

Release screws (3) and remove cover.

NOTE: Diesel version only:

Unfasten plug connection (1) and disconnect.

Withdraw electric auxiliary heater (4) in direction of arrow.

Remove heat exchanger (5) from heater/air conditioner (6).

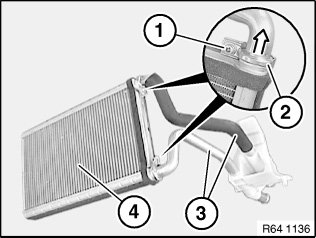

Release screws (1) and slide screw clamps (2) forwards slightly.

Remove pipes (3) from heat exchanger (4).

Installation:
Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.







IMPORTANT:

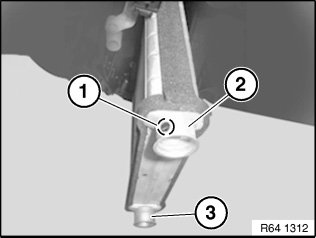

Inflow connection (3) may only be positioned at the bottom.

When installing, make sure that the return-flow connection (2) (larger opening) marked with a black dot (1) is positioned at the top.

Inflow connection (3) accordingly may only be positioned at the bottom.
