Power and Ground Distribution
>>
System Diagram
>>

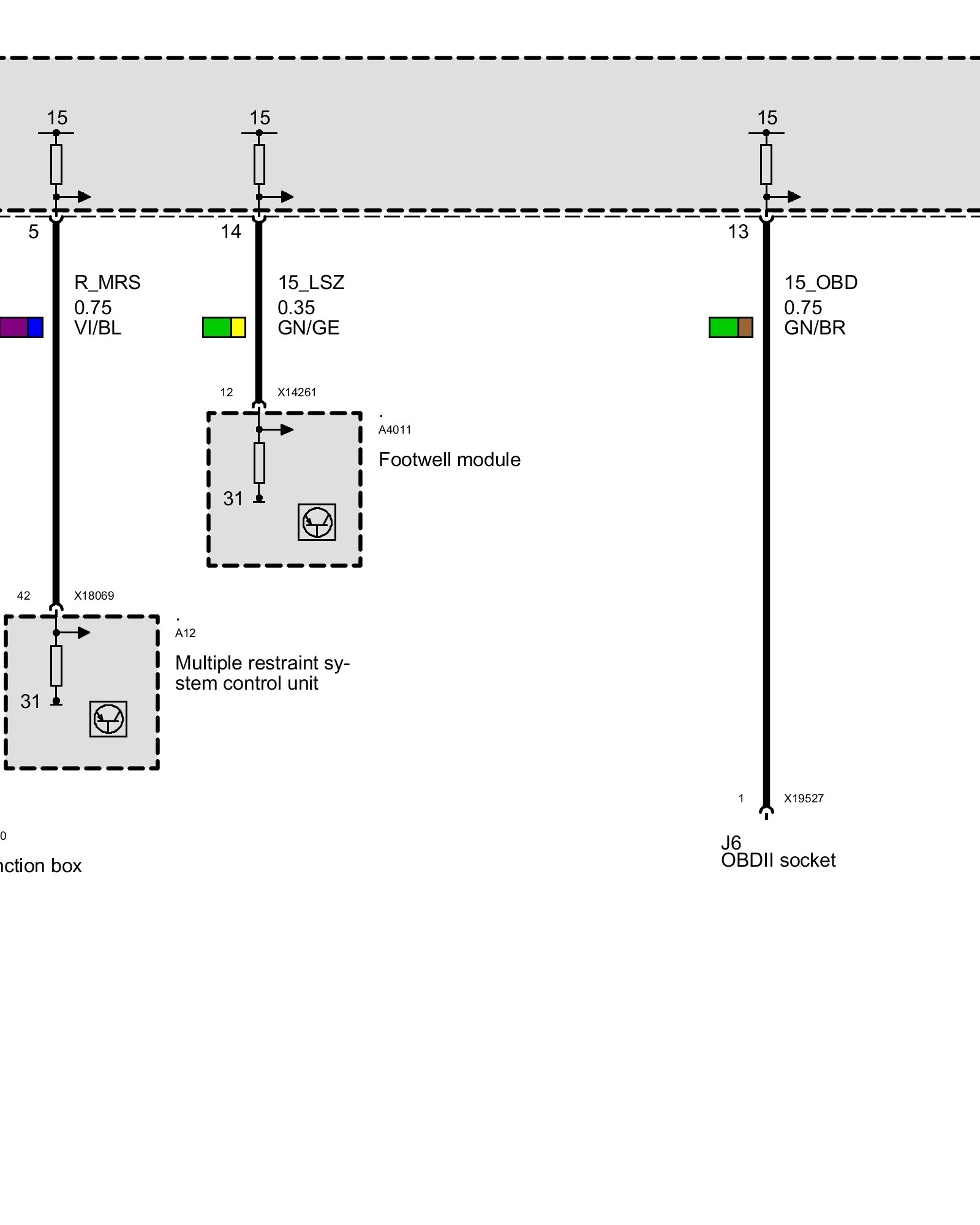

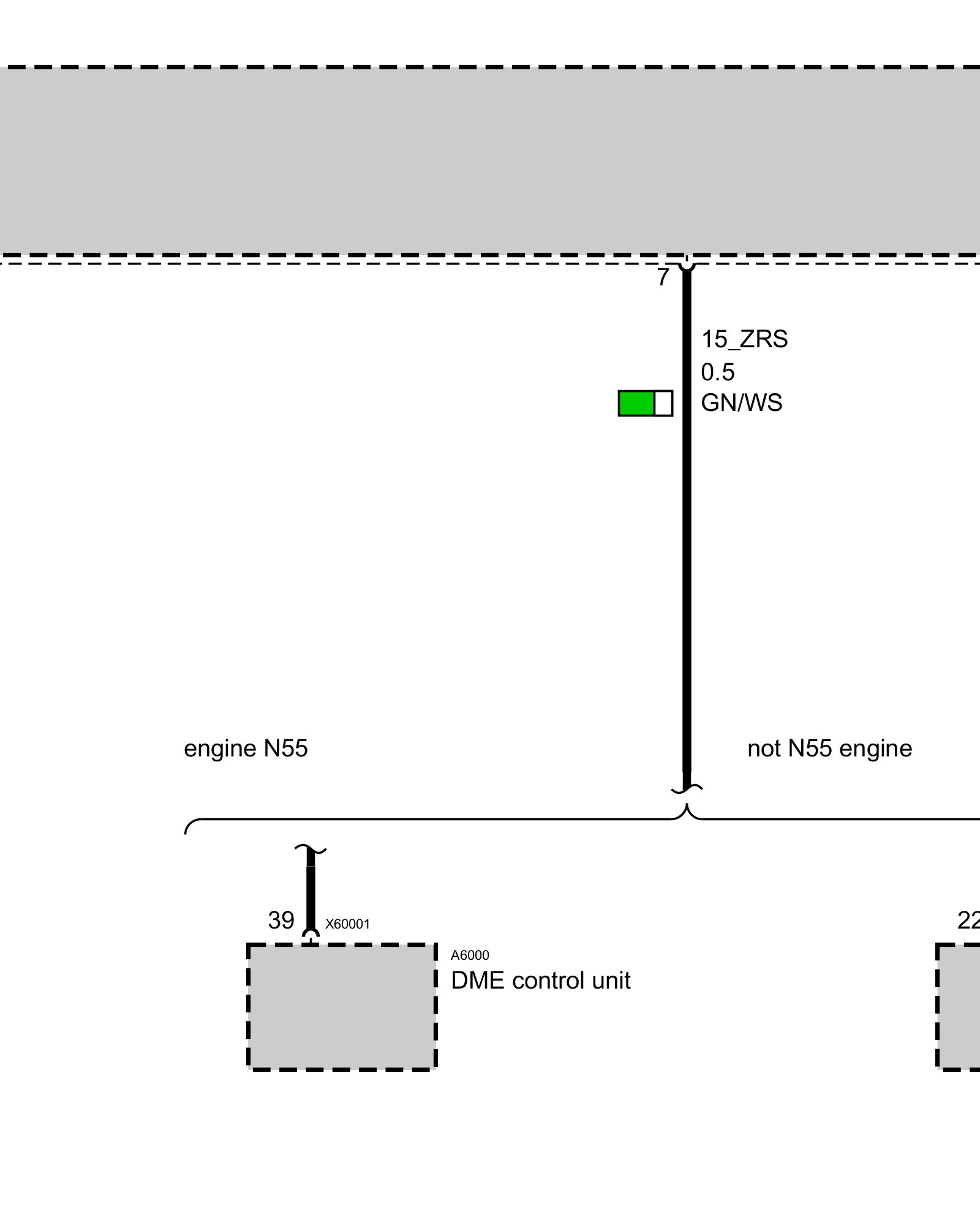

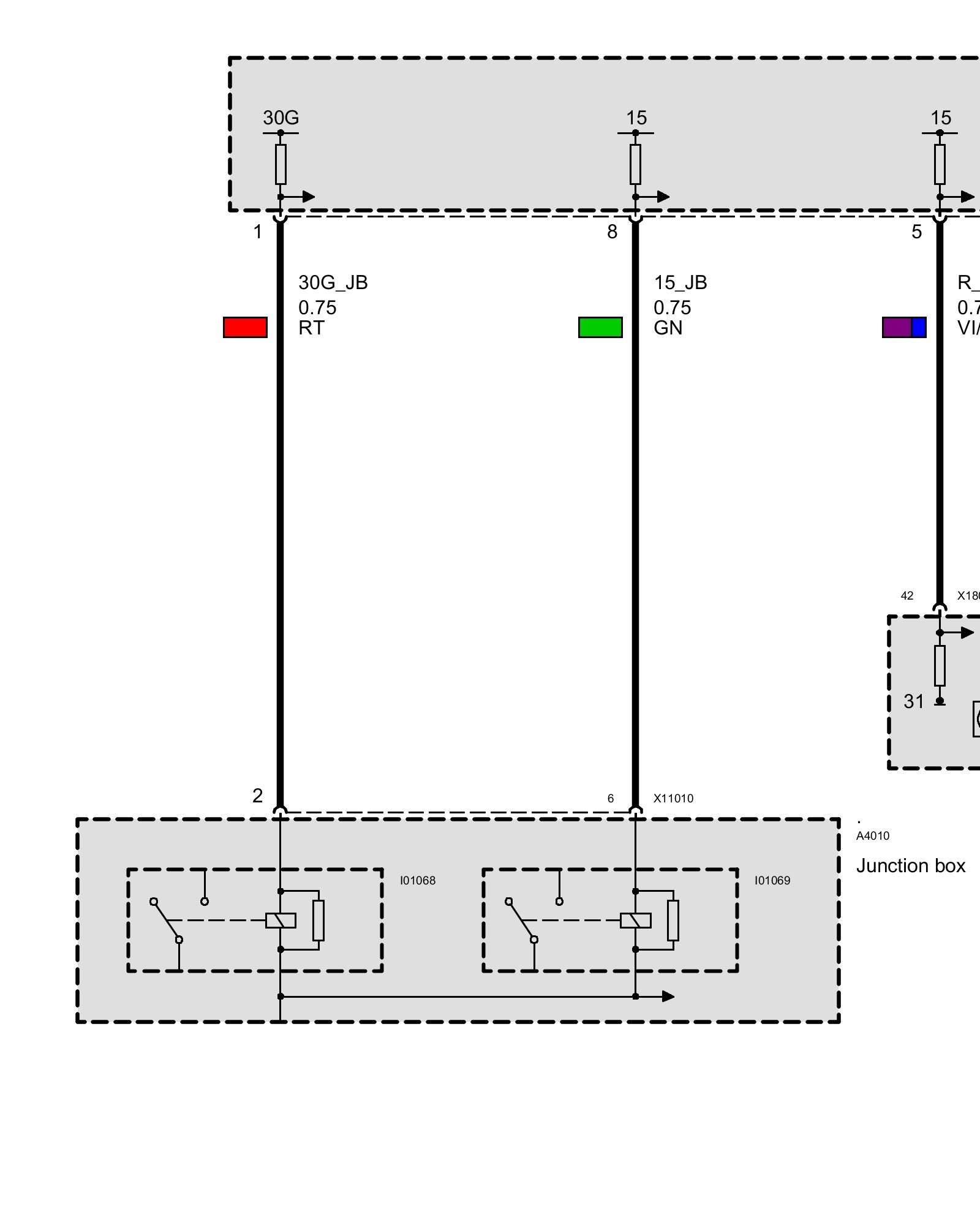

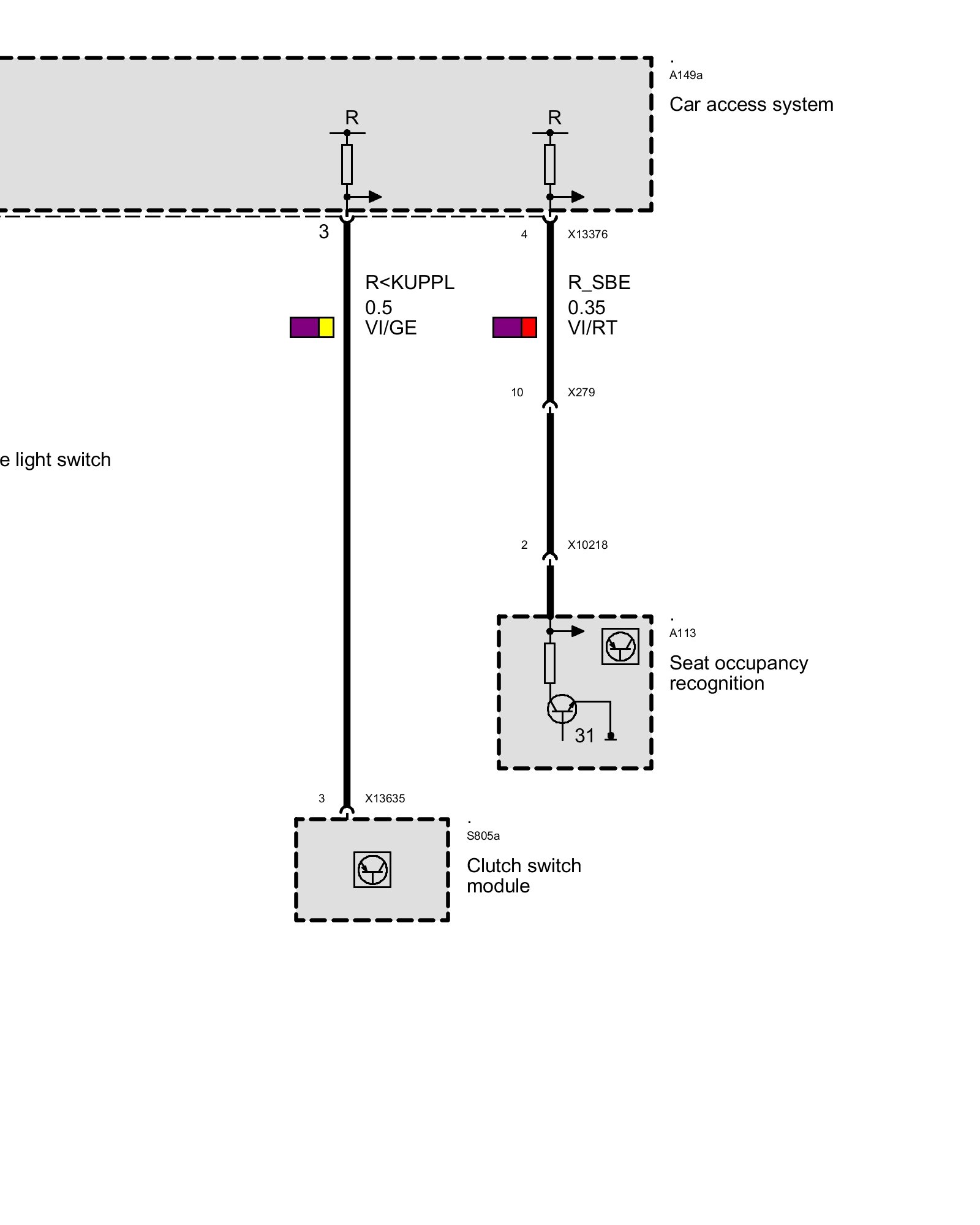

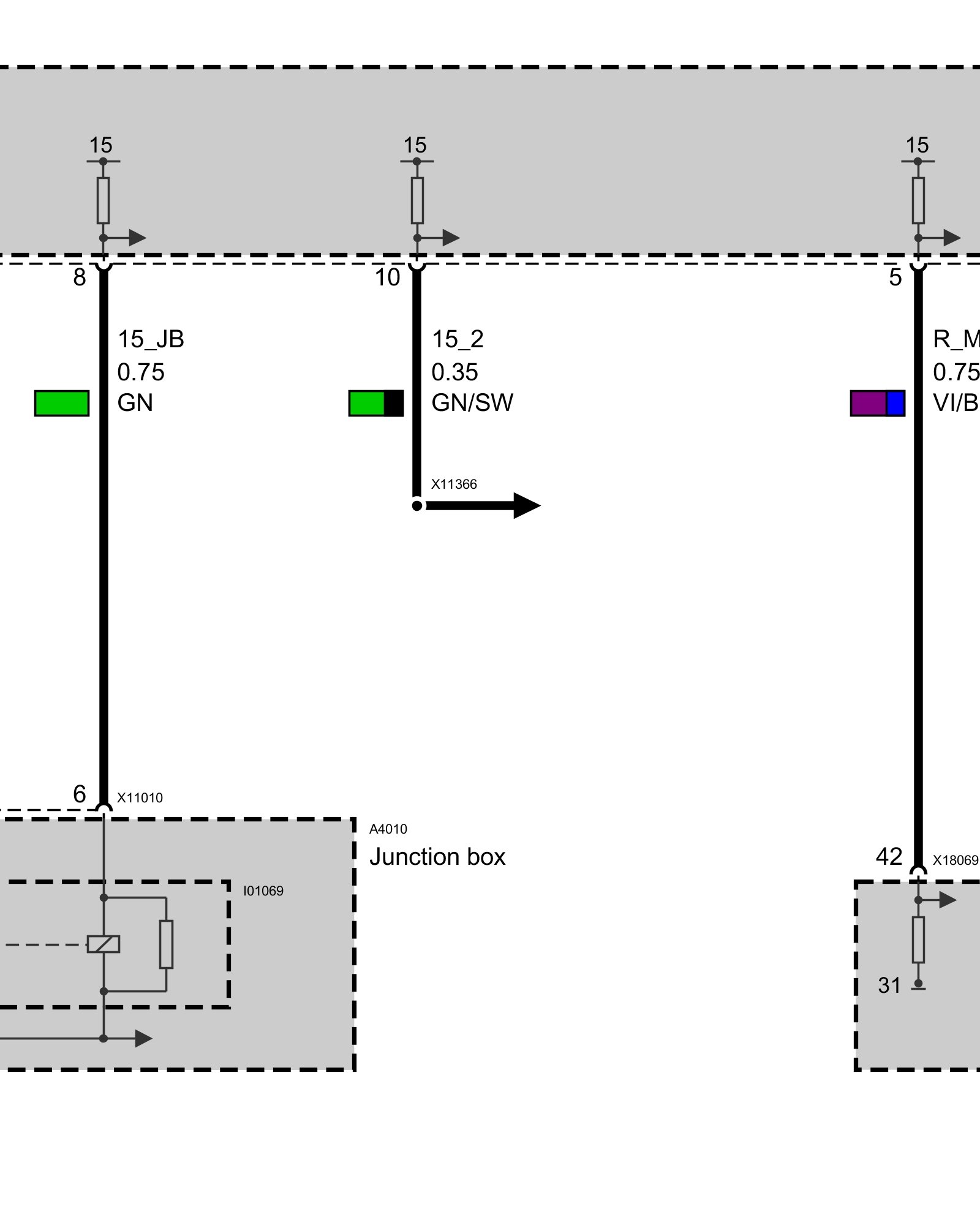

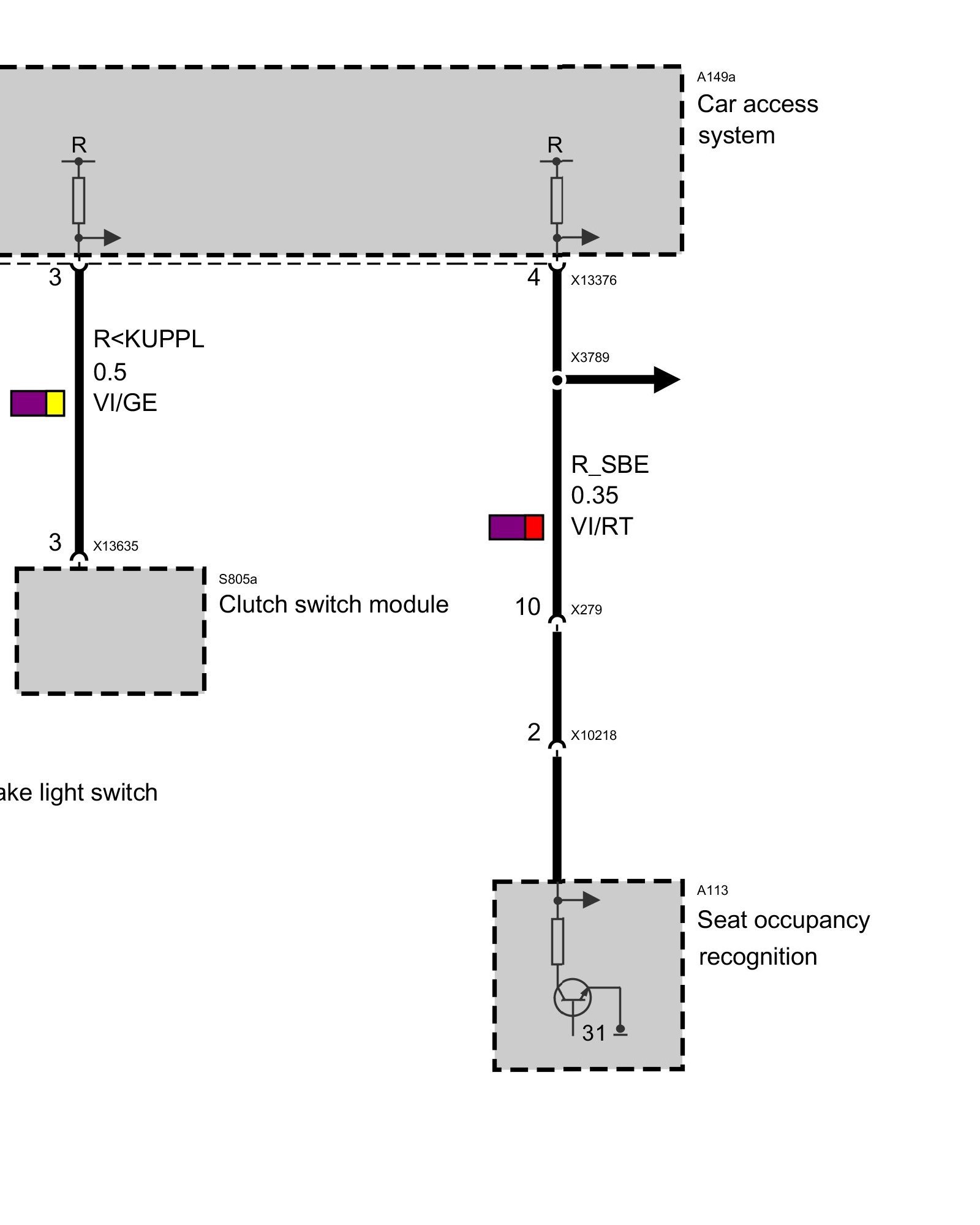

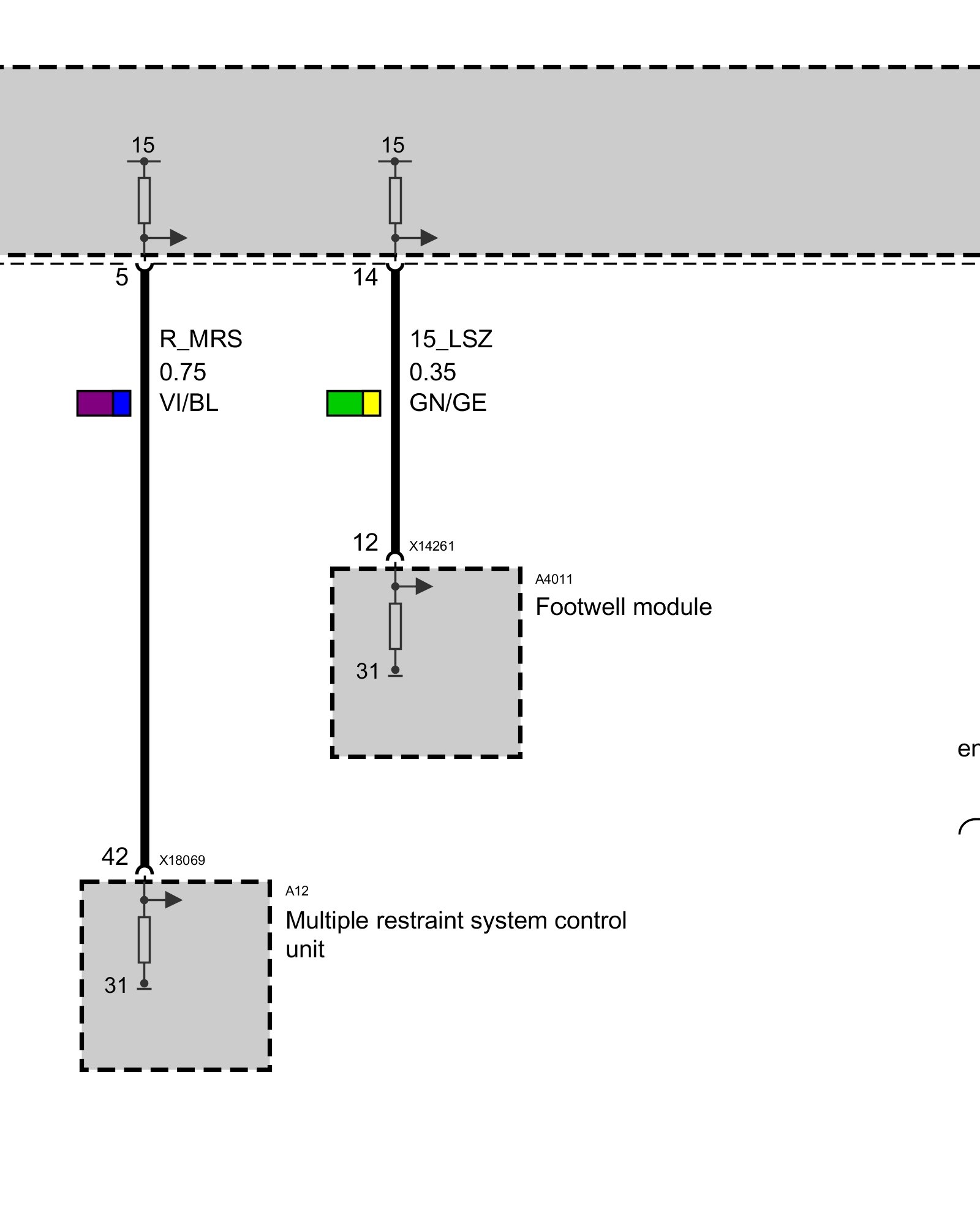

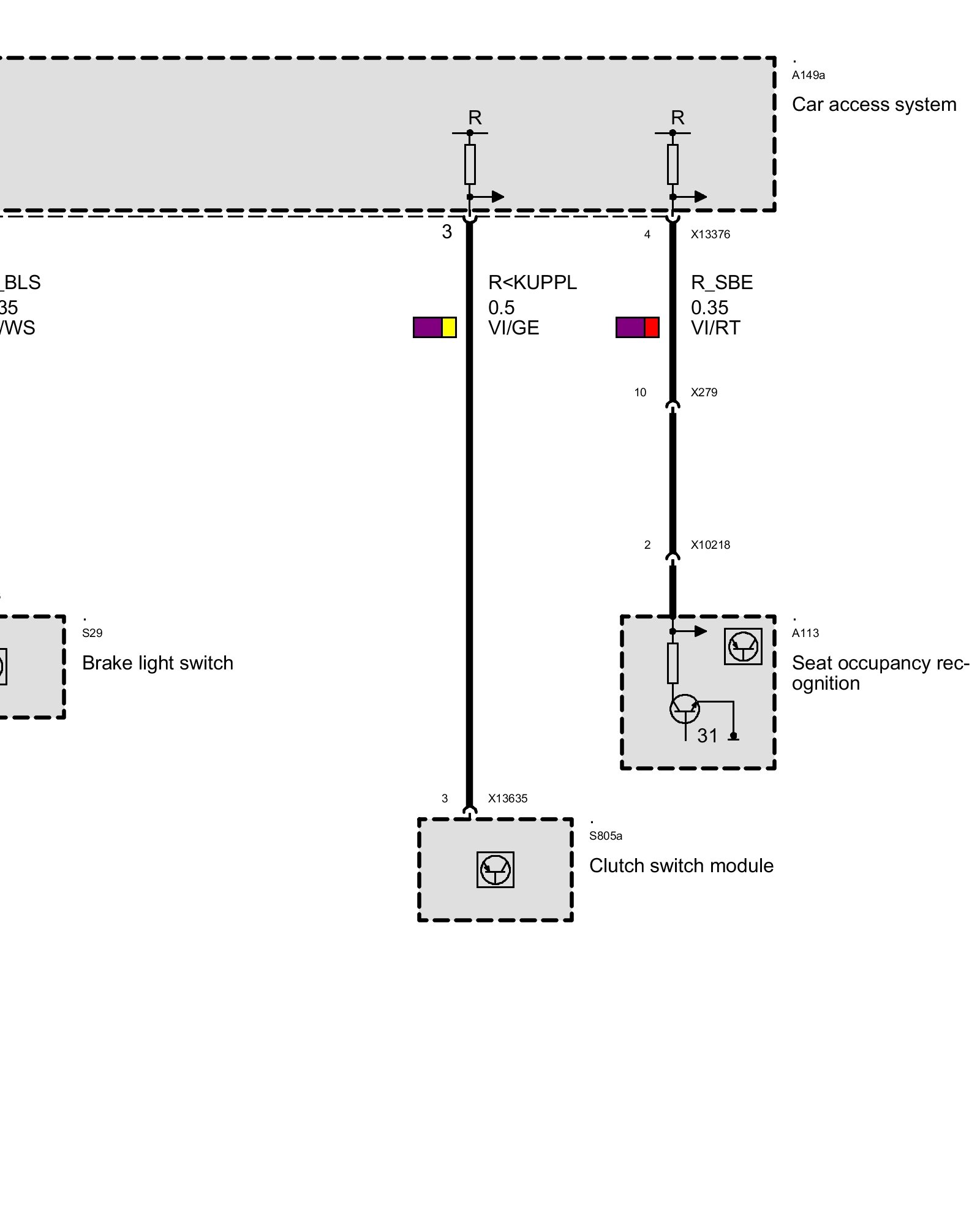

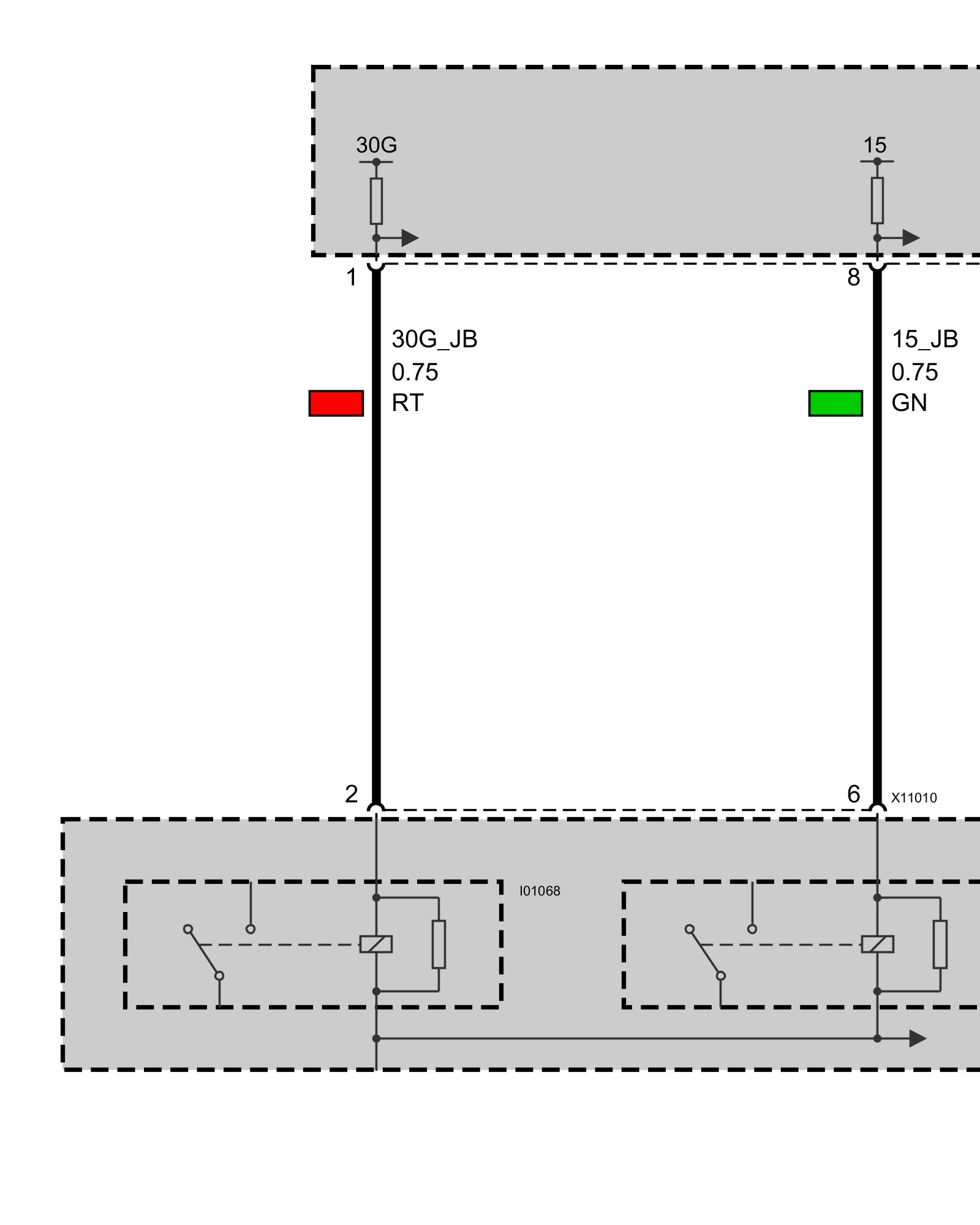

Terminal Control
Terminal Control
Terminal Control

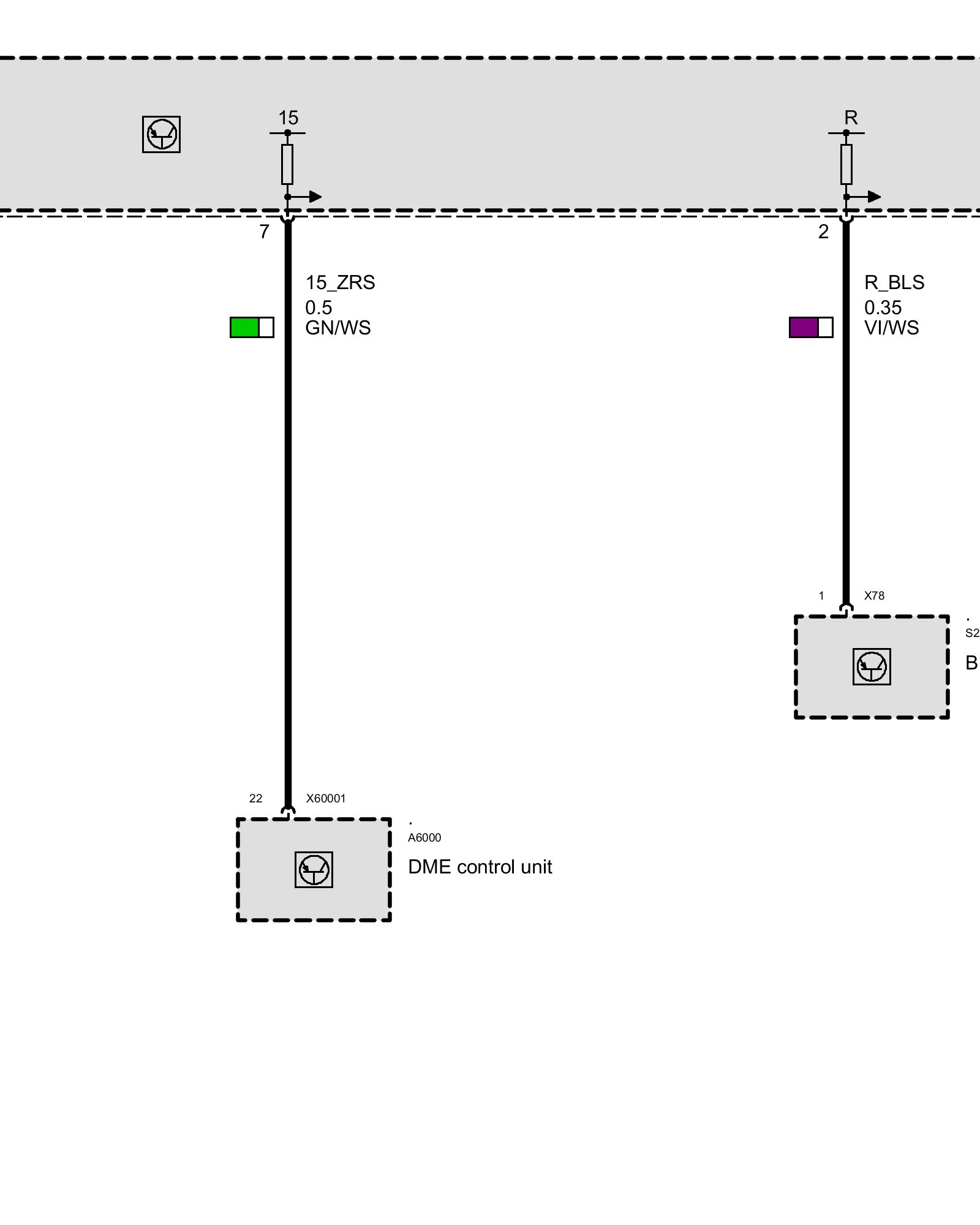

up to 03/07

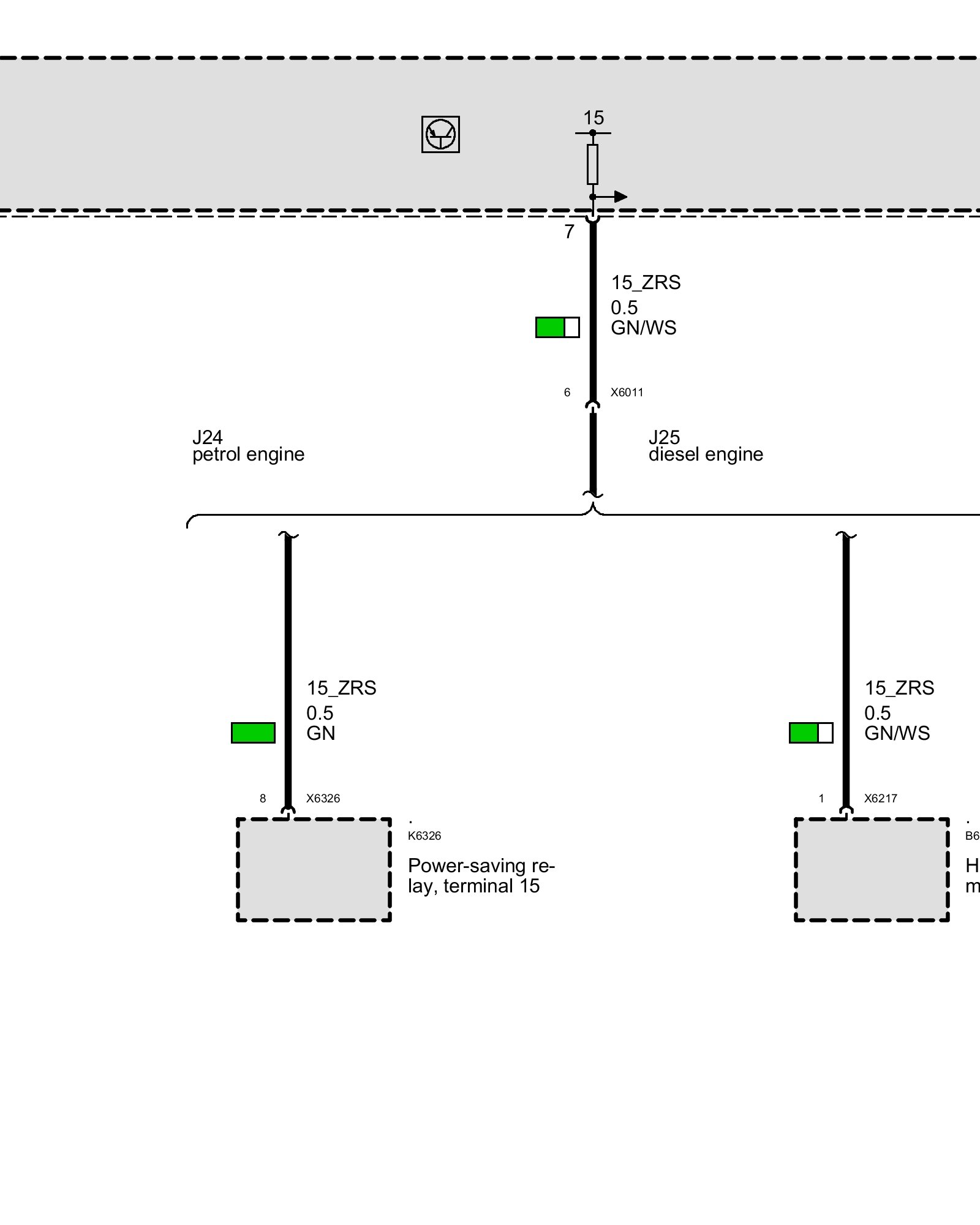

as of 03/07 Up to 09/07

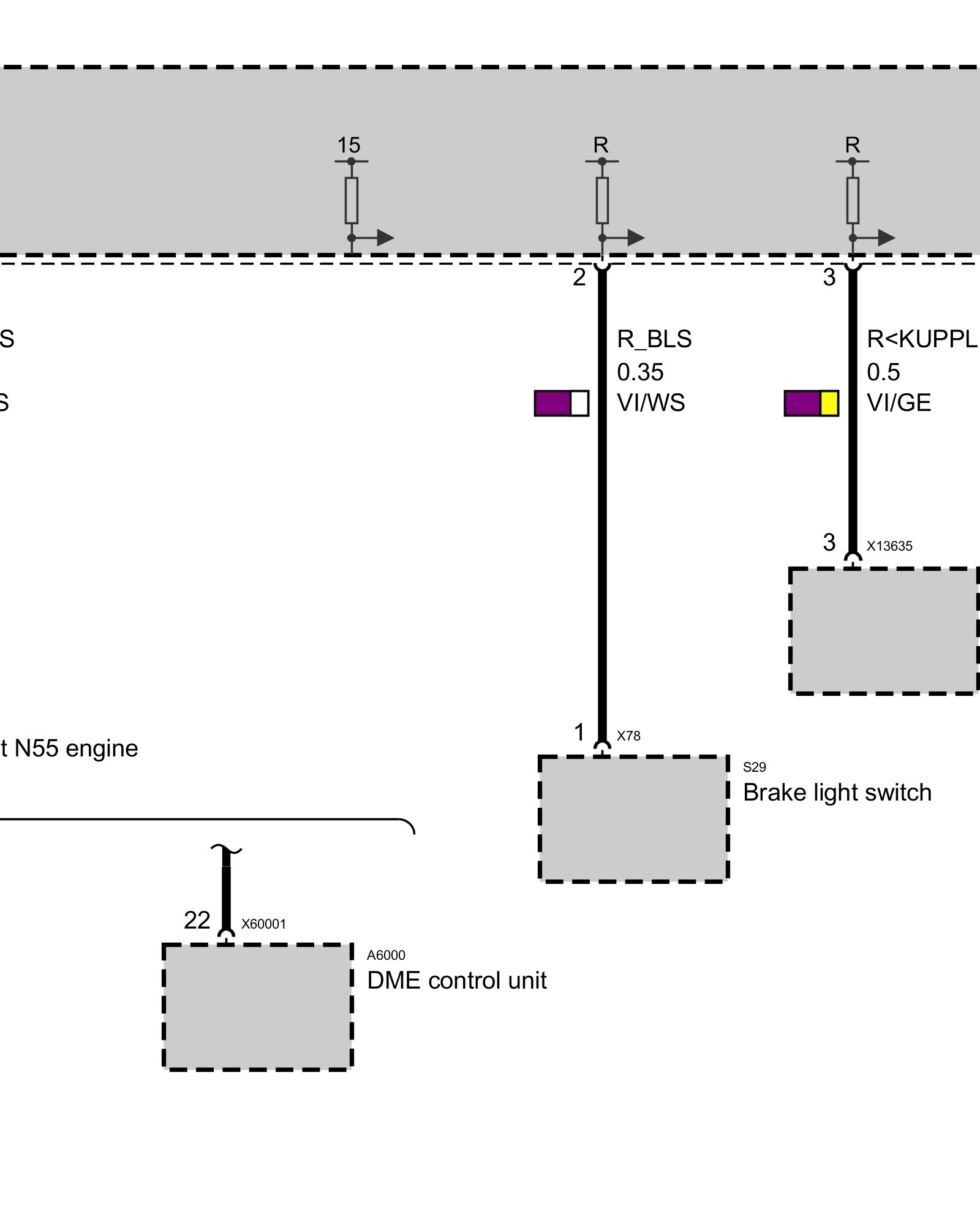

As of 09/07
