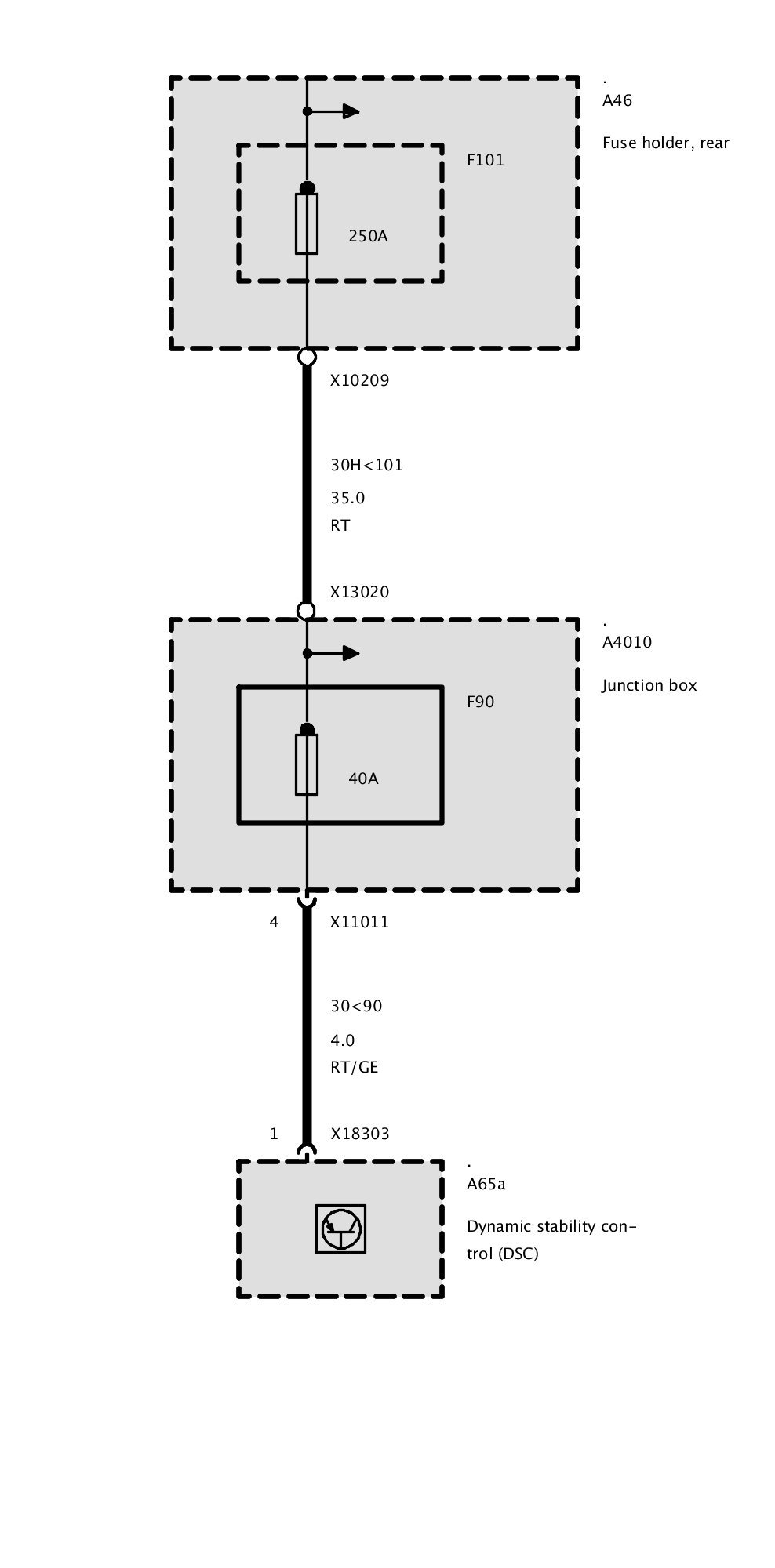

Fuse F90 (As of 09/07 With DSC (Conti) Dynamic Stability Control)
Fuse F90 (As of 09/07 With DSC (Conti) Dynamic Stability Control)
Fuse F90 (As of 09/07 With DSC (Conti) Dynamic Stability Control)
