Home
>>
BMW
>>
2008
>>
135i Convertible (E88) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
F60
>>

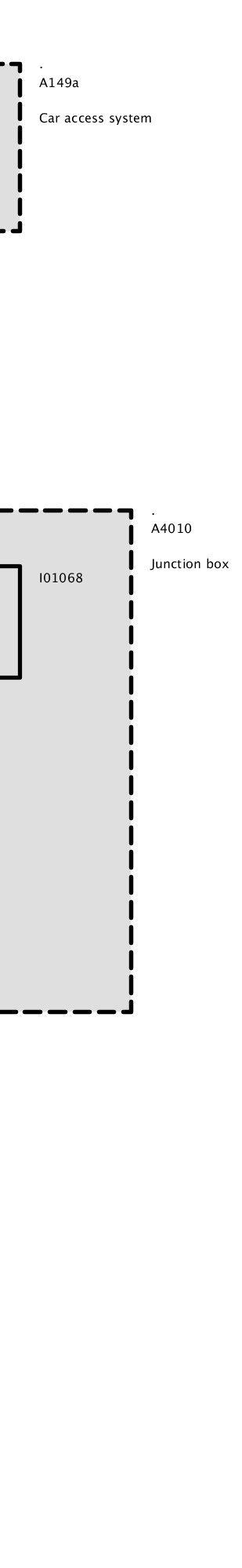

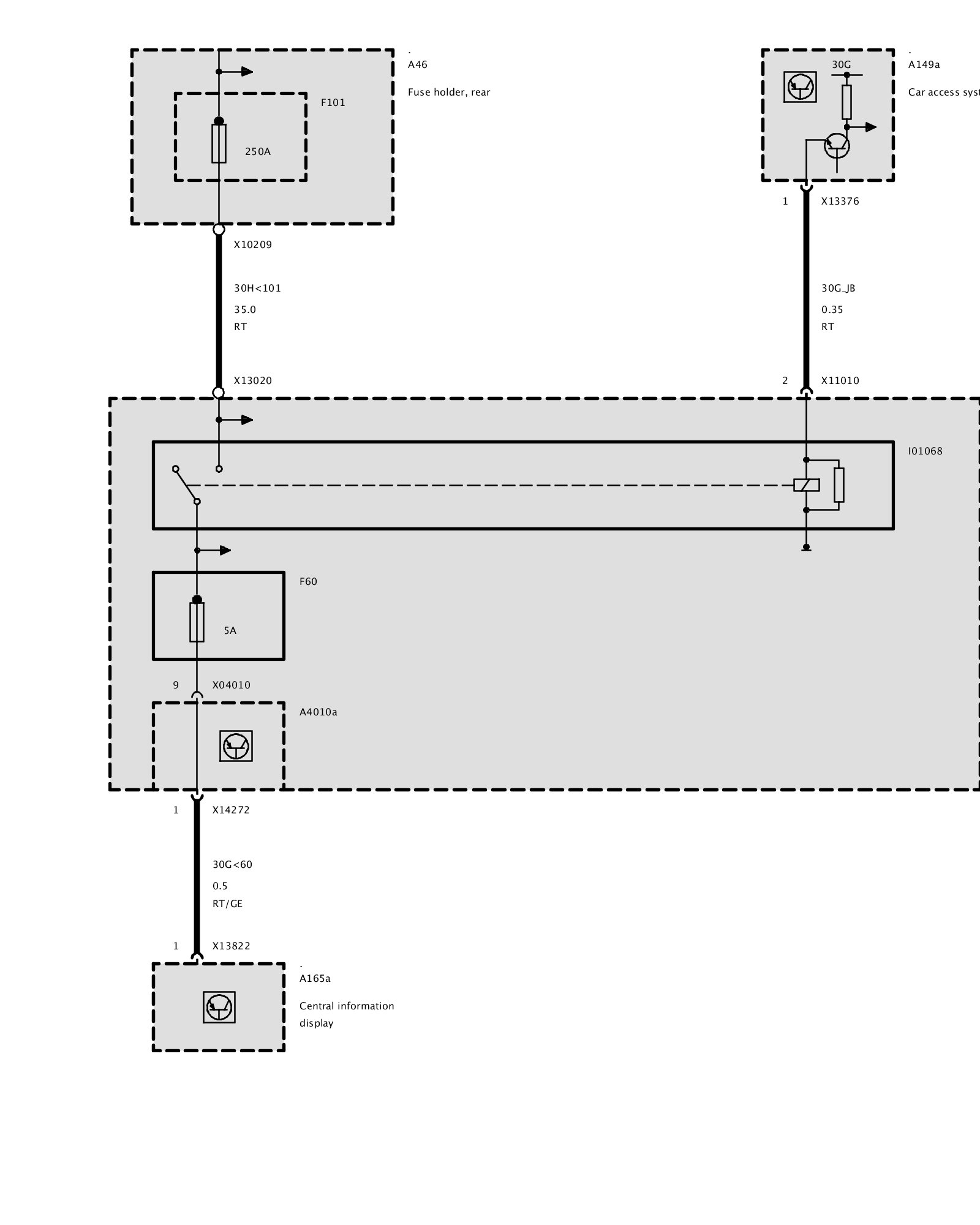

Fuse F60 (As of 03/07 Up to 09/09)
Fuse F60 (As of 03/07 Up to 09/09)
Fuse F60 (As of 03/07 Up to 09/09)
Part 1:
Part 2:
