Home
>>
BMW
>>
2008
>>
135i Convertible (E88) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
F57
>>

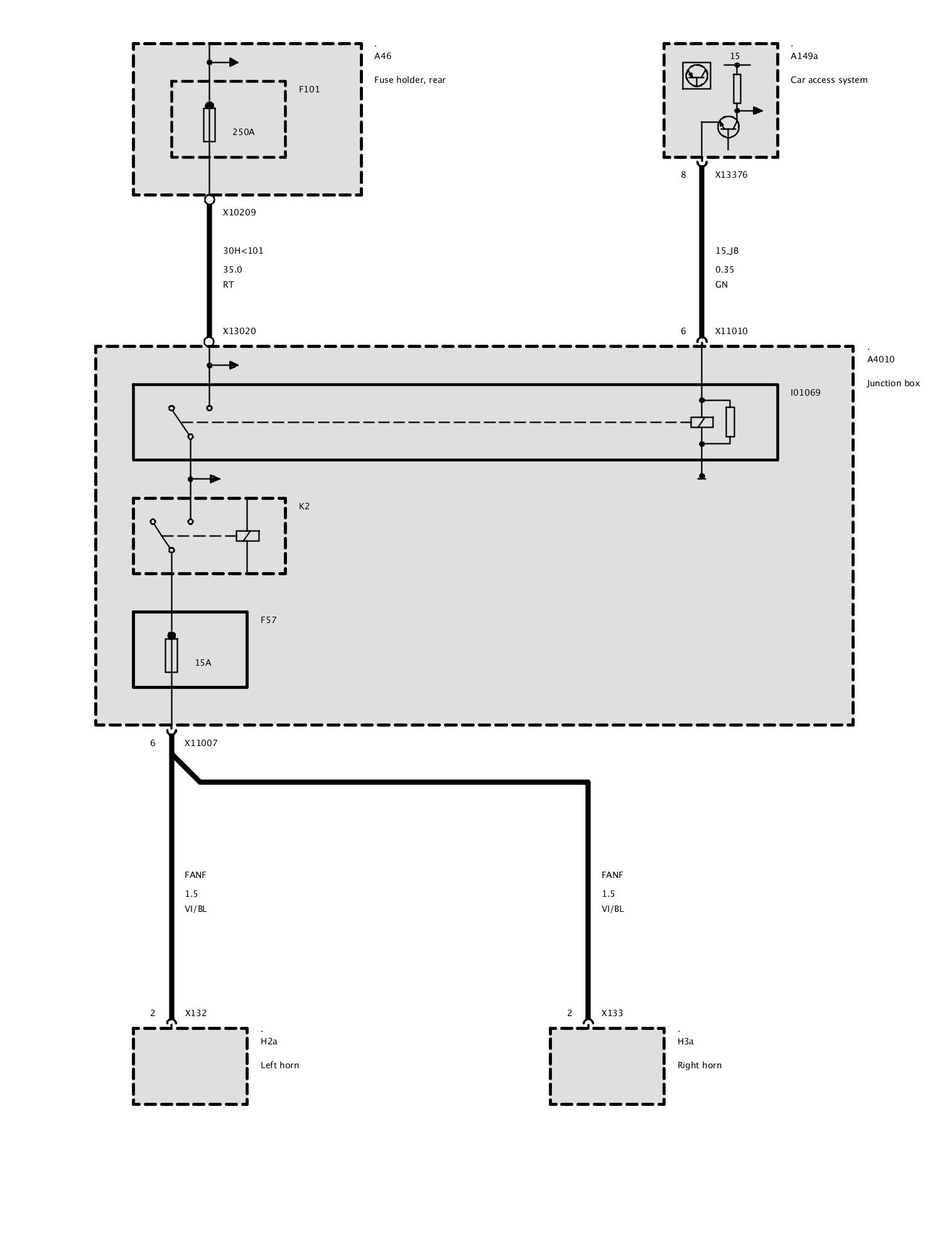

Fuse F57((As of 09/07 Up to 09/08) Without S65 Engine)
Fuse F57((As of 09/07 Up to 09/08) Without S65 Engine)
Fuse F57((As of 09/07 Up to 09/08) Without S65 Engine)
