Home >> BMW >> 2008 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F49 >> Fuse F49 (As of 03/07 Up to 09/07)

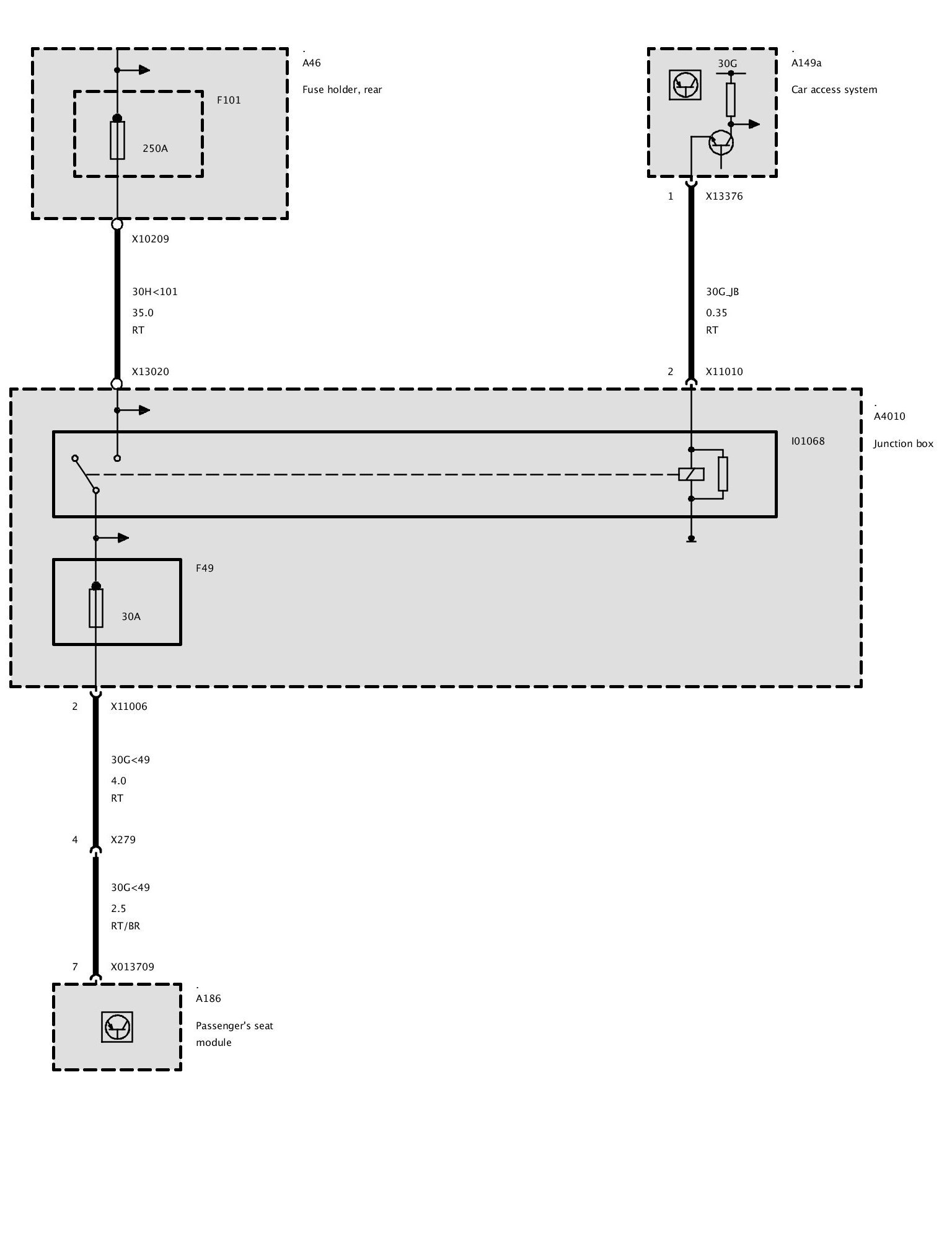

Fuse F49 (As of 03/07 Up to 09/07)



Fuse F49 (Up to 03/07)
